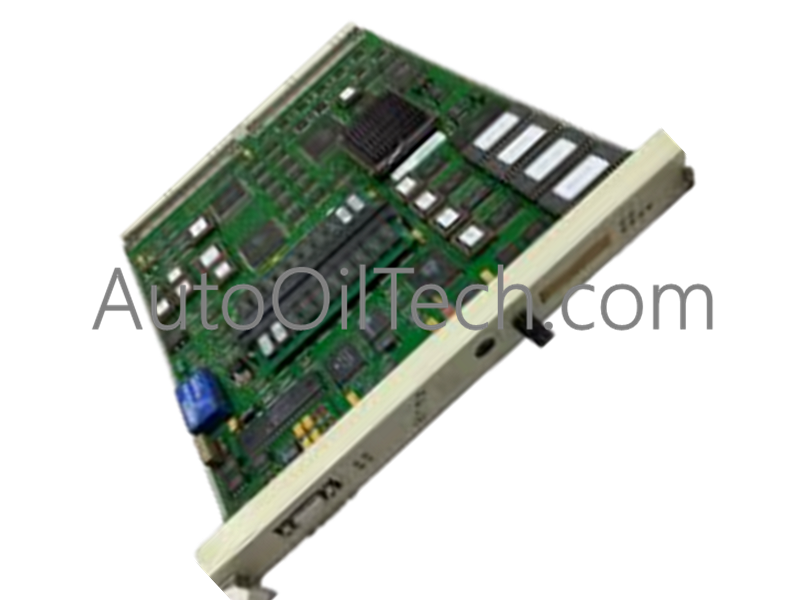

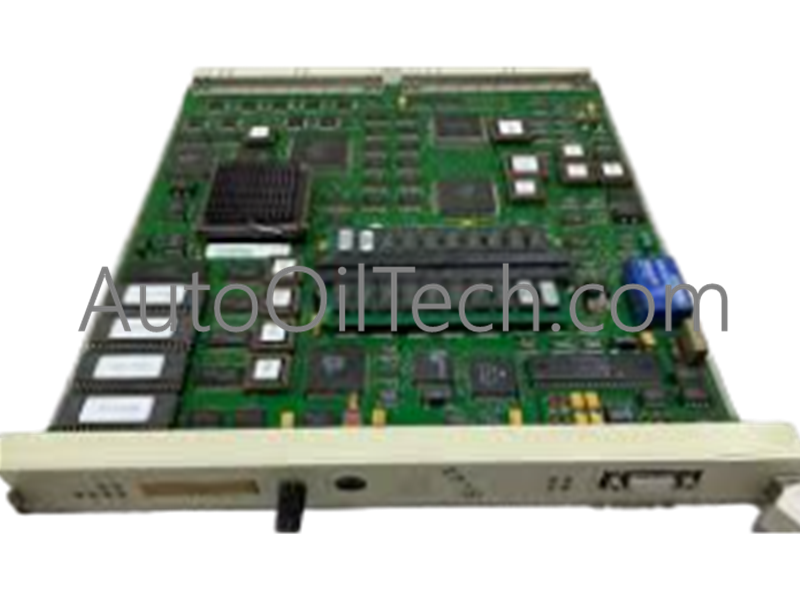

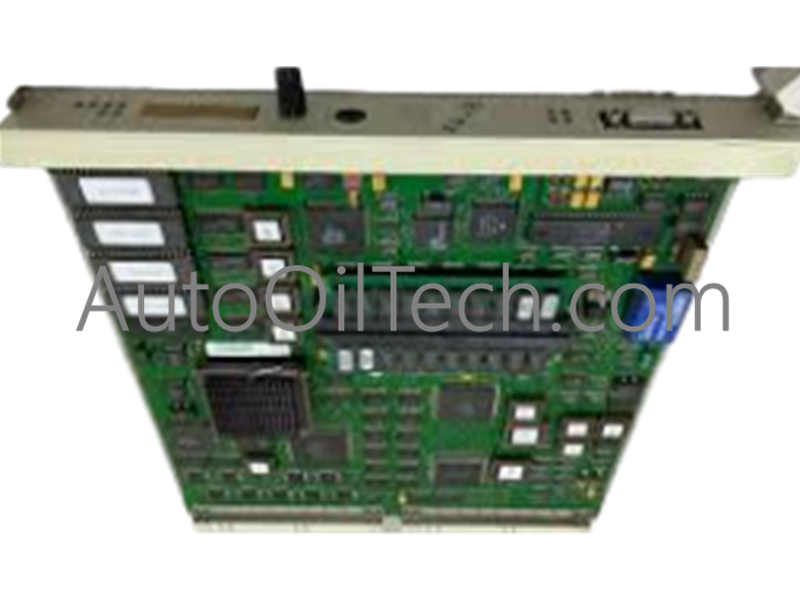

ABB PM511MV16 3BSE019192R1 Marine Processor

Product Overview

The PM511MV16 (3BSE019192R1) is a specialized, marine-certified central processing unit within the ABB Advant Open Control System (OCS) family. This module is the "Marine Version" of the standard PM511V16, specifically engineered to operate in harsh maritime environments where standard electronics would fail. Equipped with a 16 MByte memory capacity via two 3BSC120004R4 SIMM modules, it delivers high-performance logic execution for complex onboard automation.

Technical Specifications

• Manufacturer: ABB

• Type Designation: PM511MV16

• Product ID: 3BSE019192R1

• Alternative Identification: PM511V16 Marine Version

• Product Type: Central Unit (CPU)

• Memory Configuration: 16 MByte (includes 2 x 3BSC120004R4 SIMM modules)

• Certification: Marine Approved (Conformal Coated)

• Environmental Compliance: RoHS Directive 2011/65/EU

• Product Dimensions: 300 mm (H) x 30 mm (W) x 291 mm (D)

• Net Weight: 0.8 kg

• Internal Battery Count: 0

• WEEE Category: 5. Small Equipment (No dimension > 50 cm)

Core Advantages & Marine Readiness

The PM511MV16 is distinguished by its ability to maintain computational integrity under mechanical and environmental stress. Key technical highlights include:

• Environmental Hardening: The conformal coating protects internal circuitry against humidity, thermal cycling, and airborne contaminants common in engine rooms and coastal facilities.

• Deterministic Logic: Optimized for Advant OCS, providing stable execution of critical safety and control loops with high memory throughput.

• High-Density SIMM Support: By utilizing the 3BSC120004R4 memory architecture, the unit ensures stable data retention and fast access times for intensive process variables.

• Vibration Resistance: Mechanical reinforcements in the module frame and connector interface are specifically tailored to satisfy the requirements of marine classification societies.
