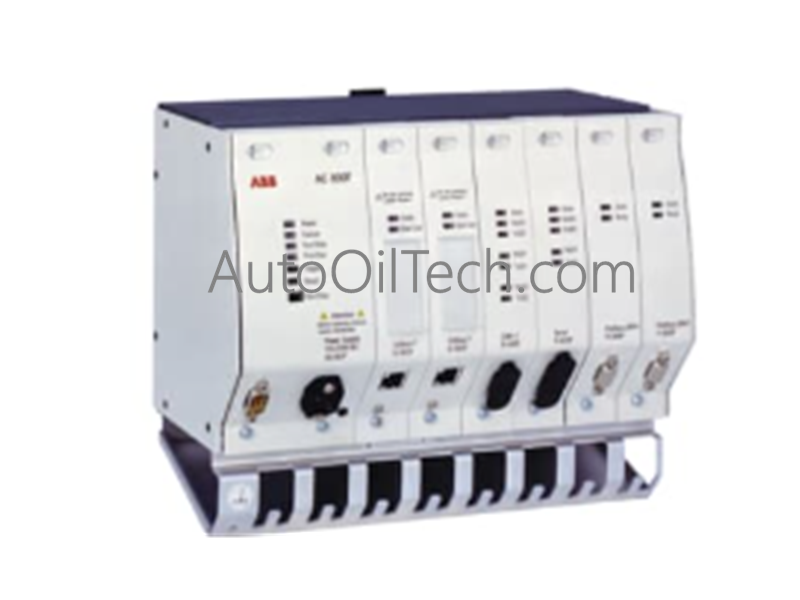

ABB PM 803F Central Unit Base Unit

The ABB PM 803F, also cataloged as the PM 803F Base Unit of AC 800F, operates as a dedicated hardware component for centralized application execution and modular communication routing within industrial automation networks. Configured under HS Code 853710, this central unit consists of an integrated mechanical housing and a primary CPU main board fitted with a specialized RW 855F contact ledge to establish electrical links with adjacent expansion modules.

Hardware Specifications

Industrial Control and Drives Dedicated I/O Density Scaling

The PM 803F manages real-time process equations and decentralized communication frames directly over the system's distribution backplane. To execute compiled ladder, function block, or structured text sequences without diagnostic delays, the internal CPU main board optimizes backplane bus communication velocity across adjacent option slots. This coordination reduces internal transmission jitter during dense multi-channel updates, directly supporting deterministic loop control and expanding modular I/O density scaling options across clustered field racks. Because the central unit ships without an unchangeable pre-loaded kernel, the hardware requires direct runtime OS compilation during system initialization; this mechanism ensures long-term firmware flash compatibility with localized automation servers, allowing system parameters, communication drivers, and diagnostic block maps to flash over the bus lines without causing signal transit noise or communication timeouts.

Frequently Asked Questions

Q: How does the omission of an embedded operating system impact the initial deployment of the PM 803F?

A: The PM 803F is delivered without an operational kernel on its internal flash memory. The specific runtime operating system must be pushed to the CPU main board from the engineering station during primary software deployment, establishing the core logic paths necessary to maintain steady backplane bus communication velocity.

Q: What physical problem occurs if the engineering system runs a software variant older than Version 7.1SP2a?

A: Attempting to provision the module with software versions below 7.1SP2a breaks the hardware initialization handshake. The system firmware fails to recognize the RW 855F contact ledge configuration, preventing the system from loading the runtime operating system and halting bus scanning entirely.
