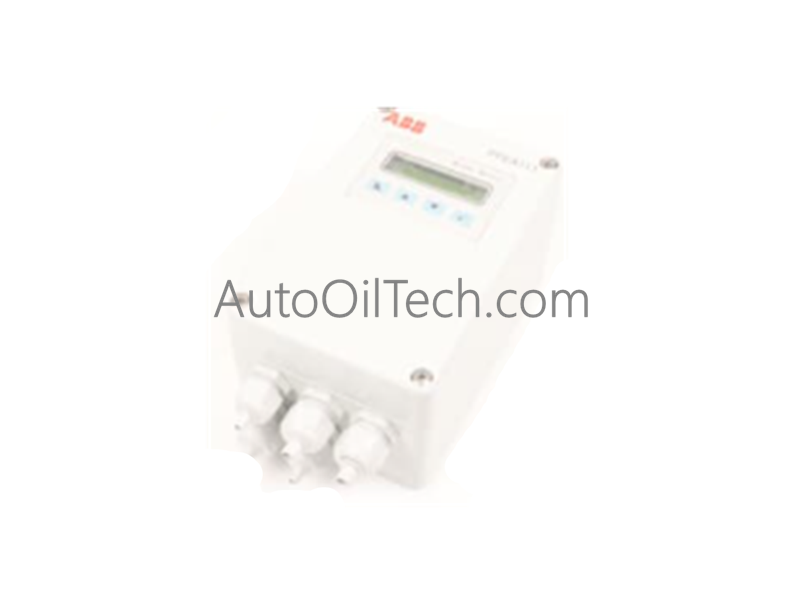

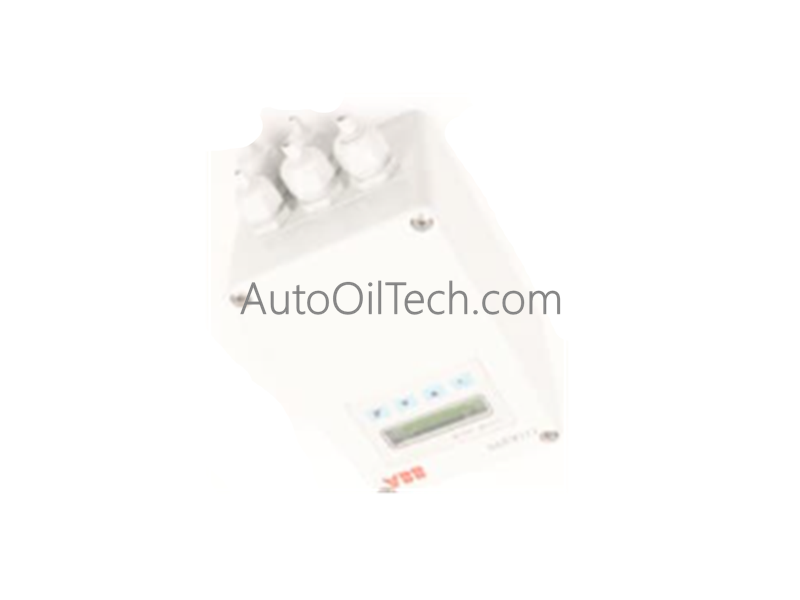

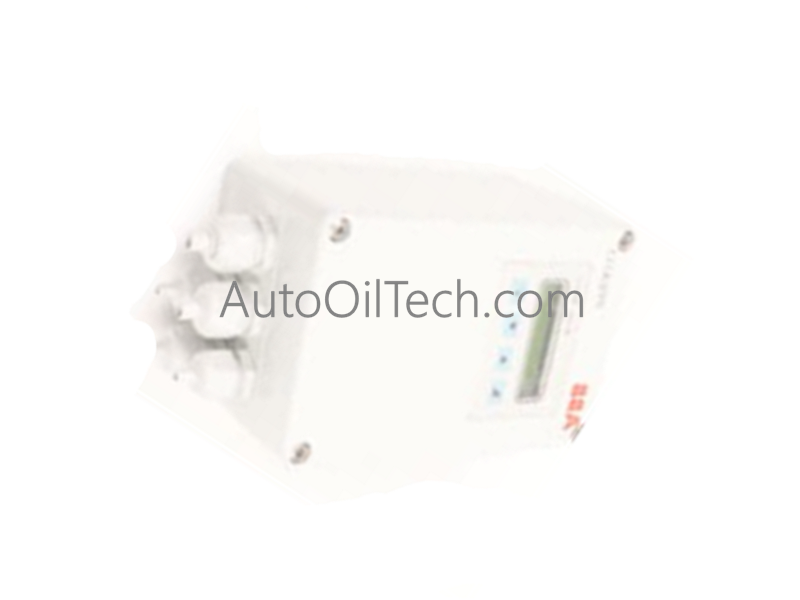

ABB PFEA113-65 Tension Electronics Module

The ABB PFEA113-65, also cataloged as the PFEA113-65 Tension Electronics Unit, operates as a dedicated hardware component for web tension measurement, load cell signal processing, and fieldbus communication within high-accuracy industrial web handling and rolling mill platforms.

Hardware Specifications

Industrial Control and Drives Characteristics

The PFEA113-65 architecture processes raw analog microvolt strain-gauge signaling lines designed to track system variables across backplane bus communication velocity Licences. By converting low-level inputs from up to four synchronized load cells, the internal signal conditioning circuitry calculates and updates total web tension summation and left/right differential profiles without introducing data conversion loop lag.

The internal physical communication layers route real-time diagnostic parameters and tension variables over Profinet / EtherNet/IP deterministic networks via external coupling nodes or directly through the onboard native Profibus-DP network interface to maintain continuous connection tracking across the master controller rack. The robust physical enclosure handles severe physical demands through its heavy-gauge IP65 housing, which accommodates independent I/O density scaling routines by organizing 6 configurable analog outputs alongside localized binary tracks. This electrical execution baseline ensures that transient tension spikes process with sub-millisecond predictability while maintaining complete software configuration firmware flash compatibility across standard ABB tension engineering platforms and calibration routines.

Frequently Asked Questions

Q: How does the integrated display assist in diagnosing mechanical web misalignment or roller binding?

A: The display is programmed to toggle between the combined total tension (Sum), the operational tension delta between the sides (Diff), and individual raw values from each connected load cell. A sharp, unexpected deviation in the Diff register or an asymmetrical individual channel reading indicates mechanical side-to-side web tracking errors or bearing wear.

Q: What purpose does the built-in insulation amplifier serve on the first analog output (AO1)?

A: The insulation amplifier provides galvanic electrical isolation on the AO1 voltage loop. This circuit separates the sensitive load cell measuring electronics from downstream drives or recorders, preventing ground-loop currents and high-voltage common-mode noise from corrupting the core tension control algorithms.
