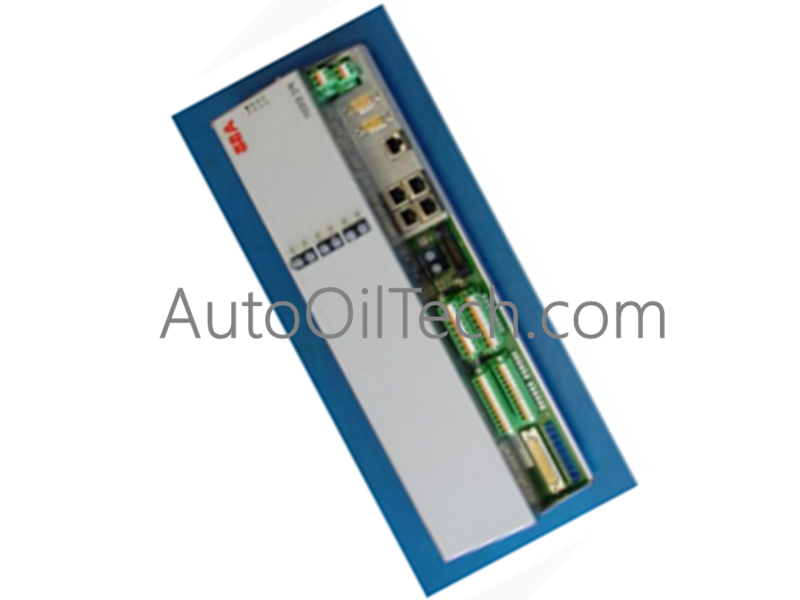

ABB PC D231B101 3BHE025541R0101 Control Interface Module

Product Overview

The ABB PC D231B101 (3BHE025541R0101) is a specialized control and communication interface module belonging to the PEC80 (Power Electronic Controller) series. Designated as the PEC80-CCI, this module acts as a high-speed communication hub within ABB’s advanced power electronics systems.

Technical Specifications

• Manufacturer: ABB

• Model Designation: PC D231B101 / PEC80-CCI

• Part Number: 3BHE025541R0101

• Product Net Dimensions: 373 mm (H) x 73.5 mm (W) x 142 mm (D)

• Product Net Weight: 1.43 kg

• Country of Origin: Switzerland (CH)

• Customs Tariff Number: 85371092

• Stocked Location: Baden, Switzerland

• Condition: New (Part Type: New)

• Minimum Order Quantity: 1 piece

• Selling Unit: Piece

Features

• High-Speed PEC80 Processing: Designed to support the Power Electronic Controller 80 platform, providing the millisecond-level processing speeds necessary for real-time power semiconductor regulation.

• Integrated Communication Interface (CCI): The "CCI" functionality allows the module to serve as a central data bridge, managing communication between the main controller and peripheral gate units or I/O modules.

• Industrial-Grade Stability: Engineered to function reliably in environments with high electromagnetic interference (EMI), such as power generation facilities and large-scale smelting plants.

• Precision Timing and Synchronization: Ensures that gate firing pulses across multi-phase power stacks are perfectly timed to minimize energy loss and harmonic distortion.

• Compact Vertical Form Factor: The slim-line design (373 mm height) is optimized for space-efficient integration into industrial control cabinets and rack assemblies.

• Enhanced Diagnostics: Features built-in hardware interfaces for real-time system monitoring, allowing for rapid detection of electrical faults and system status updates.
