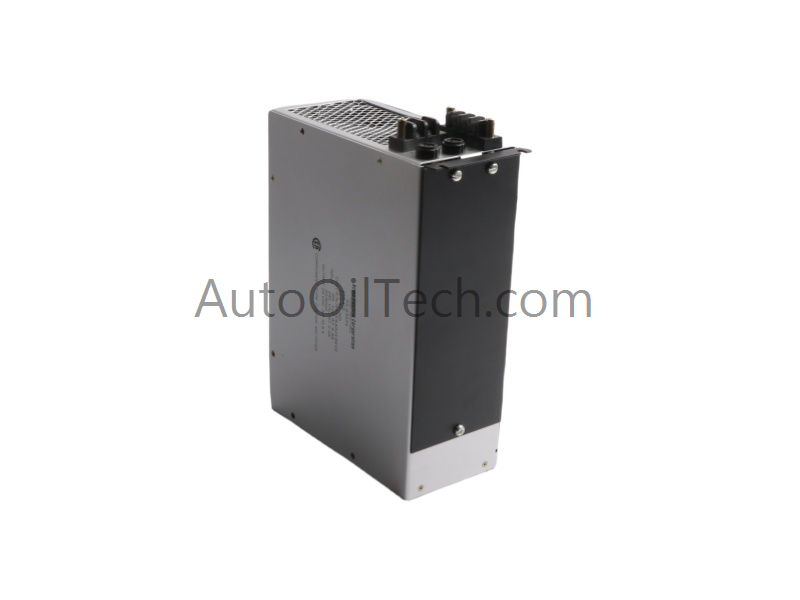

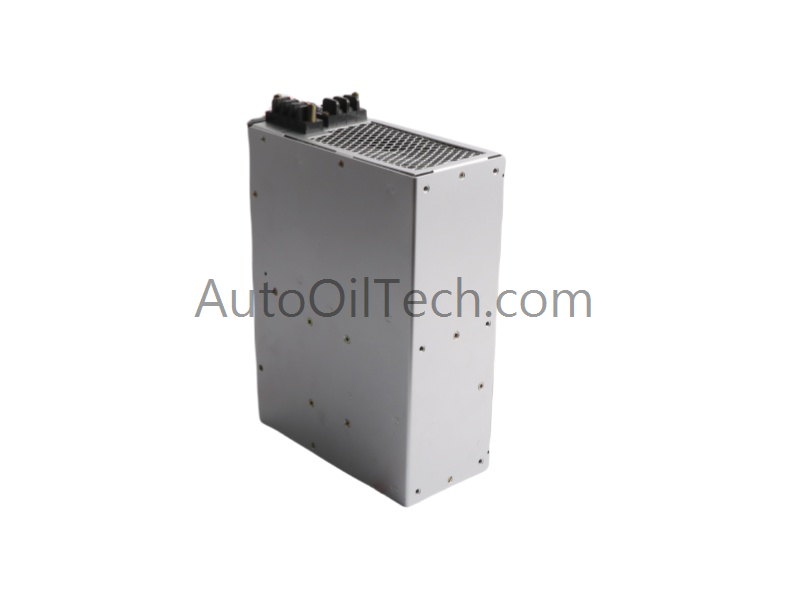

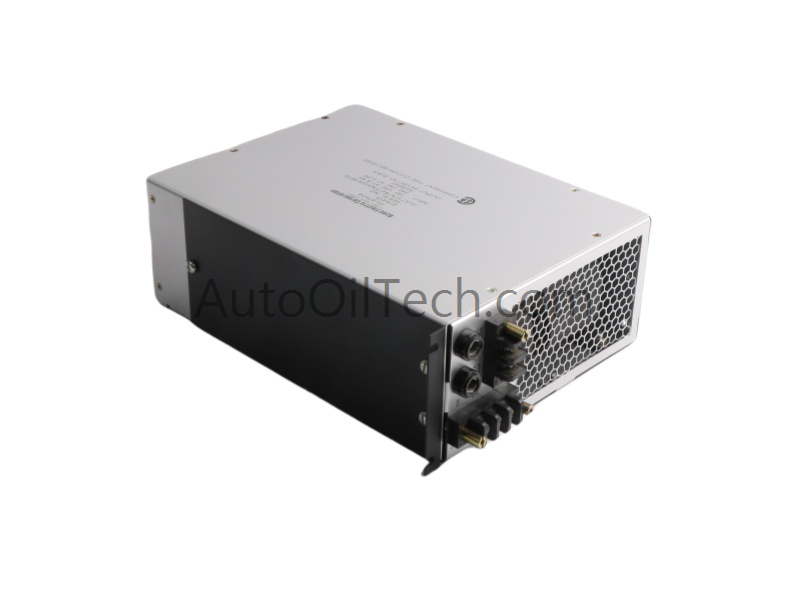

The ABB NPSI03, also cataloged as the NPSI03 Power Supply, operates as a dedicated hardware component for industrial power distribution and conversion within ABB control systems.
Hardware Specifications
Parameter
Specification
Model
NPSI03
Brand
ABB
Origin
Industrial Standard
Weight
24.05 lbs
Dimensions
Not specified in technical documentation
Operating Temp
Not specified in technical documentation
Power Supply Input
120 / 240 V AC, 50 / 60 Hz
Power Supply Output
24 V DC
Intrinsic Safety and Power Distribution Limits
The NPSI03 unit is engineered to provide stable power conversion while maintaining strict surge voltage protection limits across distribution loops. It incorporates robust DIN-rail mounting stability features or secure chassis anchoring to withstand high-vibration industrial environments. The internal circuitry is optimized to suppress electrical noise and manage transient spikes, ensuring reliable voltage regulation for connected automation hardware.
Frequently Asked Questions (FAQ)
Q: What are the input voltage and frequency ratings for the NPSI03 power supply?
A: The module accepts an input voltage of 120 / 240 V AC operating at a frequency of 50 / 60 Hz.
Q: What is the nominal DC output voltage delivered by this power supply unit?
A: The unit provides a regulated output of 24 V DC to power associated system components and field loops.
Field Installation Guidelines
Verify that the incoming AC supply voltage matches the 120 / 240 V AC rating before energizing the power supply unit.
Secure all terminal block connections tightly to maintain low-resistance current paths and prevent localized heating.
Ensure proper chassis and ground terminal bonding to satisfy surge voltage protection limits and electrical safety standards.
Maintain adequate spatial clearance around the enclosure housing to allow unobstructed convective cooling and heat dissipation.
