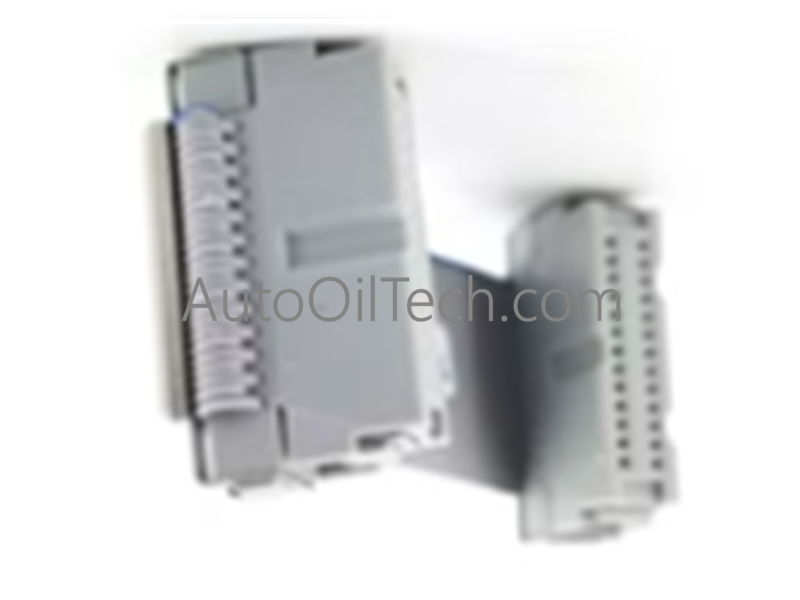

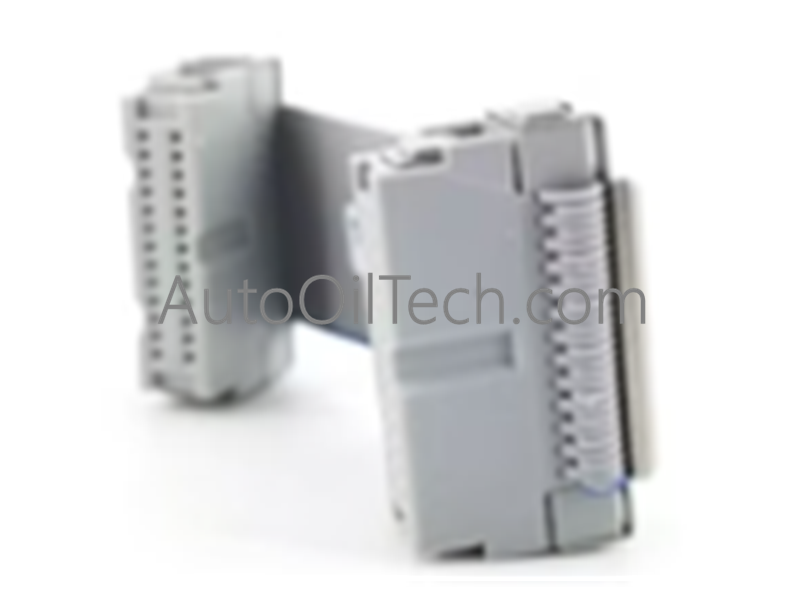

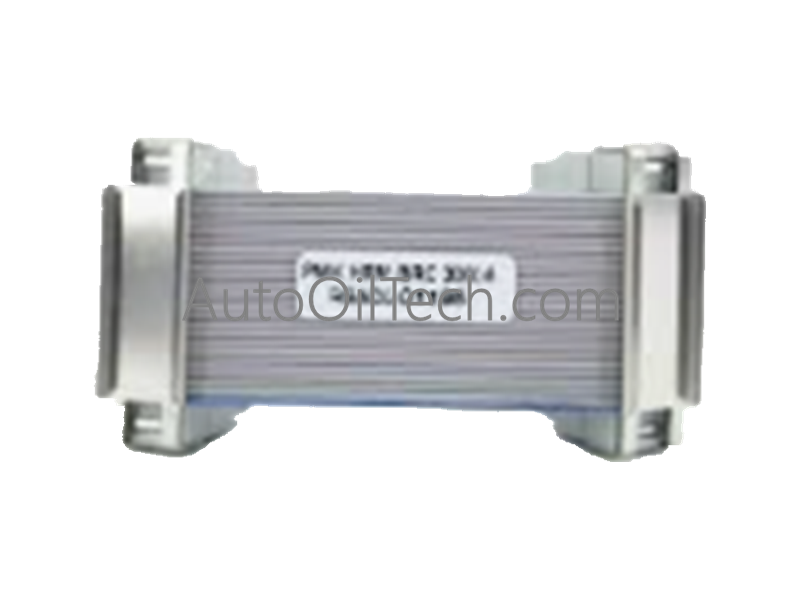

The ABB NKEB01, also cataloged as the NKEB01 Prefabricated Cable, operates as a dedicated hardware component for high-speed data transmission and multi-chassis backplane bridging within MMU (Module Management Unit) subrack configurations.
Hardware Specifications
Parameter
Specification
Model
NKEB01
Brand
ABB
Origin
Romania
Product Type
Prefabricated_Cable
Functional Core Classification
Expander Bus Interconnect / Subrack Bridge
Application Context
Connects Expander Bus links between multiple MMUs
Connector Profile
Heavy-duty, low-attenuation multi-pin bus connectors
Harmonized System (HS) Code
854442 (Insulated electric conductors fitted with connectors)
Product Net Width
38.1 mm
Product Net Height
45.72 mm
Product Net Depth / Length
15.24 mm
Environmental Compliance
Exempt from WEEE scope / No SVHC present
Backplane Bus Communication Velocity and Network Determinism
The NKEB01 links separate MMU chassis to extend the processing backplane across multiple physical rack sections. To maintain high backplane bus communication velocity across the expanded network topology, this prefabricated cable uses precision-twisted conductor pairs with matched impedance tolerances. This configuration minimizes signal propagation delay and attenuation, ensuring high network determinism during concurrent data polling. The integrated, low-resistance pin connectors establish solid physical contacts that block high-frequency common-mode noise fields from distorting the digital data frames. This shielding maintains stable data synchronization rates and prevents data packet dropouts during complex automated diagnostic routines.
