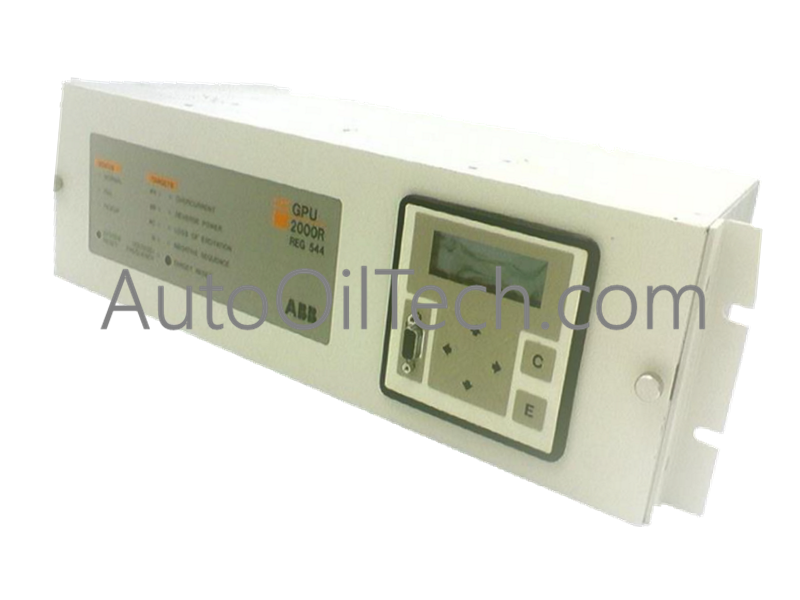

ABB GPU2000R REG544 Generator Protection System Unit

Product Overview

The ABB GPU2000R, also categorized under the REG544 series, is a comprehensive Generator Protection System Unit designed for the industrial control and power generation sectors. It functions as a multi-functional digital relay, providing critical monitoring and protection for generators against electrical faults and abnormal operating conditions.

Technical Specifications

• Manufacturer: ABB

• Part Number: GPU-2000R / REG544

• Protection Type: Generator Protection System

• Current Settings:

• Phase Protection: 2.0 - 8.0 Amps

• Ground Protection: 2.0 - 8.0 Amps

• Control Voltage: 38 - 58 V DC

• Rated Frequency: 60 Hz

• Weight: 23.00 lbs (Approx. 10.43 kg)

• Category: Transmission & Distribution Relays / Ground Fault Relays

Functional Protection Features

The GPU2000R integrates several critical protection functions into a single unit to safeguard the generator stator and rotor:

• Overcurrent Protection: Monitors phase currents to prevent damage from short circuits or sustained overloads.

• Ground Fault Sensing: Highly sensitive detection of insulation failure between the windings and the machine frame (ground).

• Industrial Control Design: Specifically built to withstand the electromagnetic interference (EMI) and vibration found in industrial engine rooms and power plants.

• High-Mass Construction: The 23-lb weight reflects its extensive internal shielding and heavy-duty transformer components, ensuring thermal stability and measurement accuracy during fault events.
