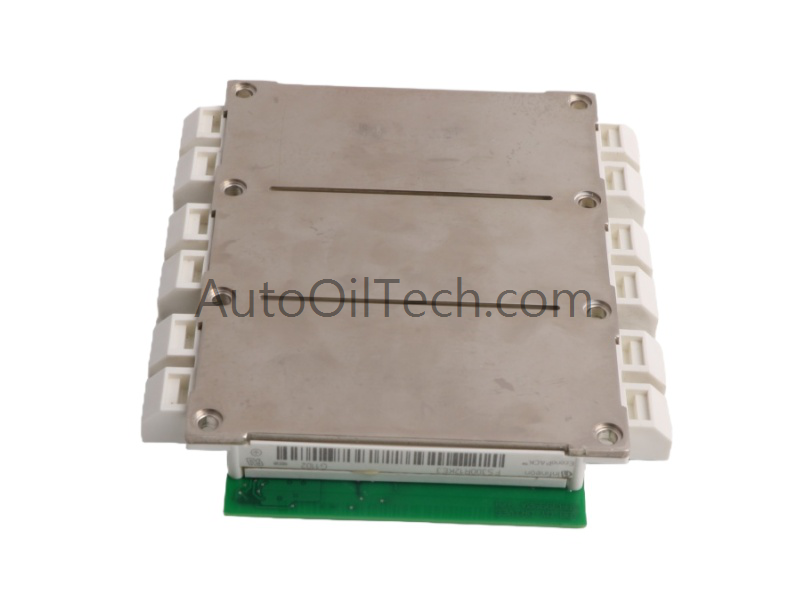

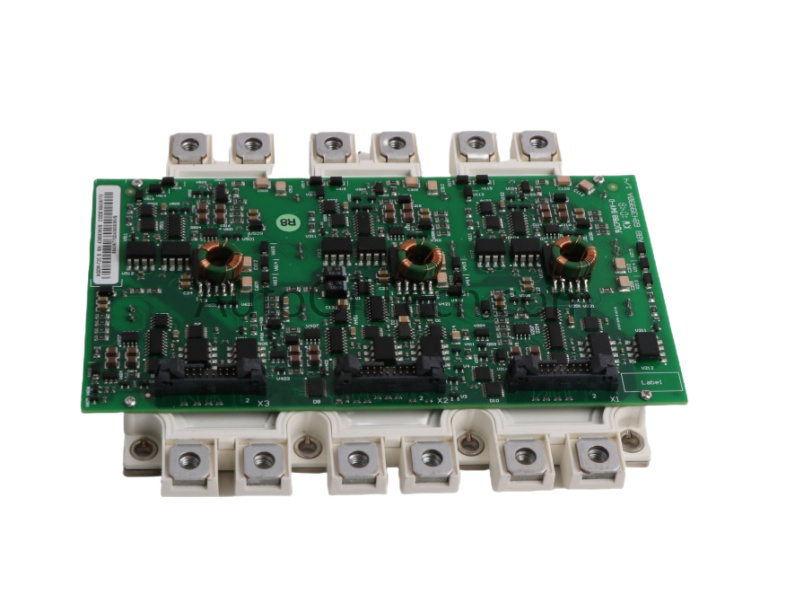

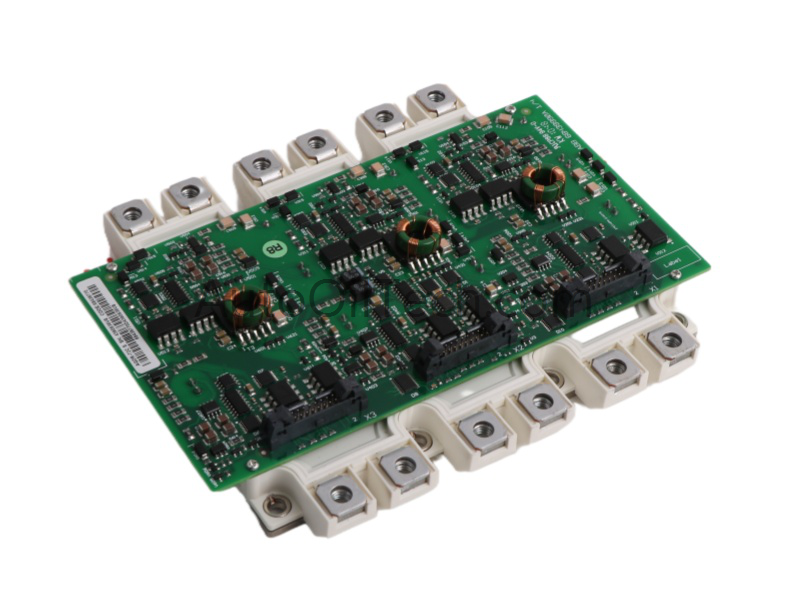

The FS300R12KE3/AGDR-72C IGBT Module Kit from ABB integrates a high-power FS300R12KE3 IGBT with the AGDR-72C gate driver, delivering efficient switching and thermal stability for ACS800 drive systems. Designed for high-current, high-voltage applications, it ensures reliable power conversion in demanding industrial environments.
Technical Specifications
Parameter
Value
Model Number
FS300R12KE3/AGDR-72C
Product Series
ABB
Manufacturer
ABB
Module Type
IGBT Module Kit
Rated Current
300A
Collector-Emitter Voltage
1200V
Gate Driver
Integrated AGDR-72C
Protection Features
Short-circuit, UVLO, temp monitor
Thermal Interface
TIM foil included
Mounting Options
Press-fit and screw-type
Dimensions
18.5 × 8.5 × 30.5 cm
Weight
1.08 kg
HS Code
8537101190
System Compatibility
DCS / ACS800
Communication Service
Ethernet router
Product Origin
Sweden
Condition
Brand New
MOQ
1
Lead Time
In Stock
Lifecycle Status
Active
Applications & Compatibility
The FS300R12KE3/AGDR-72C kit is ideal for motor drives, power supplies, and renewable energy systems requiring robust power switching. Its matched IGBT and driver pairing simplifies installation and ensures optimal performance. Fully compatible with ABB ACS800 inverters, it enhances system efficiency, reduces thermal stress, and supports long-term reliability in high-load industrial operations.
