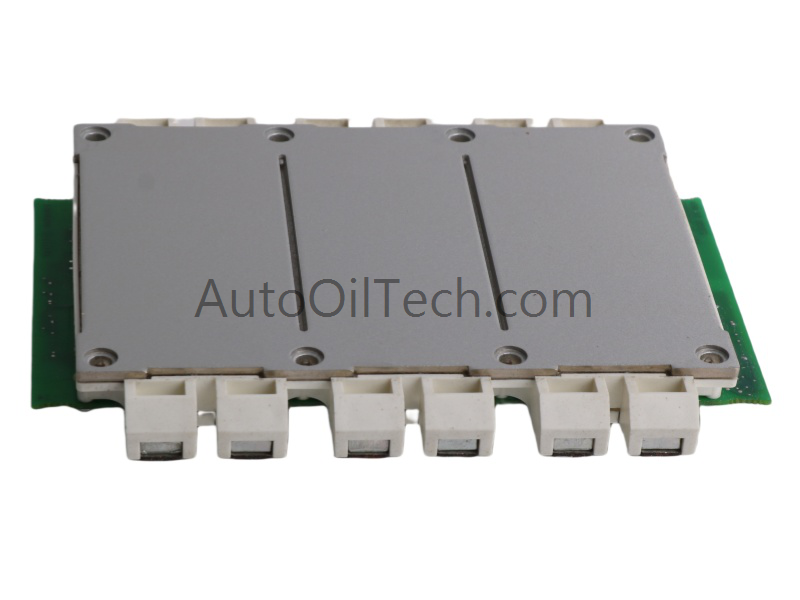

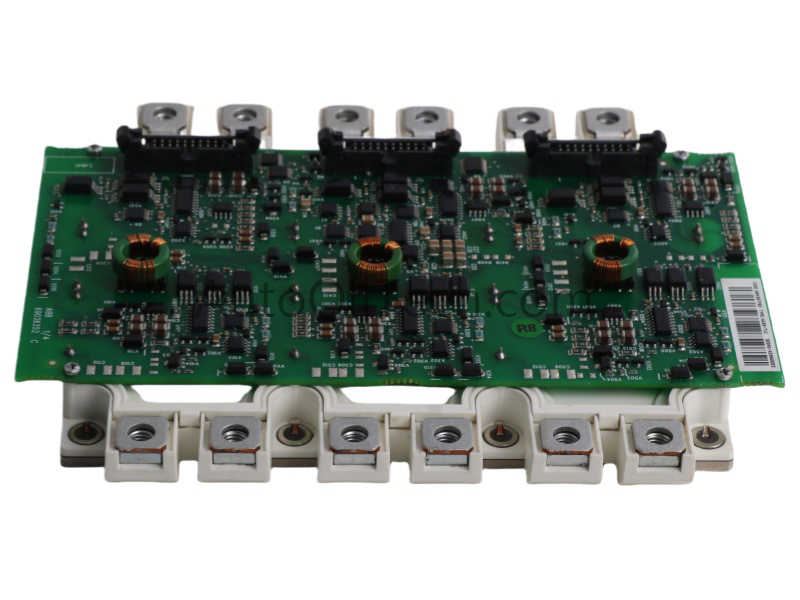

The ABB FS300R12KE3/AGDR-62C IGBT Module is a robust power semiconductor solution designed for industrial drives and power conversion systems. With a 1200V voltage rating and 300A nominal collector current, it ensures reliable performance in demanding motor control and energy applications.
Technical Specifications
Parameter
Value
Model Number
FS300R12KE3/AGDR-62C
Manufacturer
ABB
Module Type
IGBT Module
System Compatibility
DCS / ABB Drives / Inverters
Voltage Rating
1200 V
Current Rating
300 A
Thermal Resistance
IGBT: 0.08 K/W, Diode: 0.10 K/W
Gate Threshold Voltage
6 V
Recommended Gate Resistance
1–10 Ω
Junction Temperature
Max 150°C
Storage Temperature
-40°C to +125°C
Thermal Technology
TIM foil (enhanced conductivity)
Dimensions
18.5 × 15 × 3 cm
Weight
1 kg
HS Code
8537101190
Product Origin
Sweden
Condition
Brand New
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active
Communication Service
Ethernet router
Functional Description
The ABB FS300R12KE3/AGDR-62C integrates advanced thermal management with TIM foil technology, ensuring efficient heat dissipation and durability in cyclic applications. Its low thermal resistance and optimized switching performance make it suitable for high‑power conversion systems.
