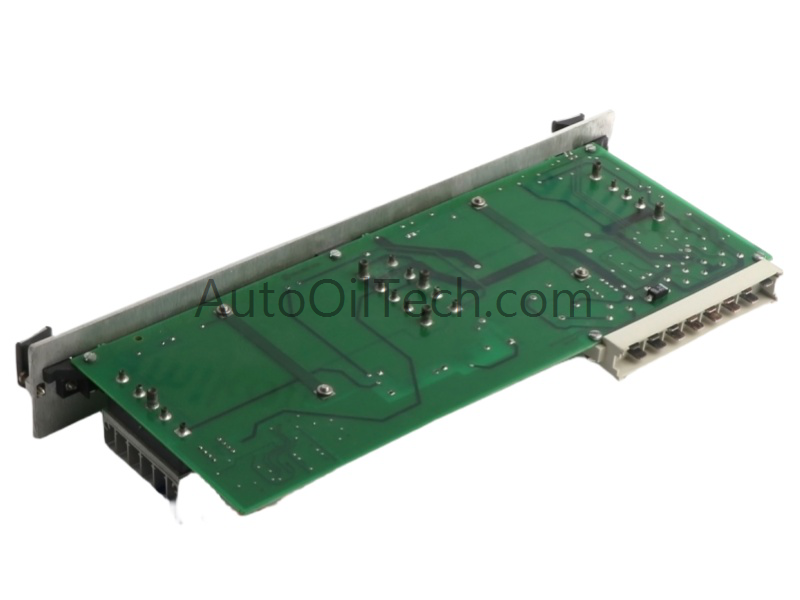

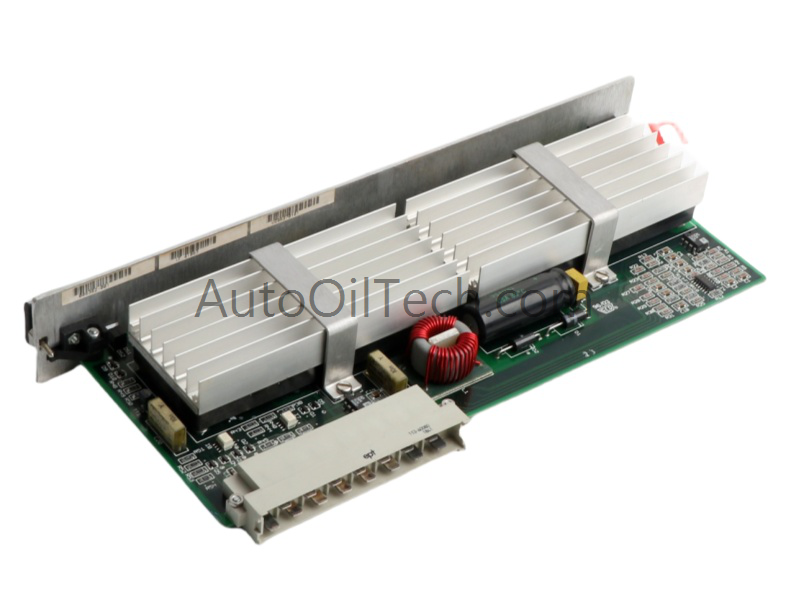

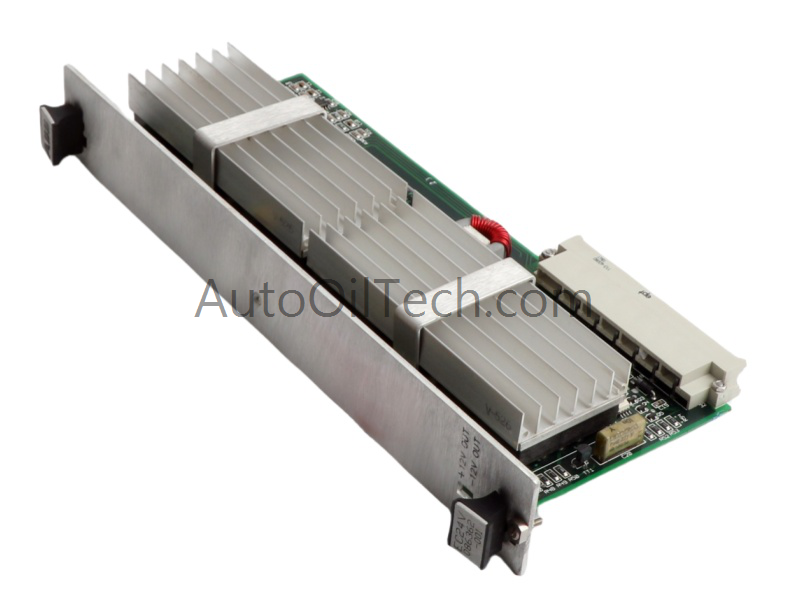

The ABB EC24V 086362-001 Bulk DC Power Supply Module delivers stable 24V DC output with ±10% tolerance. Its compact design and robust isolation make it ideal for industrial automation systems requiring reliable power distribution.
Technical Specifications
Parameter
Value
Model Number
EC24V 086362-001
Manufacturer
ABB
Module Type
Bulk DC Power Supply Module
System Compatibility
DCS / ABB Control Systems
Output Voltage
24 V DC ±10%
Isolation
500 V AC (I/O to logic)
Processor
32‑bit DSP
Flash Memory
4 MB
Digital Inputs
6 × 24 V DC
Analog Inputs
2 configurable (±10 V / 0–20 mA)
Power Consumption
≤15 W
Operating Temperature
-15°C to +50°C
Humidity Tolerance
5–95% RH non‑condensing
Dimensions
4 × 13.1 × 28.1 cm
Weight
0.68 kg
HS Code
8537101190
Product Origin
Sweden
Condition
Brand New
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active
Communication Service
Ethernet router
Functional Description
The ABB EC24V 086362-001 features intelligent power management with a 32‑bit DSP and 4 MB flash memory. It supports six digital inputs and two configurable analog inputs, ensuring flexible connectivity. Its 500 V AC isolation and robust filtering guarantee safe operation in electrically noisy environments.
Applications and Compatibility
The ABB EC24V 086362-001 Bulk DC Power Supply Module is widely used in factory automation, process control, and machine building. Engineers rely on its compact size, plug‑and‑play installation, and long‑term reliability to reduce downtime and maintain stable power distribution in critical control systems.
