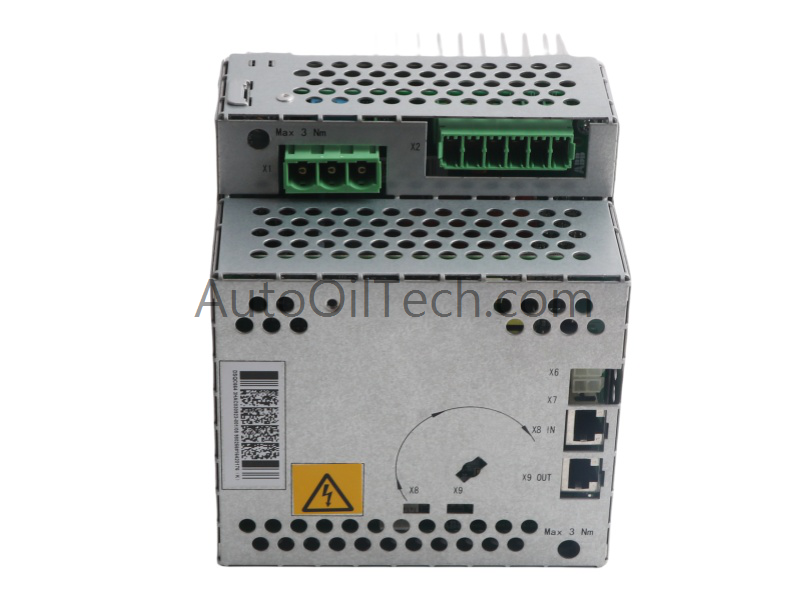

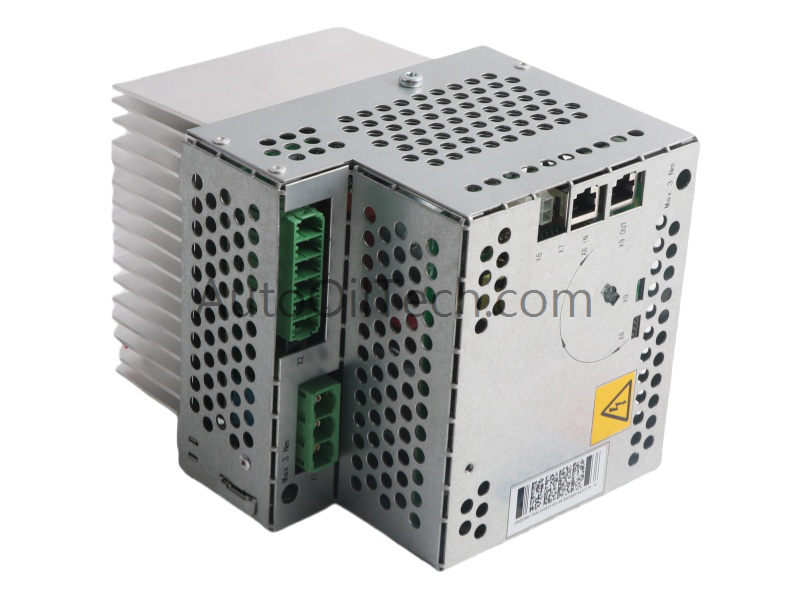

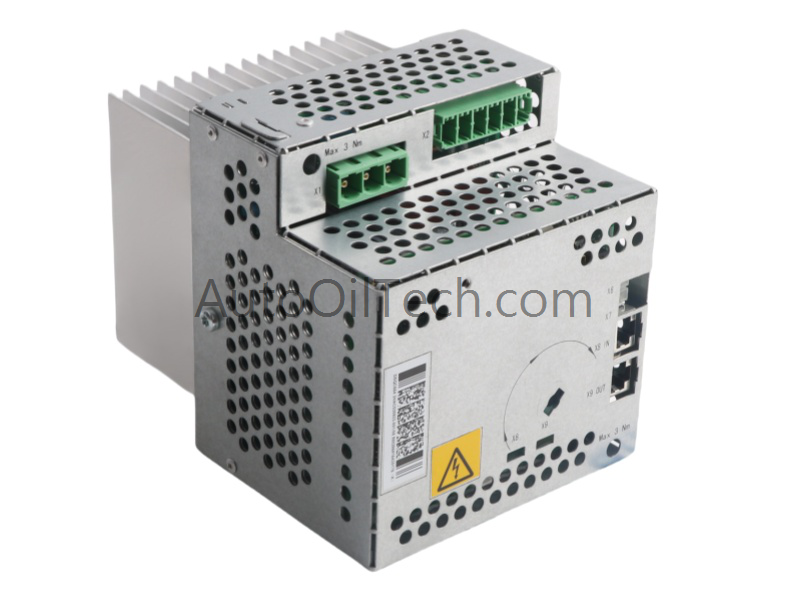

The DSQC 664 3HAC030923-001 Robot Drive Unit from ABB is a high-performance I/O module designed for robotic control systems. Though discontinued, it remains a critical component for maintaining and upgrading ABB automation platforms.
Technical Specifications
Specification
Detail
Model Number
DSQC 664 3HAC030923-001
Product Series
ABB
Manufacturer
ABB
Module Type
Robot Drive Unit
System Compatibility
DCS / ABB Robotics
Dimensions (cm)
14.5 × 18 × 15
Weight
2.36 kg
Communication Interface
Ethernet router
HS Code
8537101190
Product Origin
Sweden
Condition
Brand New
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active (Discontinued)
Electrical & Performance Ratings
Input Voltage: 3-phase 400–480 V AC (+10%/–15%)
Frequency: 50/60 Hz ±3%
DC Link Voltage: 620 V DC
Continuous Current: 25 A
Peak Current: 50 A
Max Power Consumption: 6.5 kVA
Torque Accuracy: ±2% of rated torque
Update Rate: 4 kHz
I/O & Environmental Features
I/O Configuration: 16 digital inputs / 16 digital outputs
Operating Temperature: 0°C to +45°C
Storage Temperature: –25°C to +70°C
Humidity Tolerance: 20–80% RH (non-condensing)
Modular housing for compact installation
Application & Compatibility
The DSQC 664 3HAC030923-001 is ideal for high-precision robotic applications requiring stable torque control and fast signal processing. It integrates with ABB robotic systems and complements modules like DSQC 663, DSQC 679, and DSQC 608. Replacement variants such as 3HAC030923-001/08 are available for legacy support.
