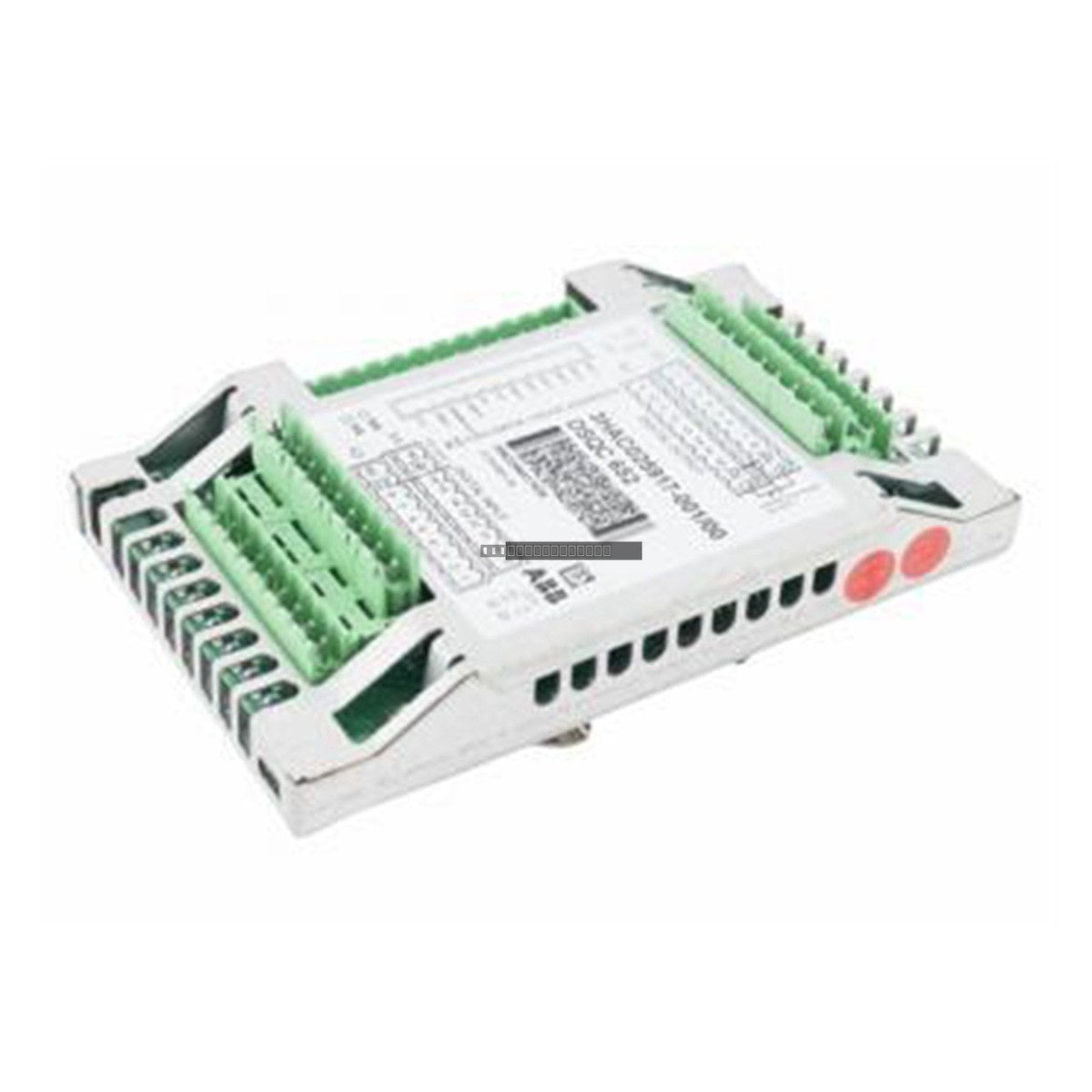

The ABB DSQC652 (3HAC025917-001) is a specialized digital I/O unit engineered for integration within ABB robotic control systems. This module provides reliable signal processing capabilities, featuring 16 digital input channels designed to interface with field devices in demanding industrial automation environments.
Features
Integrated 16-channel digital input configuration for high-density signal monitoring.
Standardized 24 V DC operating voltage compatible with typical industrial control architectures.
Optimized response time of 0.5 ms or less to ensure precise system synchronization.
Designed for robust performance in temperatures ranging from -10 degC to +55 degC.
Energy-efficient operation with a power dissipation of 150 mW per channel.
Technical Specifications
Model
DSQC652 (3HAC025917-001)
Input Channels
16 Digital Inputs
Rated Voltage
24 V DC
Input Thresholds
15 to 35 V
Input Current
Approximately 5 mA
Response Delay
≤0.5 ms
Operating Temperature
-10 degC to +55 degC
Humidity
5% to 95% (Non-condensing)
Installation Guidelines
Ensure the robot controller is fully powered down before inserting or removing the DSQC652 module to prevent electrical damage.
Verify that all field wiring is properly shielded and routed away from high-voltage power lines to minimize electromagnetic interference (EMI).
Ensure the module is securely seated in the designated I/O slot to maintain proper backplane communication.
Maintain adequate ventilation within the controller cabinet; ensure ambient temperatures remain within the specified range to prevent thermal degradation.
Handle with standard ESD precautions to protect sensitive internal circuitry during installation or maintenance.
FAQ
What is the primary function of the DSQC652 module? The DSQC652 serves as a digital I/O unit for ABB robotics, specifically managing 16 digital input signals to facilitate communication between the robot controller and external peripheral equipment.
What is the operating voltage for this unit? The module is designed for a standard 24 V DC input, with an input threshold range between 15 V and 35 V.
