ABB DSQC 651 3HEA800439-002 | Drive Module

Product Overview

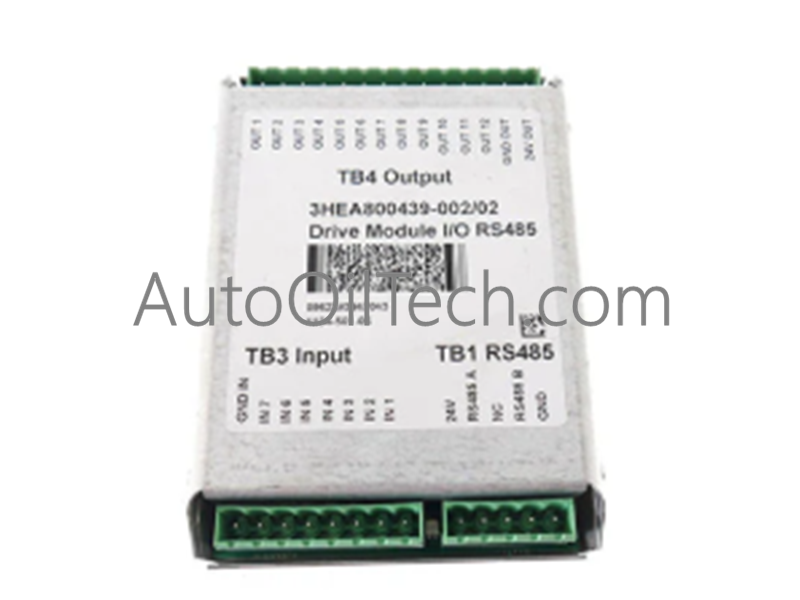

The ABB DSQC 651 (3HEA800439-002) is a specialized communication interface module designed for ABB’s robotic drive systems. It facilitates the high-speed exchange of data between drive modules and external peripherals using the RS485 serial communication standard. This compact unit is a critical component for ensuring the synchronized operation and feedback loops of multi-axis industrial robots, particularly in setups where external hardware must interact directly with the motion drive layer.

Technical Specifications

• Brand/Manufacturer: ABB

• Model Number: DSQC 651

• Part Number: 3HEA800439-002

• Communication Protocol: RS485

• Product Net Weight: 0.27 kg

• Dimensions: 135 mm (D) x 33 mm (H) x 85 mm (W)

• Country of Origin: Sweden

• Customs Tariff Number: 85389091

Key Features

• RS485 Serial Interface: Provides a robust, long-distance differential signaling path, making it highly resistant to electromagnetic interference (EMI) common in dense factory environments.

• Compact Integration: With a slim 85 mm width and 33 mm height, it is designed for high-density installation within narrow slots of the robot's drive unit rack or control cabinet.

• Low Latency Communication: Optimized for the rapid feedback loops required in precision motion control, allowing the drive system to process peripheral commands with minimal delay.

• Industrial Durability: Manufactured to strict Swedish industrial standards, ensuring the module can withstand the thermal and electrical stresses of 24/7 automated production.

• Streamlined Maintenance: Its lightweight (0.27 kg) and modular design allow for rapid field replacement, significantly reducing potential system downtime.
