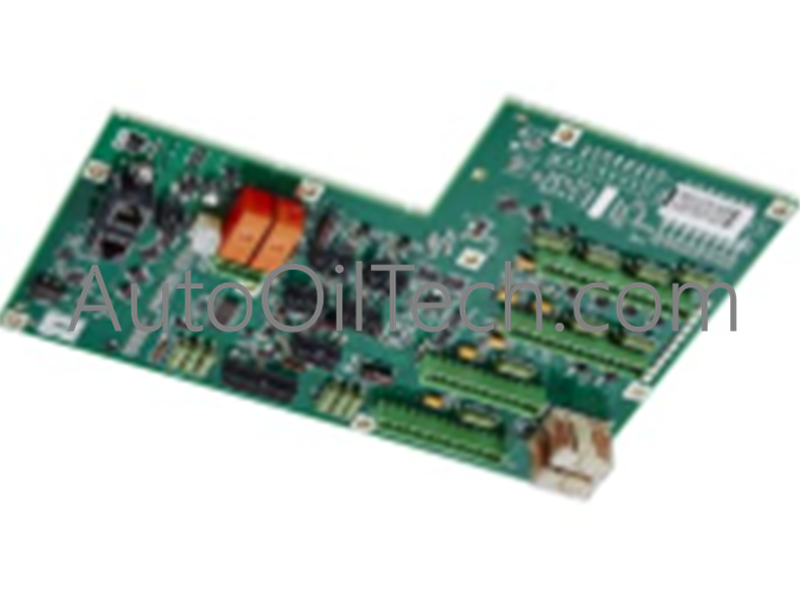

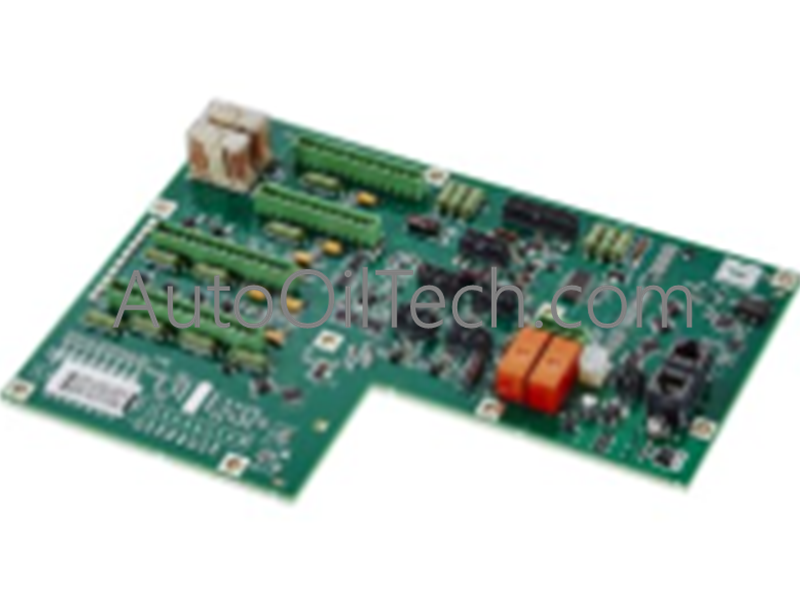

ABB DSQC 643 3HAC024488-001 Panel Board

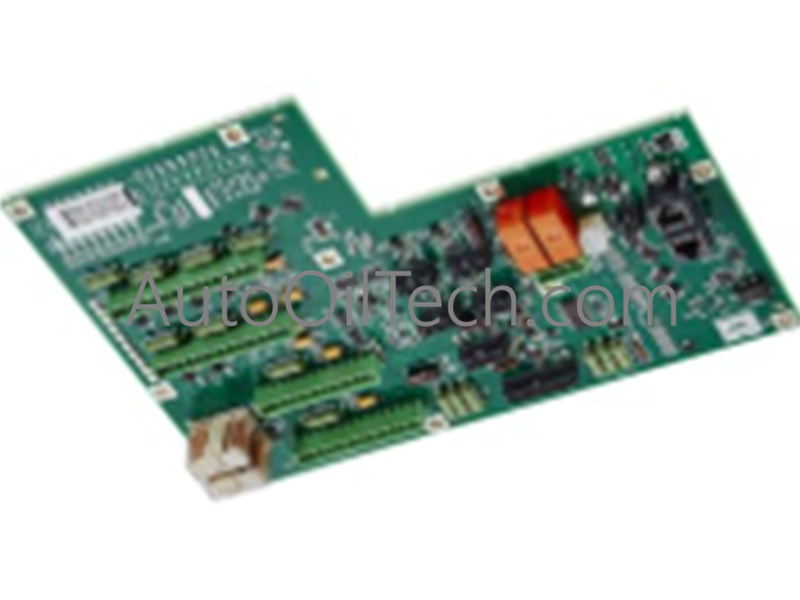

Product Overview

The ABB DSQC 643 (3HAC024488-001) is the central Panel Board for the IRC5 robot control system. It acts as the primary interface hub for all user-accessible and safety-related functions. This board manages signals for the mode selector switch (Manual/Auto), Emergency Stop buttons, the FlexPendant connection, and external safety interlocks. It is the "gatekeeper" of the robot's safety chain, ensuring that all physical safety conditions are met before the robot is allowed to move.

Technical Data

• Part Number: 3HAC024488-001

• Model Designation: DSQC 643

• Country of Origin: Sweden

• Customs Tariff Number: 85389091

• Net Weight: 0.34 kg

• Dimensions: 280 mm (L) x 218 mm (W) x 26.8 mm (H)

• Condition: New Spare Part

Key Features

• Safety Chain Integration: Processes dual-channel safety signals from E-stops and gates, complying with global robotic safety standards (ISO 10218).

• Interface Hub: Provides dedicated connection points for the FlexPendant and external control signals via standardized connectors.

• Wide Compatibility: Designed to work across different IRC5 cabinet generations when paired with the appropriate covers.

• Diagnostic LEDs: Features onboard status indicators to help technicians quickly identify safety loop interruptions or power issues at a glance.

• Rugged Swedish Engineering: Built to endure the electrical noise and environmental stressors of automotive and heavy industrial plants.
