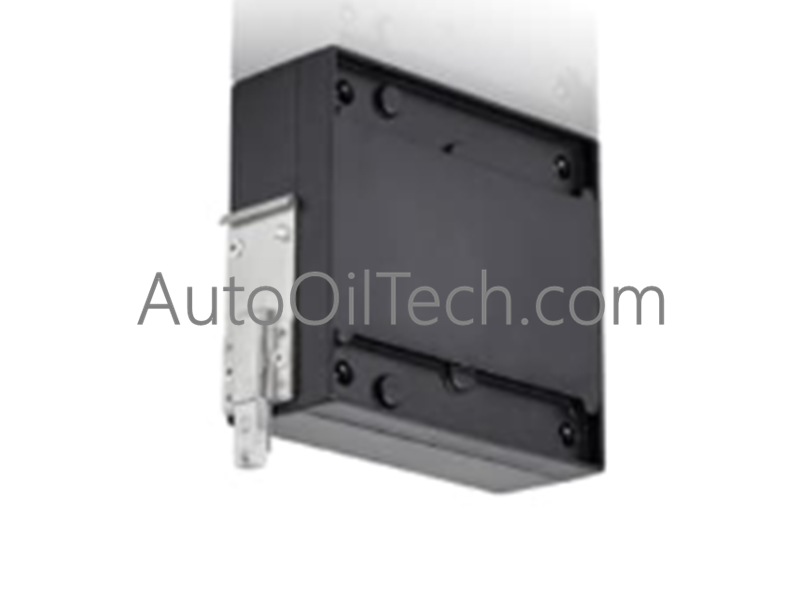

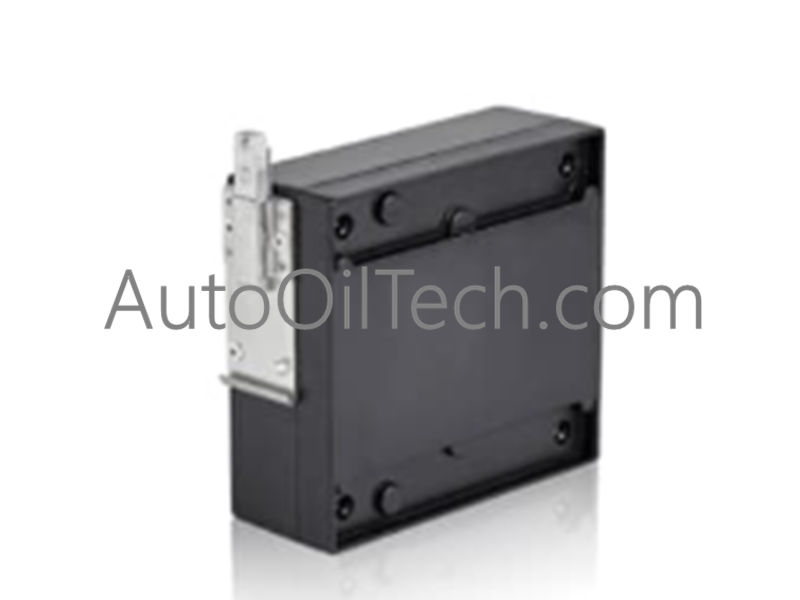

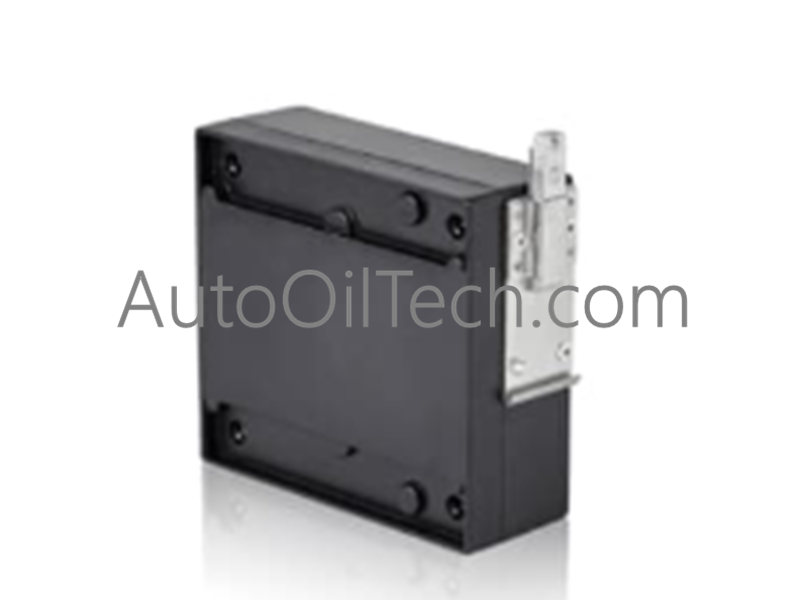

ABB DSQC 609 3HAC14178-1 Computer Unit Power Supply

Product Overview

The ABB DSQC 609 (3HAC14178-1) is a specialized Power Supply Unit (PSU) engineered for the ABB IRC5 robot control platform. Its primary function is to convert the incoming control voltage into stable, regulated DC power specifically for the main computer subrack (which houses the CPU, axis computer, and memory modules).

Technical Data

• Part Number: 3HAC14178-1

• Model Designation: DSQC 609

• Country of Origin: China

• Customs Tariff Number: 85044083

• Net Weight: 0.46 kg

• Dimensions: 125 mm (D) x 115 mm (H) x 47 mm (W)

• Condition: New Spare Part

• WEEE Category: Product Not in Scope

Key Features

• Regulated DC Output: Provides highly stable voltage to sensitive semiconductor components, ensuring the longevity of the main CPU and axis boards.

• Industrial Protection: Features built-in protection against overvoltage, short circuits, and thermal overloads, shielding the expensive computer unit from electrical faults.

• Compact Integration: Specifically designed for the IRC5 computer subrack, utilizing a slim form factor that allows for easy airflow and hardware organization.

• High Efficiency: Optimized power conversion technology reduces heat dissipation, contributing to a cooler operating environment inside the controller cabinet.

• Vibration Resistant: Built with industrial-grade components and secure mounting points to withstand the mechanical vibrations of heavy-duty robotic environments.

Typical Applications

• IRC5 Controller Maintenance: Replacing faulty power supplies that cause "System Boot Failure," intermittent restarts, or computer unit power-loss errors.

• System Overhauls: A critical component for refurbishing IRC5 controllers (M2000/M2004 versions) to ensure power reliability.

• Emergency Spare Parts: Essential for high-production facilities to minimize downtime in the event of a power supply burnout.
