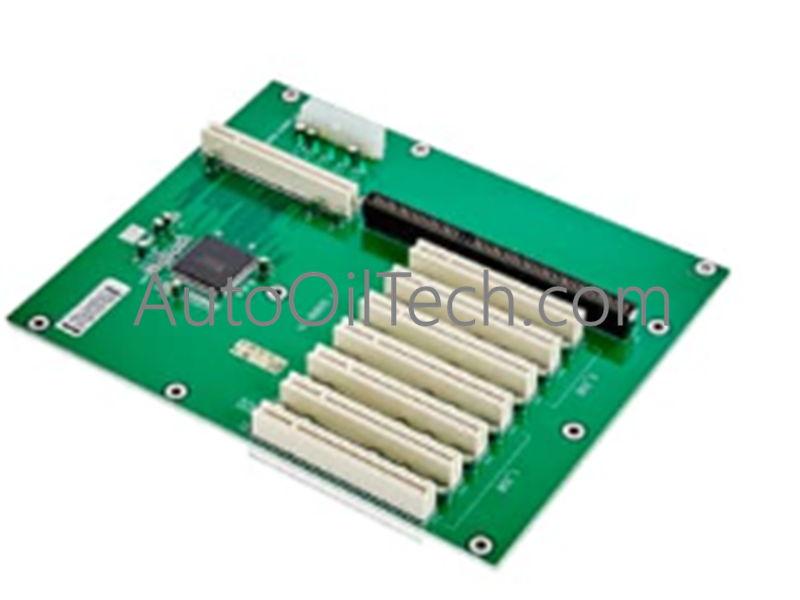

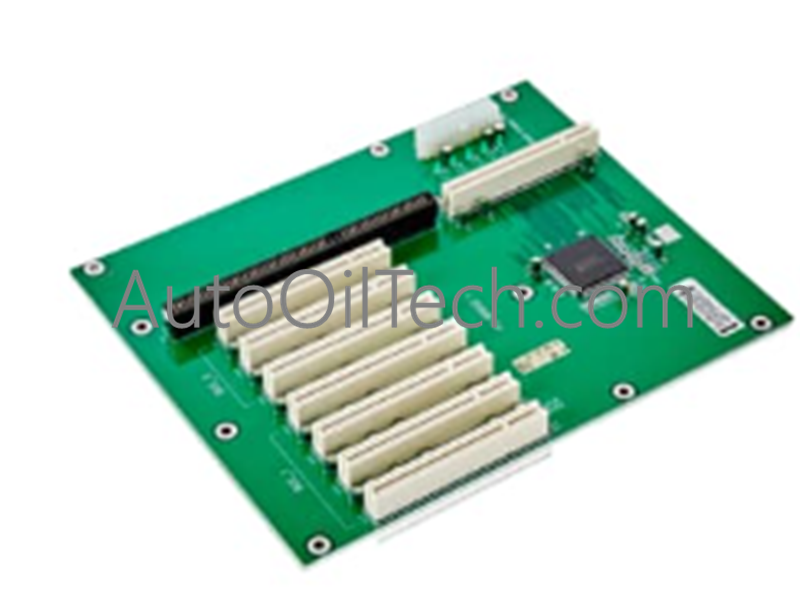

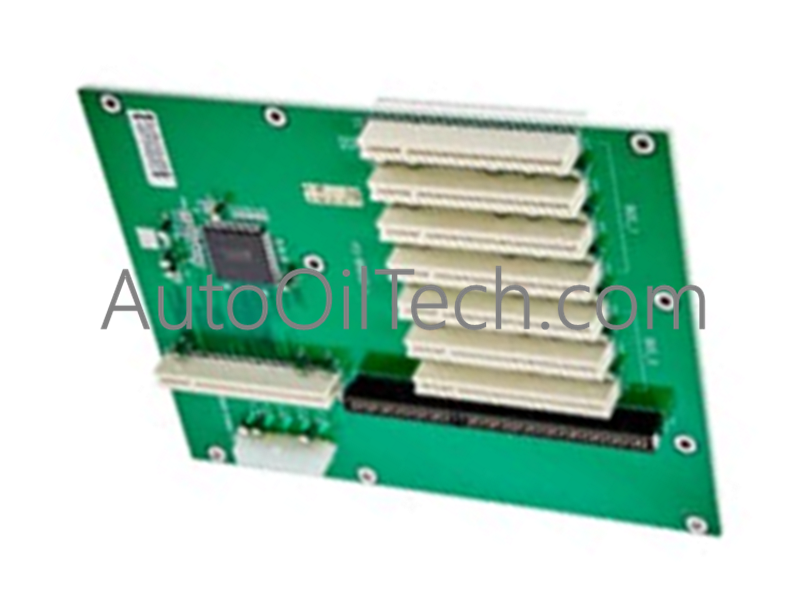

ABB DSQC 541 3HAC14363-1 Computer Backplane Board

Product Overview

The ABB DSQC 541 (3HAC14363-1) is the primary Computer Backplane for the S4C+ industrial robot controller. Acting as the "central nervous system" of the control cabinet's computer unit, it provides the physical slots and electrical bus pathways necessary for different processing boards to communicate.

Technical Data

• Part Number: 3HAC14363-1

• Model Designation: DSQC 541

• Replaced Product ID (OLD): 3HAC3617-1

• Country of Origin: Germany

• Net Weight: 0.36 kg

• Dimensions: 253.5 mm (D) x 18 mm (H) x 207 mm (W)

• Customs Tariff Number: 85389099

• Condition: New Spare Part

Key Features

• Multi-Slot Interconnect: Designed with specific slots to host the full suite of S4C+ computer boards, ensuring organized and secure hardware management.

• High-Speed System Bus: Features optimized trace routing to minimize signal latency and electromagnetic interference (EMI) during high-speed data transfers.

• Structural Rigidity: Built on a high-density, industrial-grade PCB substrate that resists warping and ensures reliable connector alignment over years of service.

• Direct Legacy Replacement: Fully interchangeable with the older 3HAC3617-1, allowing for seamless repairs of aging S4C+ systems without cabinet modifications.

• Passive Architecture: As a passive board, it generates minimal heat and has an extremely high MTBF (Mean Time Between Failures), as there are no active processors to fail.
