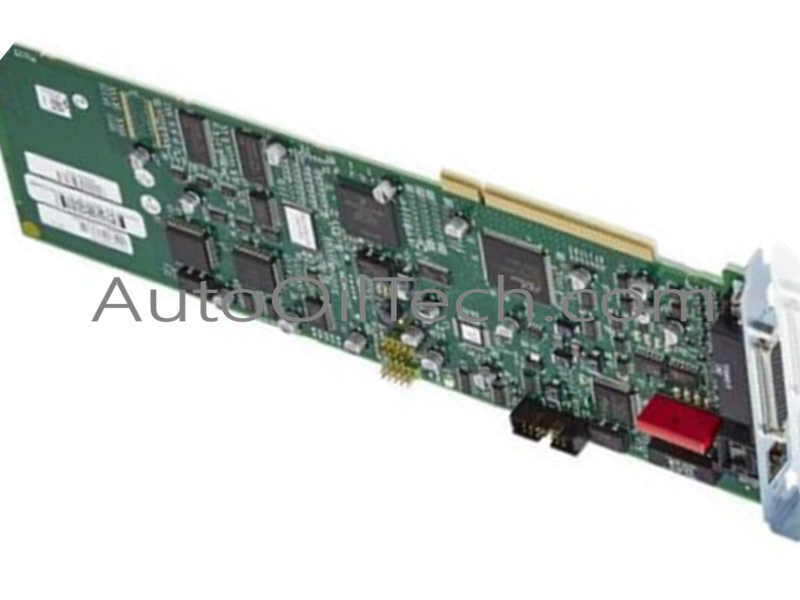

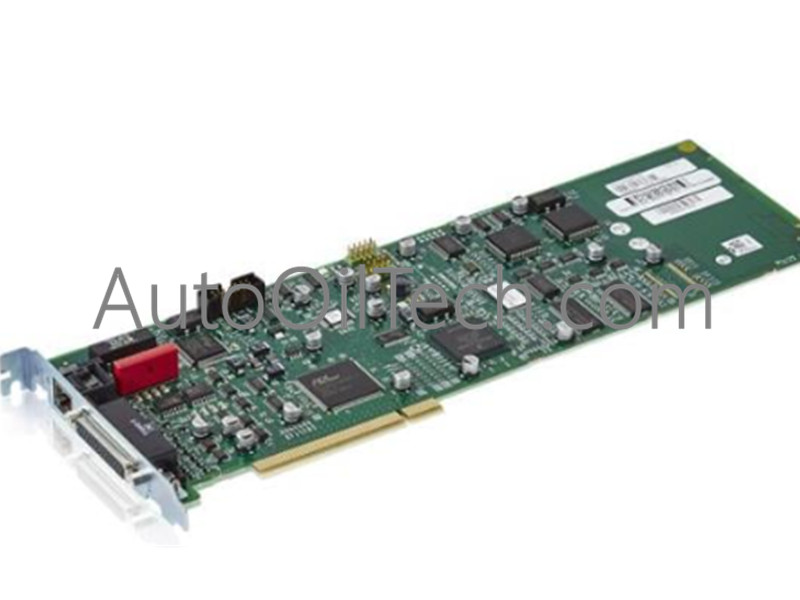

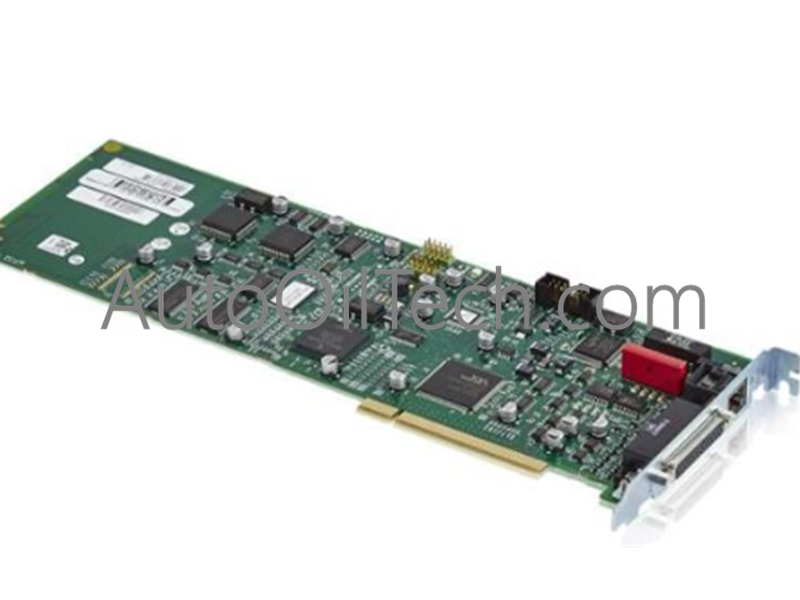

ABB DSQC 532A 3HAC18158-1 RobotControl Board

Product Overview

The ABB DSQC 532A (3HAC18158-1) is a specialized Robot Control Board essential for the operation of ABB S4C+ industrial robot controllers. This specific version is equipped with SDRAM, providing the necessary high-speed memory buffer for complex calculation tasks and system logic execution.

Technical Specifications

• Part Number: 3HAC18158-1

• Model Designation: DSQC 532A

• Alternate Part No: 3HAC18158-1/01 (ASEA Brown Boveri)

• Memory Type: Integrated SDRAM

• Weight: 0.22 lbs (approx. 0.1 kg)

• Category: Robot Control Board / Control Electronics

• Platform Compatibility: ABB S4C+ System

Key Features

• Enhanced Memory Bandwidth: The onboard SDRAM allows for rapid temporary data storage, which is critical for high-speed motion planning and multi-tasking within the robot controller.

• Optimized Logic Processing: Specifically tuned for the S4C+ hardware environment to ensure deterministic timing for robotic I/O and motion commands.

• Industrial Grade Reliability: Built to withstand the continuous electrical noise and thermal fluctuations found within a 24/7 manufacturing environment.

• Seamless Integration: Designed as a direct-fit spare part, requiring no mechanical modifications to the existing S4C+ computer rack.

• Legacy Support: A vital component for extending the service life of aging robot fleets that rely on the Advant-based S4C+ architecture.
