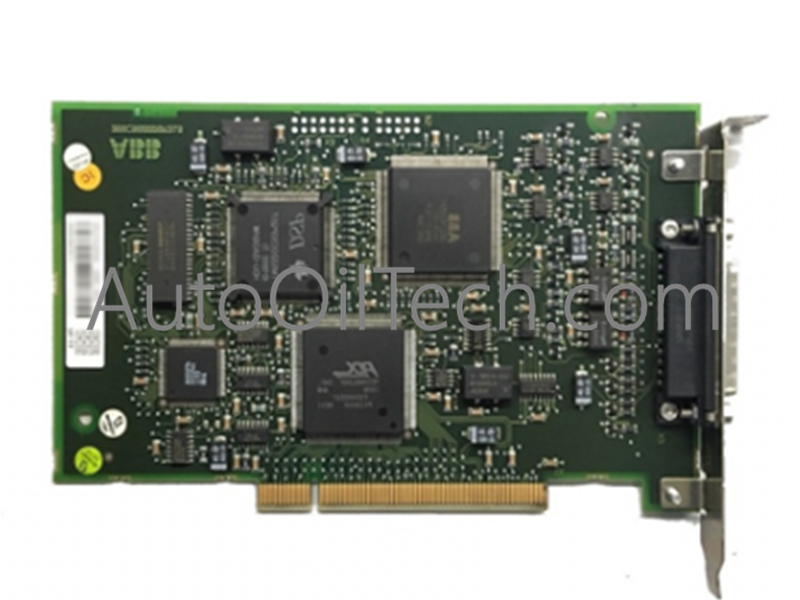

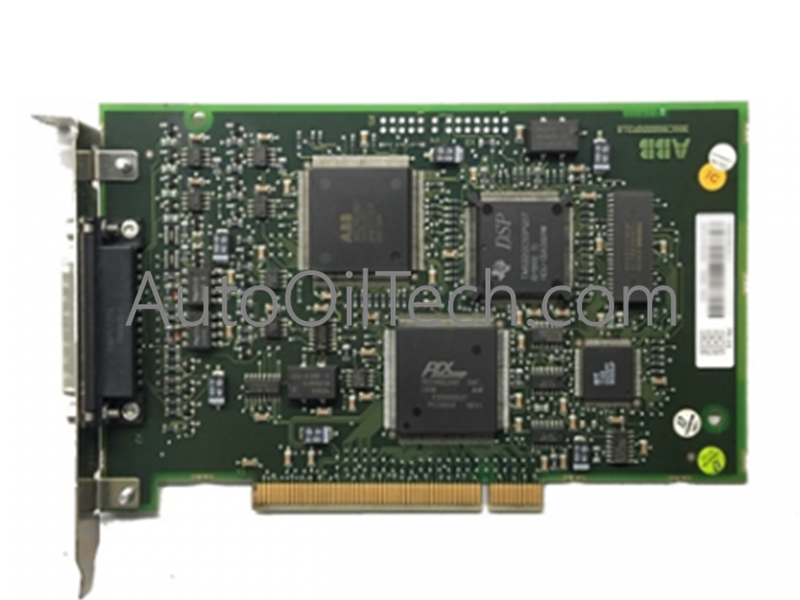

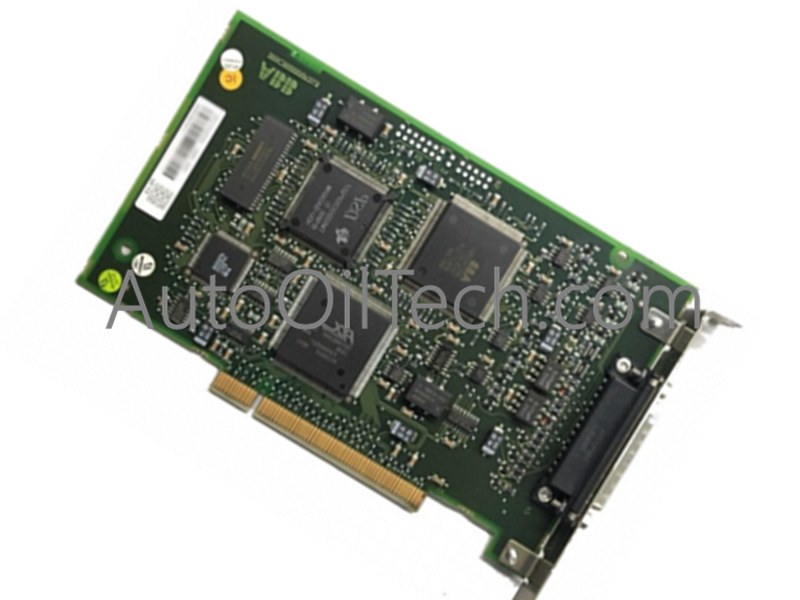

ABB DSQC 503 Computer Unit

Product Overview

The ABB DSQC 503 is a high-performance computer unit designed as a central processing component for ABB industrial robot controllers. It is engineered to manage the most demanding real-time motion control algorithms and facilitate system-wide communication.

• Brand/Manufacturer: ABB

• Model Number: DSQC 503

• Power Supply: 24V DC (±15% tolerance)

• Control Cycle: 2kHz real-time update frequency

• Dimensions: 150 mm x 100 mm x 30 mm

• Weight: 0.35 kg

• Operating Temperature: 0°C to 55°C

• Certifications: CE, UL, RoHS

Key Features

• High-Speed Real-Time Control: The 2kHz control cycle allows for sub-millisecond adjustments to robot trajectories, resulting in exceptionally smooth motion and industry-leading path precision.

• Compact Integration: Its slim 30mm profile and lightweight design (0.35 kg) make it an ideal fit for the high-density environment of the main control rack in S4C+ or IRC5 systems.

• Industrial Reliability: Built to comply with rigorous CE and UL standards, the DSQC 503 is optimized for 24/7 continuous operation in harsh manufacturing environments.

• Efficient Power Management: Optimized for 24V DC operation, the unit reduces the overall thermal load within the controller cabinet, extending the lifespan of neighboring electronic components.
