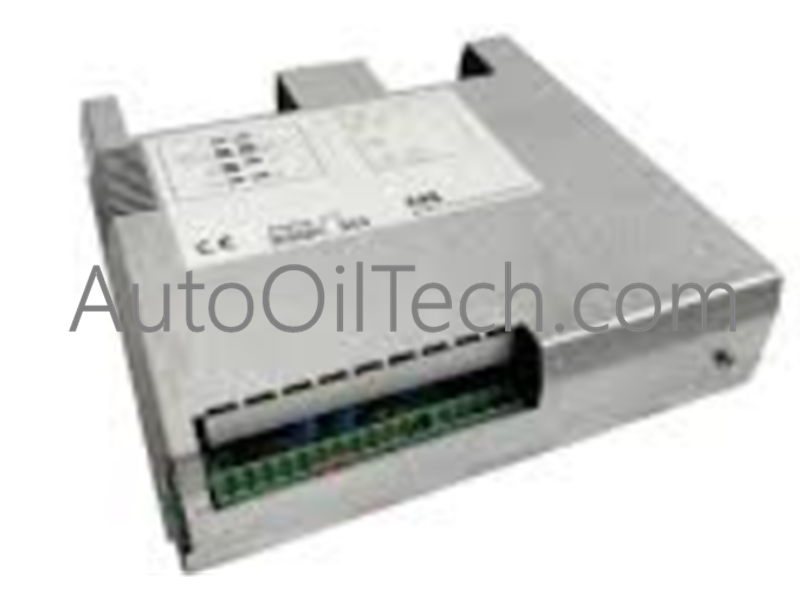

ABB DSQC 378B 3HNE00421-1 Precision Digital Servo Drive Unit

Product Overview

The ABB DSQC 378B (3HNE00421-1) is a high-performance robot module utilizing next-generation digital servo technology. It is engineered for micrometer-level precision, achieving an industry-leading ±0.01mm position control and stable operation at speeds as low as 0.01rpm.

• Brand/Manufacturer: ABB

• Model Number: DSQC 378B

• Part Number: 3HNE00421-1

• Input Voltage: 220V AC ±15% (Wide Voltage support)

• Max Output Current: 12A

• Control Frequency: 2000Hz (High-speed closed-loop)

• Communication: SERCOS III, EtherCAT, and PROFINET IRT (Fiber Optic)

• Safety Rating: SIL3 (Integrated Safe Torque Off - STO)

• Protection Rating: IP54

• Operating Temperature: -10°C to 60°C

Key Features

• Micrometer Precision: Delivers exceptional control accuracy (±0.01mm), making it indispensable for high-precision manufacturing, micro-assembly, and complex handling tasks.

• Dual-Bus Interface: Integrates both SERCOS III and EtherCAT, providing the high-speed data throughput necessary to sustain 2000Hz real-time control cycles.

• Advanced Vibration Suppression: Incorporates built-in dampening technology to minimize end-effector chatter, significantly improving the quality of welds and high-gloss assembly finishes.

• Dynamic Response Algorithm: Automatically identifies load fluctuations and adjusts motor response in real-time, maintaining a ±0.02° repeatability even under varying weights.

• Maintenance Efficiency: Supports hot-swappable replacement and parameter cloning. When used with ABB RobotWare, it can boost production cycle efficiency by up to 30% through reduced downtime.
