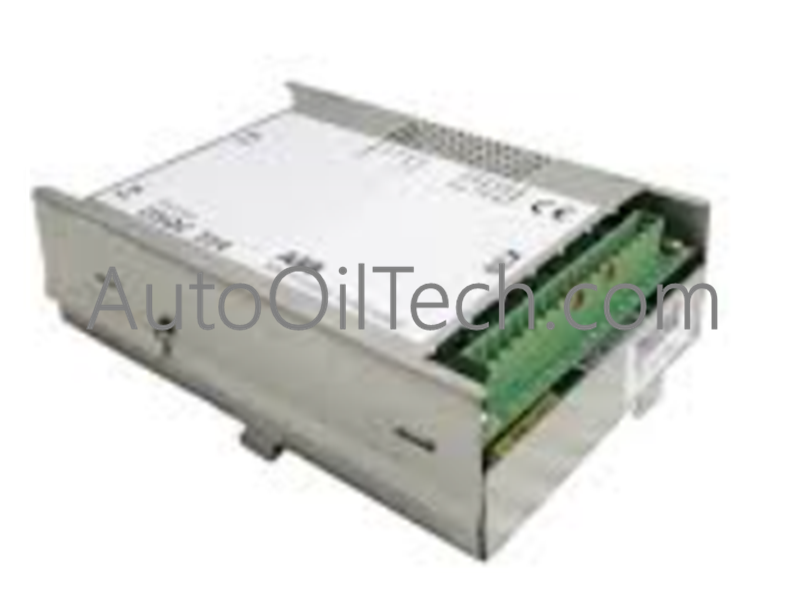

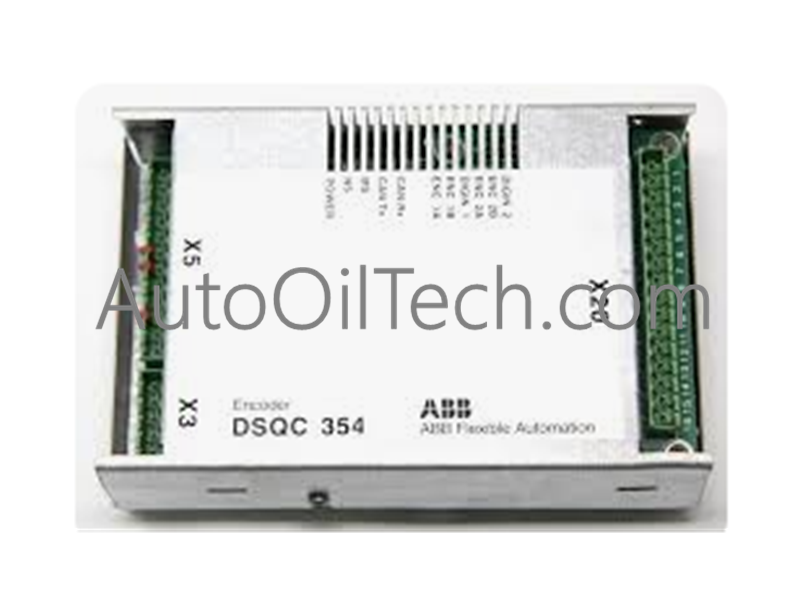

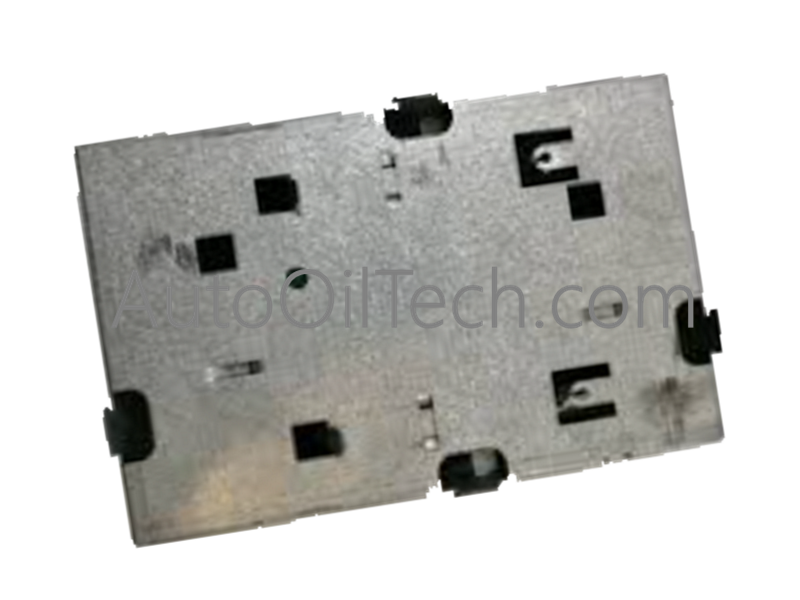

ABB DSQC 354 High-Precision Power Module

Product Overview

The ABB DSQC 354 is a rugged, high-performance power module engineered to provide stabilized energy for precision industrial machinery. It is a critical component for systems where voltage stability is non-negotiable, such as multi-axis welding robots and high-speed CNC centers. With superior conversion efficiency and intelligent compensation systems, it ensures that sensitive electronics remain protected from power inconsistencies even in the most demanding factory environments.

Technical Specifications

• Brand/Manufacturer: ABB

• Model Number: DSQC 354

• Input Voltage: 220V AC ±10%

• Output Power: 600W (Peak)

• Conversion Efficiency: ≥93%

• Protection Rating: IP65

• Operating Temperature: -25°C to +70°C

• Dimensions: 150 mm x 100 mm x 50 mm

• Weight: 1.2 kg

Key Features

• Intelligent Temperature Compensation: Features an advanced internal regulation system that dynamically adjusts output based on ambient thermal conditions, ensuring consistent voltage delivery from -25°C to +70°C.

• Fluctuation Suppression: Effectively filters and eliminates grid voltage spikes and dips, protecting high-resolution encoders and control logic from data corruption or hardware damage.

• Superior Environmental Protection: The IP65 rating guarantees the module is dust-tight and resistant to water jets, making it ideal for installation in environments prone to oil mist, moisture, and heavy particulates.

• High Efficiency Performance: Operates at an efficiency of 93% or higher, which significantly reduces waste heat generation and improves the energy profile of the control cabinet.

• High Power Density: Delivers substantial 600W peak power within a compact 150mm footprint, facilitating flexible mounting in high-density hardware layouts.
