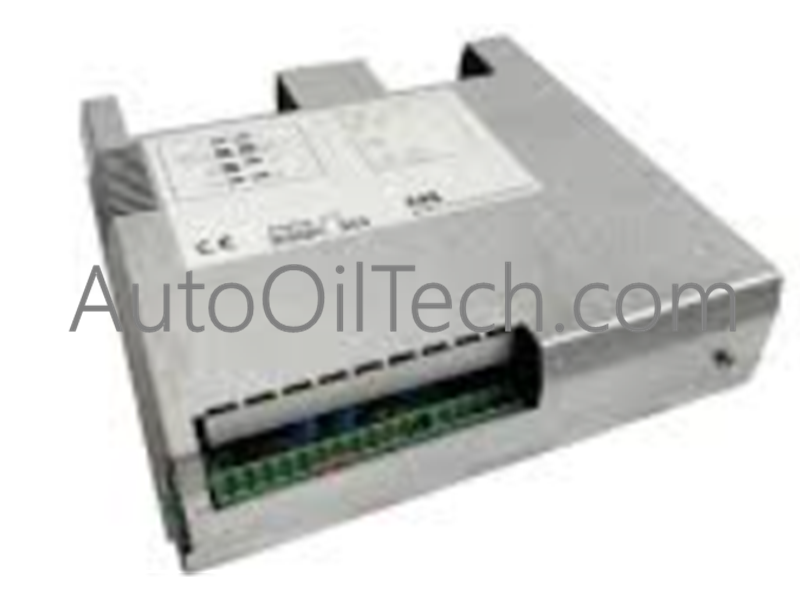

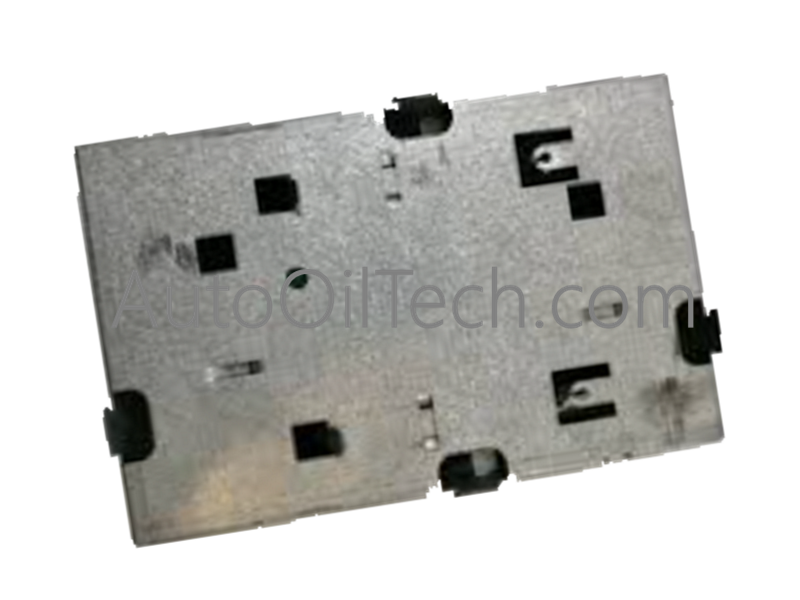

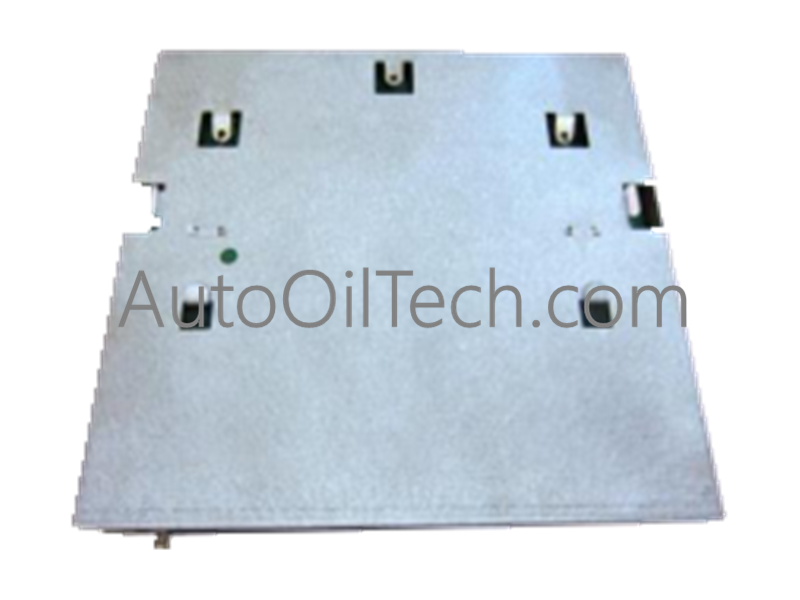

ABB DSQC 352 3HNE00009-1 Profibus-DP Slave Communication Interface

Product Overview

The ABB DSQC 352 (3HNE 00009-1) is a dedicated Profibus-DP slave communication interface engineered for the S4C and S4C+ industrial robot controller generations. This module acts as a high-speed gateway, enabling seamless data exchange between the robotic system and a master PLC (such as Siemens S7 or Allen-Bradley) over a standard Profibus network.

• Manufacturer: ABB

• Model: DSQC 352

• Part Number: 3HNE 00009-1

• Network Protocol: Profibus-DP (Slave)

• Baud Rate Support: Auto-detecting up to 12 Mbps

• Dimensions: 95 mm (H) x 200 mm (W) x 305 mm (D)

• Net Weight: 0.48 kg

• Controller Compatibility: S4C, S4C+ (M2000/M2000A systems)

• Interface: Standard 9-pin D-Sub Profibus connector

Key Features

• High-Speed Data Exchange: Supports the full Profibus-DP speed range (up to 12 Mbps), ensuring real-time response for handshake routines and I/O monitoring.

• Remote Management: Allows for remote monitoring of robot status, error codes, and program execution directly from the master PLC's HMI.

• Superior Noise Immunity: Specifically engineered for stable operation in heavy manufacturing environments with significant electromagnetic interference (EMI).

• Rotary Address Switches: Features user-friendly physical switches for manual setting of the Profibus station address, ensuring easy network configuration.

• Standardized Integration: Uses industry-standard GSD files for quick configuration in master PLC tools like TIA Portal or Step 7.

• LED Diagnostics: Provides instant visual feedback on bus power and active communication status to simplify field troubleshooting.
