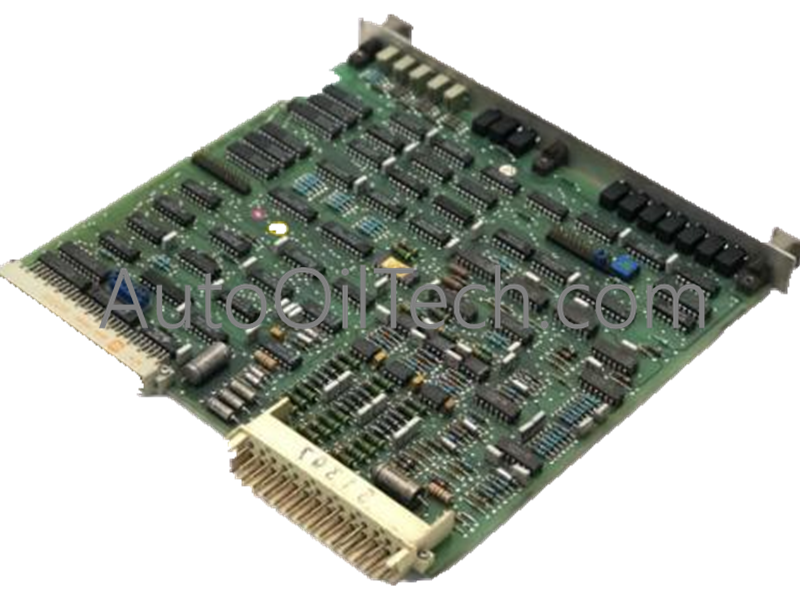

ABB DSQC 335 Robot Control Board

Product Overview

The ABB DSQC 335 (3HAB6182-1) is an ultra-compact, high-performance robot control board engineered for precision industrial automation. Serving as a core peripheral component, it utilizes the EtherCAT communication protocol to provide real-time coordination of digital and analog signals.

Technical Specifications

• Brand/Manufacturer: ABB

• Model Number: DSQC 335

• Part Number: 3HAB6182-1

• Communication Protocol: EtherCAT

• Operating Voltage: 24V DC

• Digital I/O: 16 Inputs / 8 Outputs

• Analog I/O: 2 Inputs / 2 Outputs

• Dimensions: 105 mm x 58.5 mm x 34 mm

• Weight: 0.02 kg (20 grams)

• Operating Temperature: -25°C to +60°C

• Protection Rating: IP20

Key Features

• EtherCAT Connectivity: Optimized for high-speed, low-latency data transmission, enabling millisecond-level synchronization essential for multi-axis robotic movements and "on-the-fly" processing.

• Mixed Signal Handling: Provides a versatile array of 24 digital points and 4 analog channels, allowing a single board to manage both simple switches and complex variable-voltage sensors.

• Extreme Compactness: Weighing just 20 grams, this board offers one of the highest computational-to-weight ratios in its class, making it ideal for installation directly on moving robotic arms or within specialized end-effectors.

• Broad Environmental Tolerance: Engineered to maintain signal integrity in extreme industrial conditions, from cold-storage facilities (-25°C) to high-heat foundry environments (+60°C).

• High Efficiency Design: Designed for standard 24V DC industrial power, ensuring compatibility with most robotic control cabinet power architectures.
