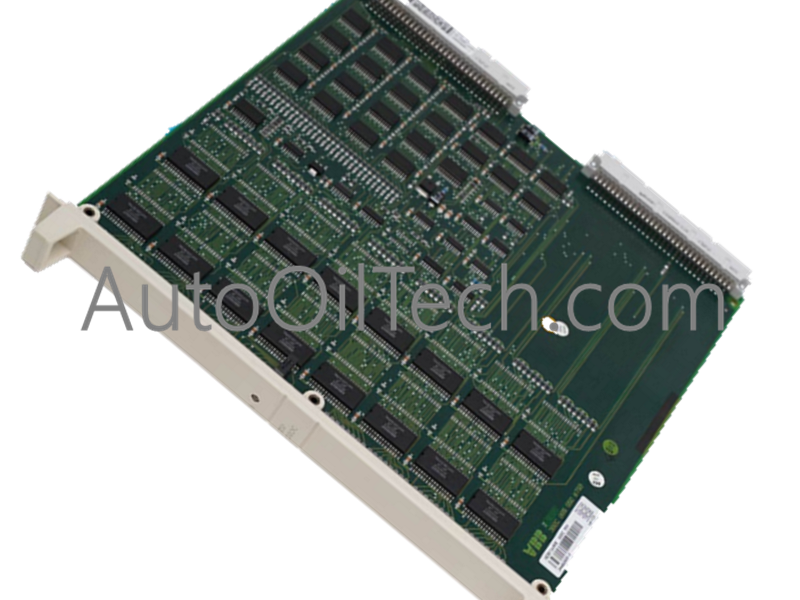

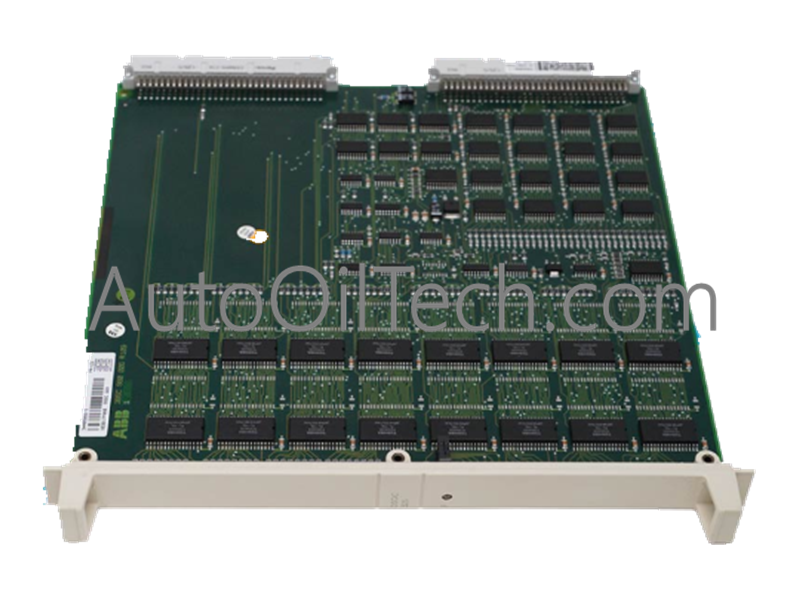

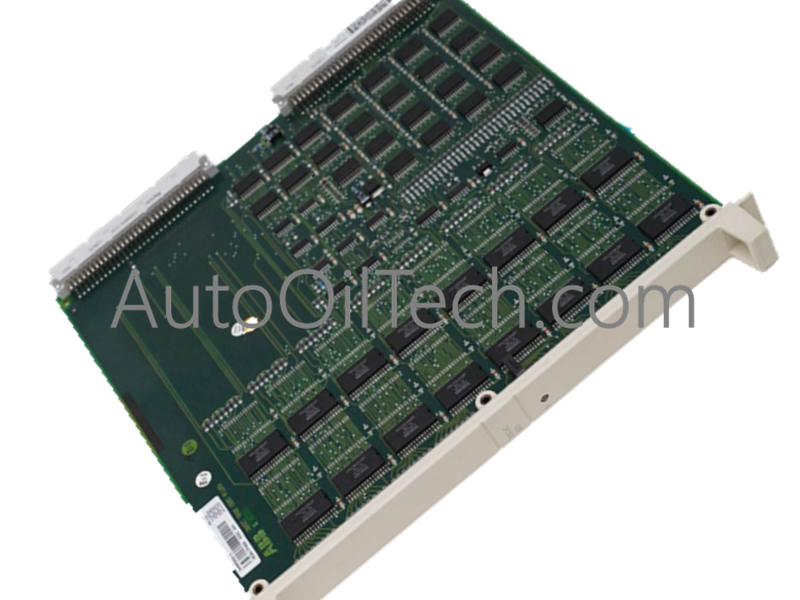

ABB DSQC 323 3HAB5956-1 Memory Board

Product Overview

The ABB DSQC 323 (3HAB5956-1) is a high-reliability 8MB Memory Board specifically engineered for the ABB S4, S4C, and S4C+ robot controller generations. Within these legacy systems, the memory board serves as the primary storage expansion for the system's "RAM" and program memory. It allows the robot to store and execute larger, more complex RAPID program files, manage extensive system parameters, and maintain high-speed access to the motion control data required for fluid industrial operations.

Technical Specifications

• Brand/Manufacturer: ABB

• Model Number: DSQC 323

• Part Number: 3HAB5956-1

• Product Category: DCS System / Robot Control Spare Part

• Memory Capacity: 8 MB

• Operating Voltage: 12 - 24 V DC

• Power Consumption: ~1.45 W

• Operating Temperature: -20 °C to +60 °C

• Dimensions: 2.0 cm x 24.7 cm x 24.3 cm

• Net Weight: 0.28 kg

• Country of Origin: Switzerland

• Tariff Code: 8537101190

Key Features

• Expanded Storage Capacity: The 8MB capacity is optimized for S4-series controllers, providing the necessary overhead for complex paths, logic-heavy programs, and multi-tasking operations.

• Low Power Consumption: Operates at a highly efficient ~1.45 W, minimizing heat generation within the controller rack and extending the lifespan of adjacent electronic components.

• Swiss Engineering Standards: Manufactured with high-precision components in Switzerland, ensuring long-term data integrity and resistance to the electrical noise typical of factory environments.

• Wide Thermal Range: Designed to maintain stability from -20 °C to +60 °C, making it suitable for unconditioned industrial facilities and heavy-duty production cycles.

• Plug-and-Play Integration: Features a standard PCB form factor for direct insertion into the main computer rack of S4, S4C, and S4C+ cabinets.
