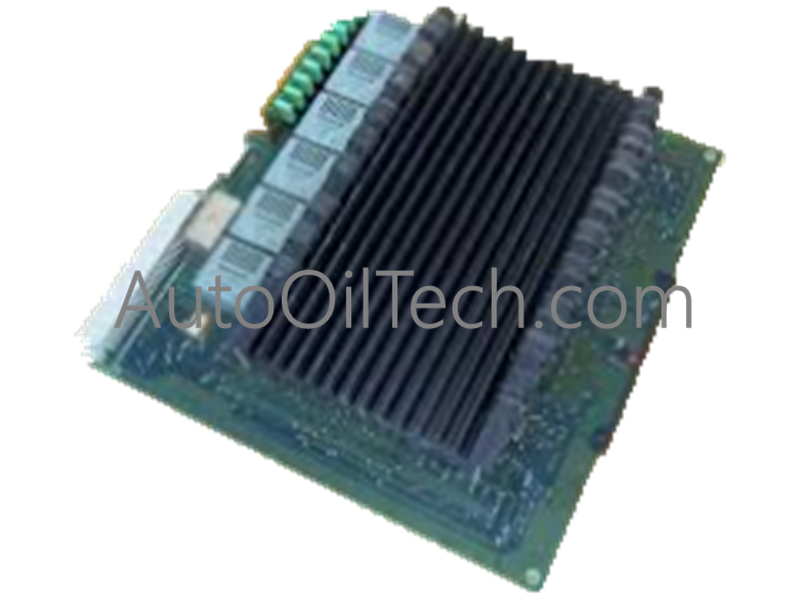

ABB DSQC 266G 3HAB8801-1/2B Drive Control Module

Product Overview

The ABB DSQC 266G (3HAB8801-1/2B) is a specialized drive control module engineered for the ABB S4C and S4C+ robot controller generations. This board serves as a critical interface within the drive system, responsible for modulating power signals and monitoring real-time feedback loops for individual robotic axes. ons

• Brand/Manufacturer: ABB

• Model Number: DSQC 266G

• Part Number: 3HAB8801-1/2B

• Component Function: Drive Control / Axis Regulator Module

• Controller Compatibility: ABB S4C and S4C+ (M97, M98, M2000 eras)

• Dimensions: 12.6 cm (D) x 12.4 cm (W) x 2.2 cm (H)

• Net Weight: 0.1 kg

• Manufacturing Origin: Switzerland

• Communication Protocol: Internal high-speed drive bus

• Mounting: Plug-in card architecture for controller chassis

Key Features

• Precision Axis Regulation: Manages the fine-tuning of motor power to ensure that each movement matches the controller's mathematical trajectory with minimal deviation.

• High-Speed Data Processing: Capable of handling rapid feedback from motor resolvers, allowing the system to make instantaneous adjustments to torque and speed.

• Compact, High-Density Design: The slim 2.2 cm height allows for multiple modules to be installed side-by-side in the drive rack, supporting complex 6-axis configurations in a small footprint.

• S4C/S4C+ Optimization: Specifically tuned for the M97 through M2000 controller eras, providing seamless logic integration and hardware stability.

• Swiss Engineering Standards: Manufactured with high-precision components in Switzerland, ensuring long-term reliability in environments with high thermal cycling.
