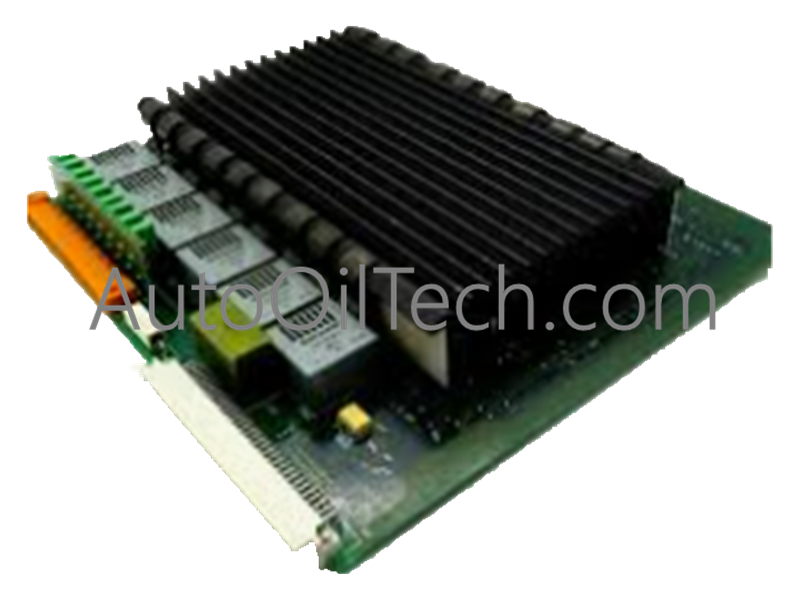

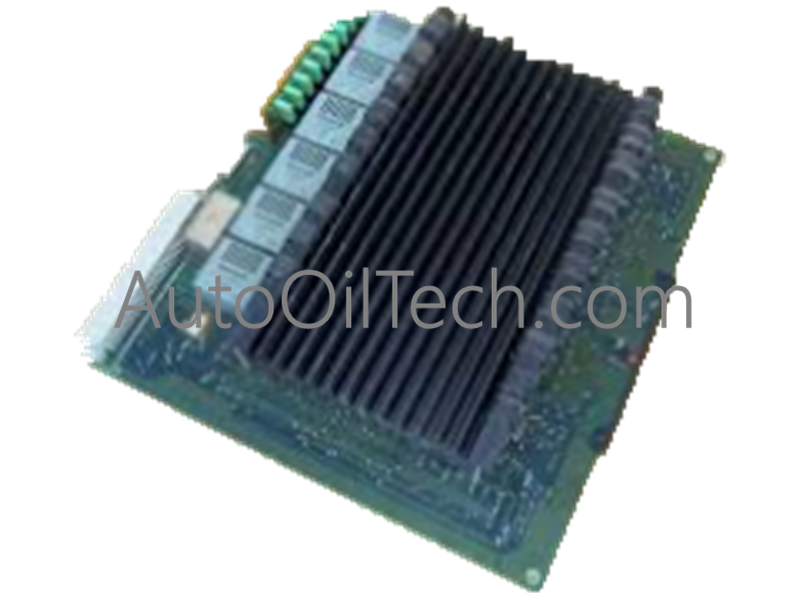

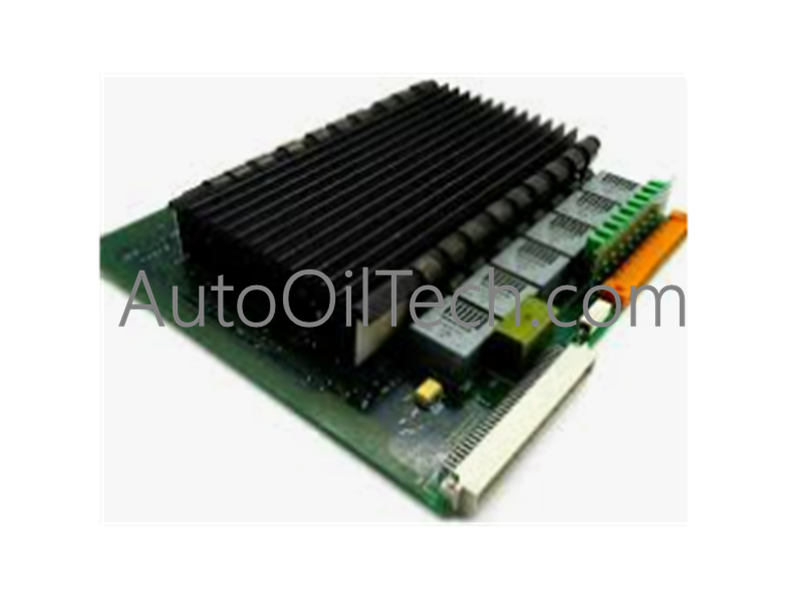

ABB DSQC 236G YB560103-CD Servo Power Unit

Product Overview

The ABB DSQC 236G (YB560103-CD) is a high-performance Servo Power Unit designed for the ABB S4 robot controller series. This specialized module is responsible for managing and distributing the electrical power required to drive the robot's servo motors. By acting as a regulated power stage, it ensures that each axis receives the stable energy necessary for precise, high-speed movements.

Technical Specifications

• Brand/Manufacturer: ABB

• Model Number: DSQC 236G

• Product ID: EYB560103-CD / YB560103-CD

• Product Name: Servo Power Unit

• Replacement Product ID (New): E3HAB8801-1

• Product Net Weight: 1.36 kg

• Gross Weight: 1.36 kg

• Country of Origin: Sweden (SE)

Key Features

• Precision Power Regulation: Specifically tuned to provide the dynamic power response needed for rapid acceleration and deceleration of robotic axes.

• Legacy System Optimization: Engineered for the S4 controller rack, offering a direct, "form-fit-function" replacement for original units to extend the life of existing robot cells.

• Industrial Durability: Manufactured to Swedish engineering standards, featuring high-grade components capable of withstanding the thermal demands of continuous 24/7 production.

• Safe Power Distribution: Includes integrated circuitry to help manage power peaks and protect the servo motors from inconsistent voltage delivery.

• Verified Replacement Path: Officially succeeded by the E3HAB8801-1, ensuring that users have a documented path for long-term maintenance and hardware support.
