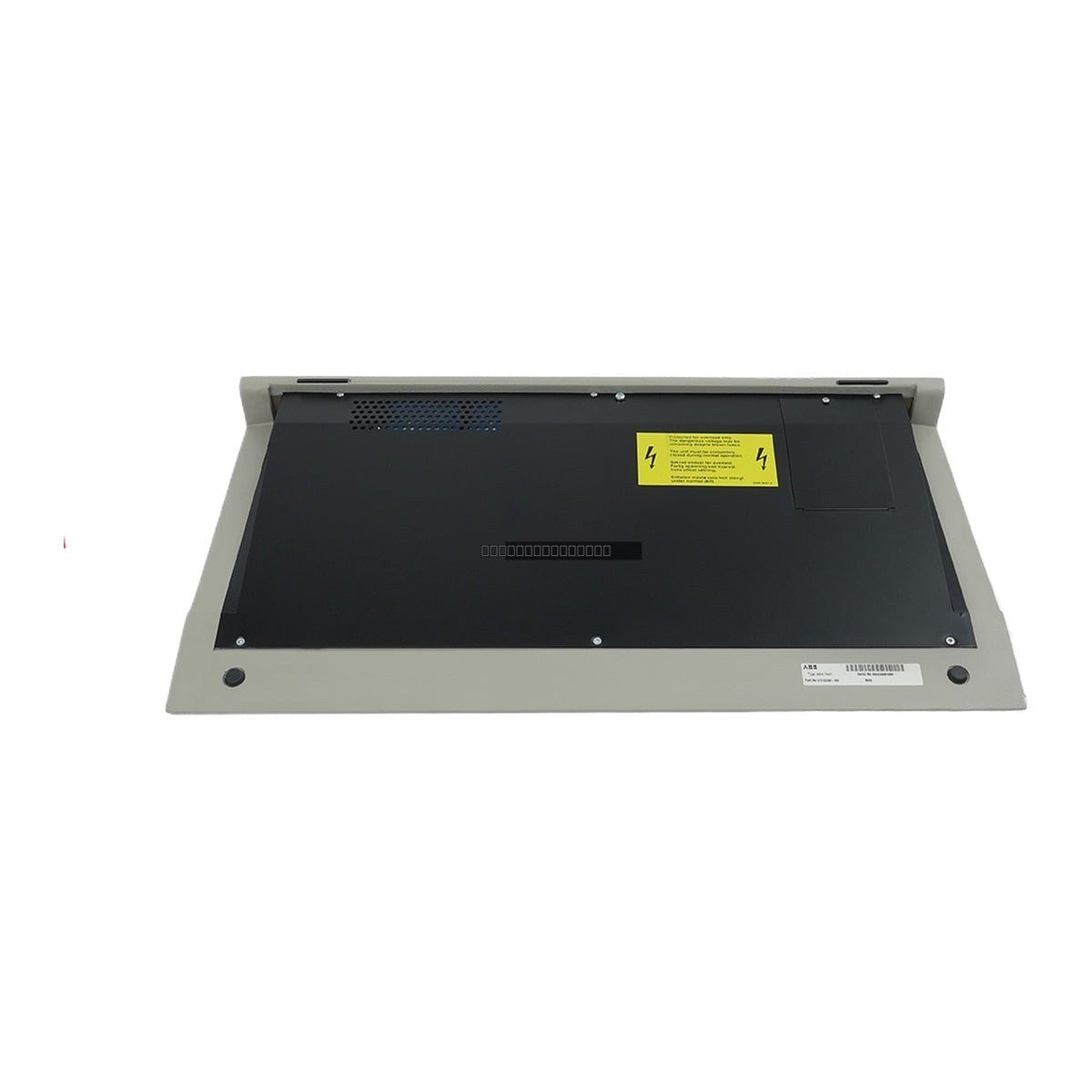

The ABB DSIH75VP (57310290-RD) is an industrial human-machine interface (HMI) keyboard engineered for integration with ABB control and drive systems. This unit provides a robust input interface for operators, facilitating command entry, system navigation, and parameter adjustments within demanding industrial environments.
Features
Industrial-grade key matrix design for reliable operation.
Full-function layout including numeric, function, and navigation keys.
Direct integration with ABB Master systems and compatible control architectures.
Designed for continuous duty in industrial control room settings.
Applications
Process control and alarm management in power generation facilities.
System configuration and monitoring in pulp and paper production lines.
Operator interface for heavy-duty drives in metals and mining applications.
Local terminal control for large-scale pump and compressor stations.
Technical Specifications
Model
DSIH75VP 57310290-RD
Supply Voltage
230 V AC
Frequency
50/60 Hz
Power Consumption
13 VA
Internal Protection
125 mA
Operating Temperature
0 degC to +50 degC
Storage Temperature
-20 degC to +70 degC
Humidity
5% to 95% non-condensing
Installation Guidelines
Ensure the control system is powered down before connecting or disconnecting the keyboard.
Access terminal clamps using a standard slotted or Phillips screwdriver.
Strip cables to 8-10 mm; use copper conductors sized between 0.5 mm² and 2.5 mm².
Secure wires to terminals with a torque of approximately 1.2 N⋅m to ensure reliable contact and prevent arcing.
Maintain proper ventilation in the control cabinet to stay within the specified operating temperature range.
FAQ
What is the primary function of the DSIH75VP?
The DSIH75VP serves as a dedicated operator input terminal for ABB automation systems, allowing for real-time interaction, setpoint adjustments, and alarm acknowledgment.
What are the power requirements for this unit?
The keyboard requires a 230 V AC power supply at 50/60 Hz with a power consumption of approximately 13 VA.
Is this unit compatible with legacy ABB systems?
Yes, it is designed for use with ABB Master systems and similar legacy industrial control architectures.
