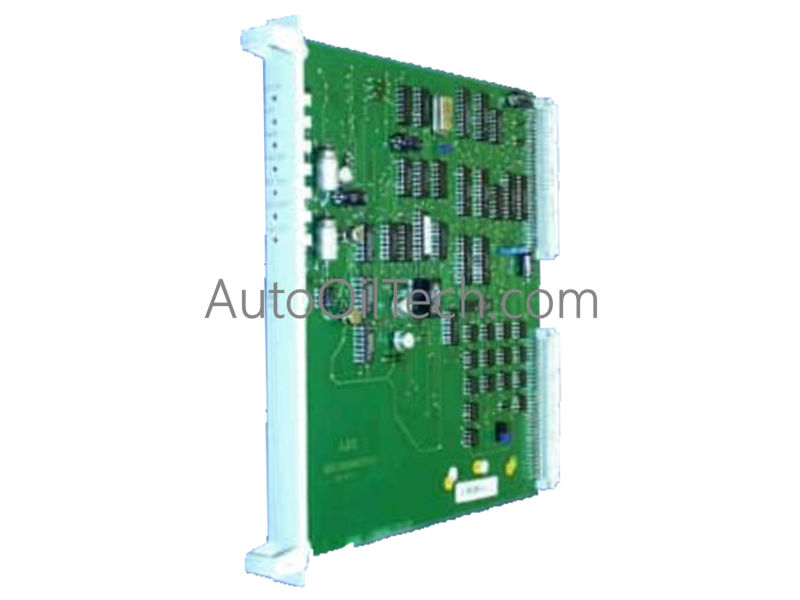

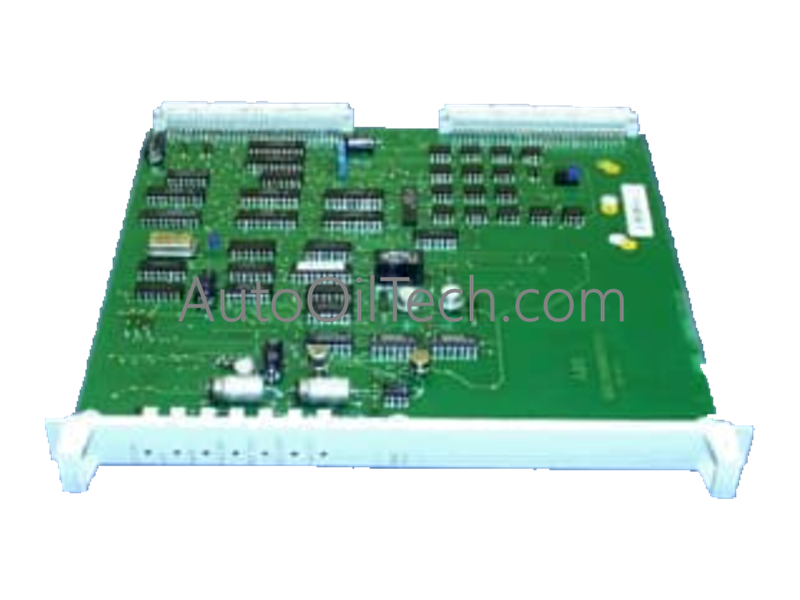

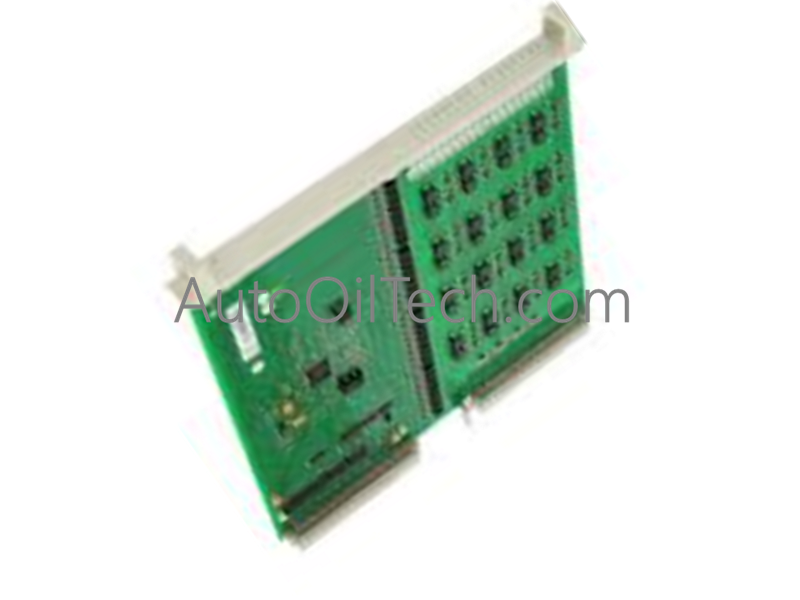

The ABB DSDO 110, also cataloged as the DSDO 110 Digital Output Board, operates as a dedicated hardware component for discrete signal execution tasks within ABB industrial automation and test system networks.
Hardware Specifications
Parameter
Specification
Model
DSDO 110
Brand
ABB
Part Number
57160001-K
Origin
Sweden
Weight
0.375 kg
Dimensions
Standard subrack configuration
Operating Temp
0 to +55 deg C (Standard industrial baseline)
Power Consumption
Subrack backplane-dependent
Product Type
I/O Module (Digital Output Board)
Technical Application
Test and inspection systems
Environmental Compliance
Product Not in WEEE Scope
Backplane Bus Communication Velocity and Network Determinism
The DSDO 110 manages binary field command signals through localized switching matrices, aligning channel updates with the real-time processing clock of the host controller. The board hardware handles output state changes without lowering the backplane bus communication velocity or dropping master network scan synchronization. This architectural insulation protects adjacent modules from output back-EMF spikes or high-frequency transition noise, ensuring full firmware flash compatibility and predictable I/O density scaling across the shared chassis backplane.
