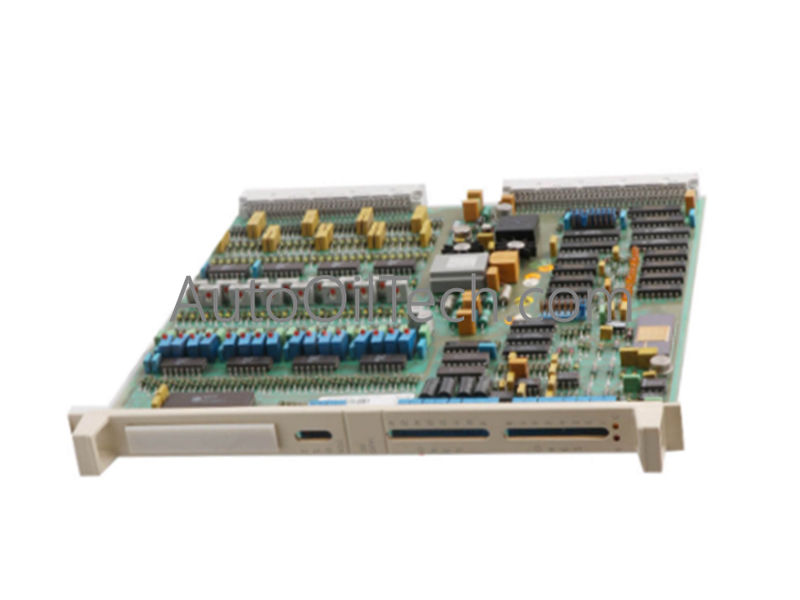

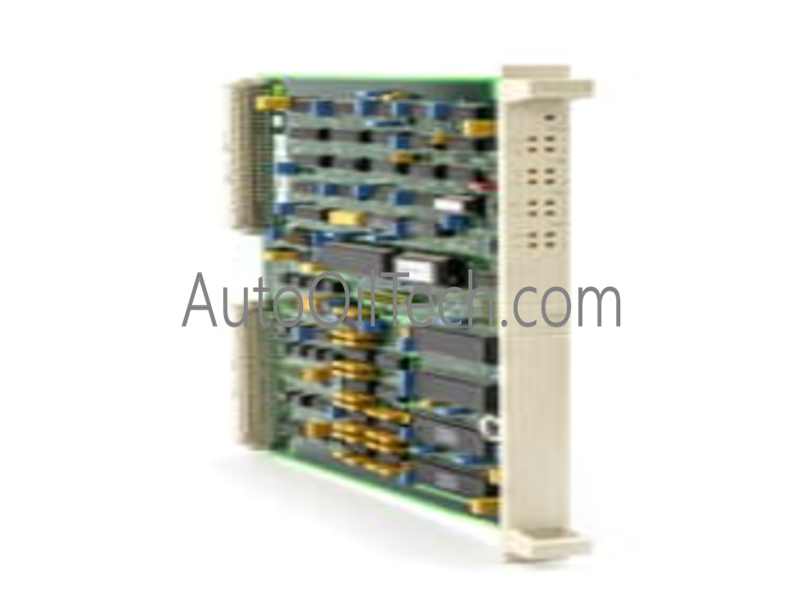

The ABB DSCA114, also cataloged as the DSCA114 Asynchronous Communication Board, operates as a dedicated hardware component for serial data translation and point-to-point interface routing within ABB industrial system networks.
Hardware Specifications
Parameter
Specification
Model
DSCA114
Brand
ABB
Part Number
DSCA114
Origin
Sweden
Weight
0.4 kg
Dimensions
Standard subrack configuration
Operating Temp
0 to +55 deg C (Standard industrial baseline)
Power Consumption
Subrack backplane-dependent
Product Type
Communication Modules
Communication Class
Asynchronous
Customs Tariff Number
85176200
Environmental Compliance
Product Not in WEEE Scope
Backplane Bus Communication Velocity and Network Determinism
Configured for unclocked serial data parsing, the DSCA114 manages data flow control and character frame encapsulation across local asynchronous networks. It insulates the master system controller from packet timing shifts by queueing serial datasets inside localized transceiving buffers. This design safeguards the primary backplane bus communication velocity from frame fragmentation penalties, ensuring that slow, peripheral serial devices cannot delay synchronous I/O density scaling cycles or impact the deterministic execution clocks of adjacent processing nodes.
