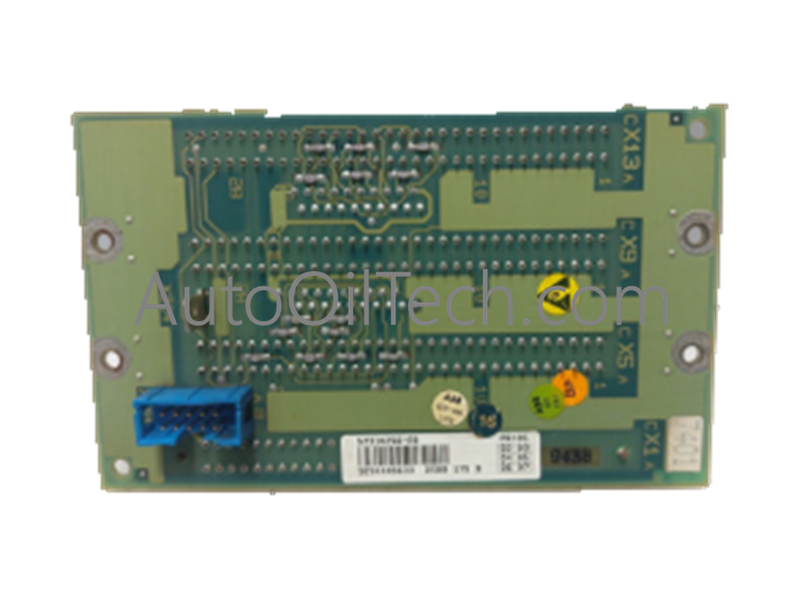

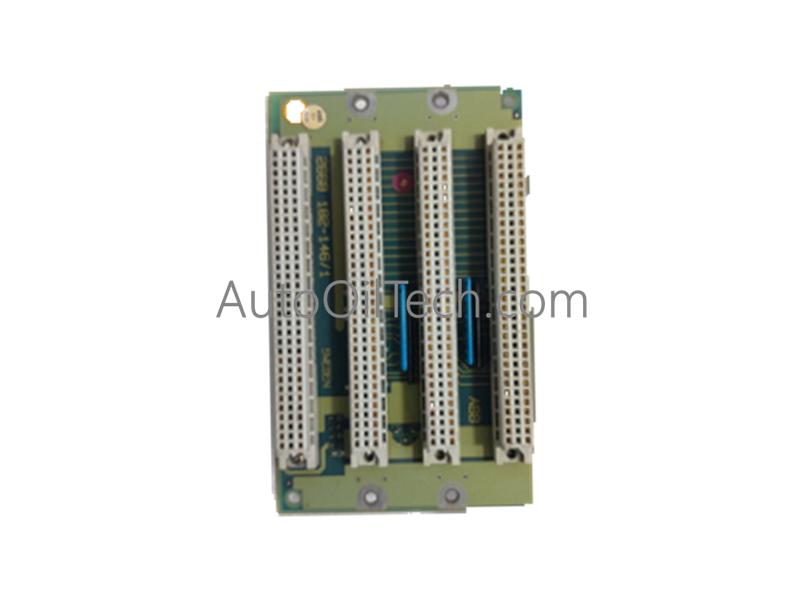

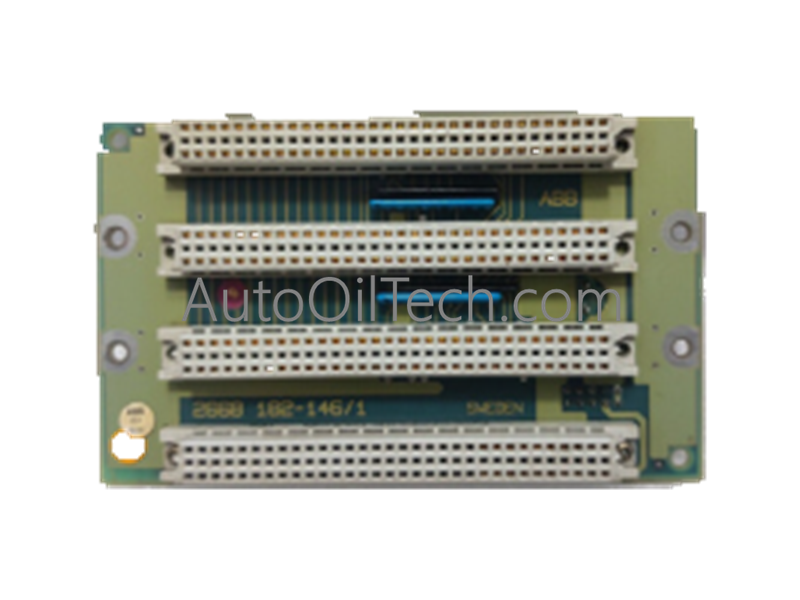

The ABB DSBB175, also cataloged as the DSBB175 Pulse Digital Signal Board, operates as a dedicated hardware component for high-performance pulse processing and logic execution tasks within ABB industrial automation system networks.
Hardware Specifications
Parameter
Specification
Model
DSBB175
Brand
ABB
Origin
Sweden
Weight
Internal component baseline
Dimensions
Standard subrack format
Operating Temp
50 to 80 deg C (Extended thermal rating)
Power Supply
115 - 220 VAC
Output Voltage
24 VDC (Configurable loop supply)
Signal Interfacing
Pulse digital input/output matrix
Supported Protocols
Modbus, Ethernet interfaces
Hot-Plug Support
Yes
Product Type
Digital I/O Cards
Backplane Bus Communication Velocity and Network Determinism
The DSBB175 interfaces natively with the system backplane to process rapid pulse train transitions and execute onboard programmable logic operations. It preserves strict backplane bus communication velocity constraints by buffering pulse metrics locally before transmitting synchronized status updates to the master controller. The integrated communication layer provides seamless Modbus and Ethernet routing without inducing phase jitter inside deterministic networks. Full firmware flash compatibility prevents channel-to-channel timing mismatches during high-density multi-node execution scenarios.
