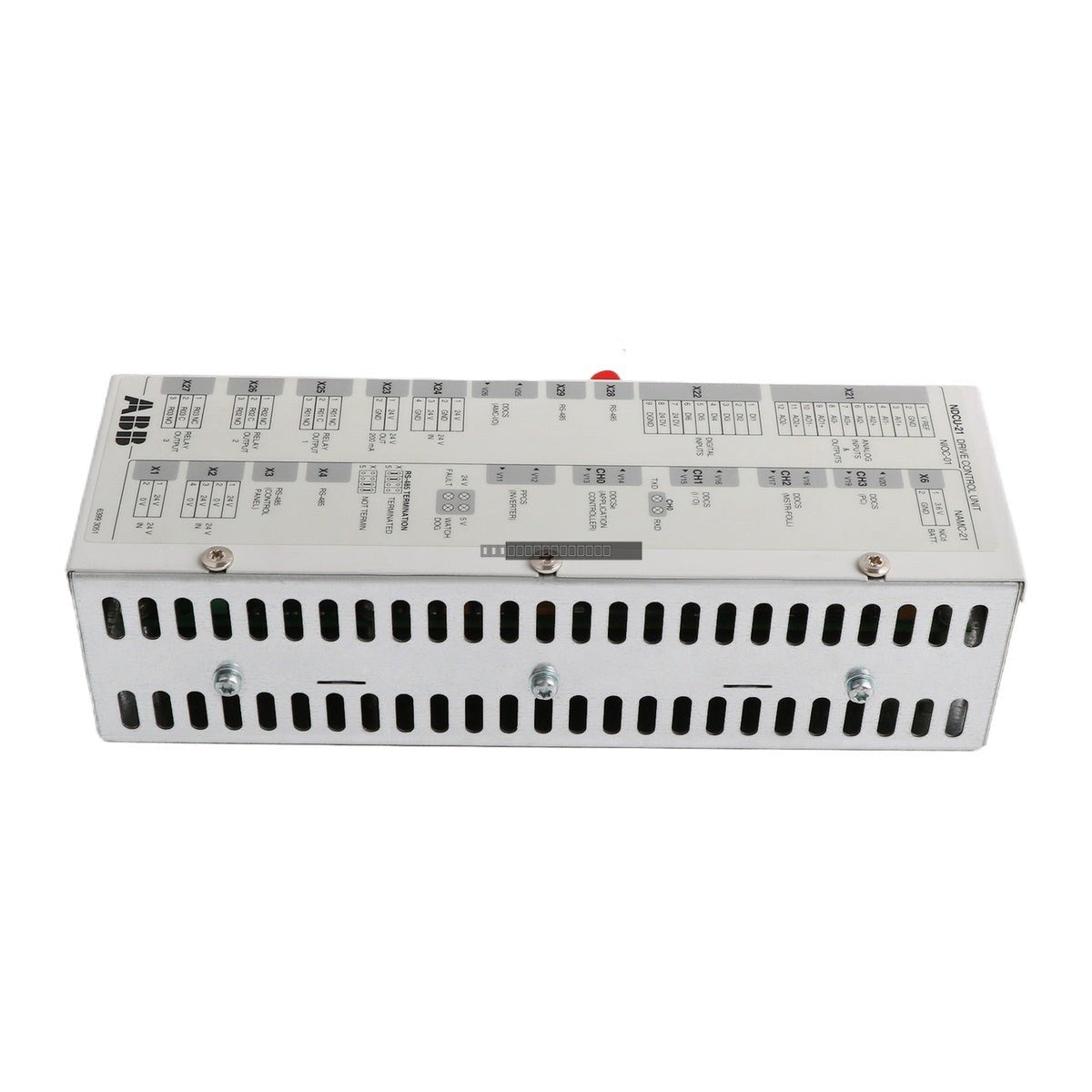

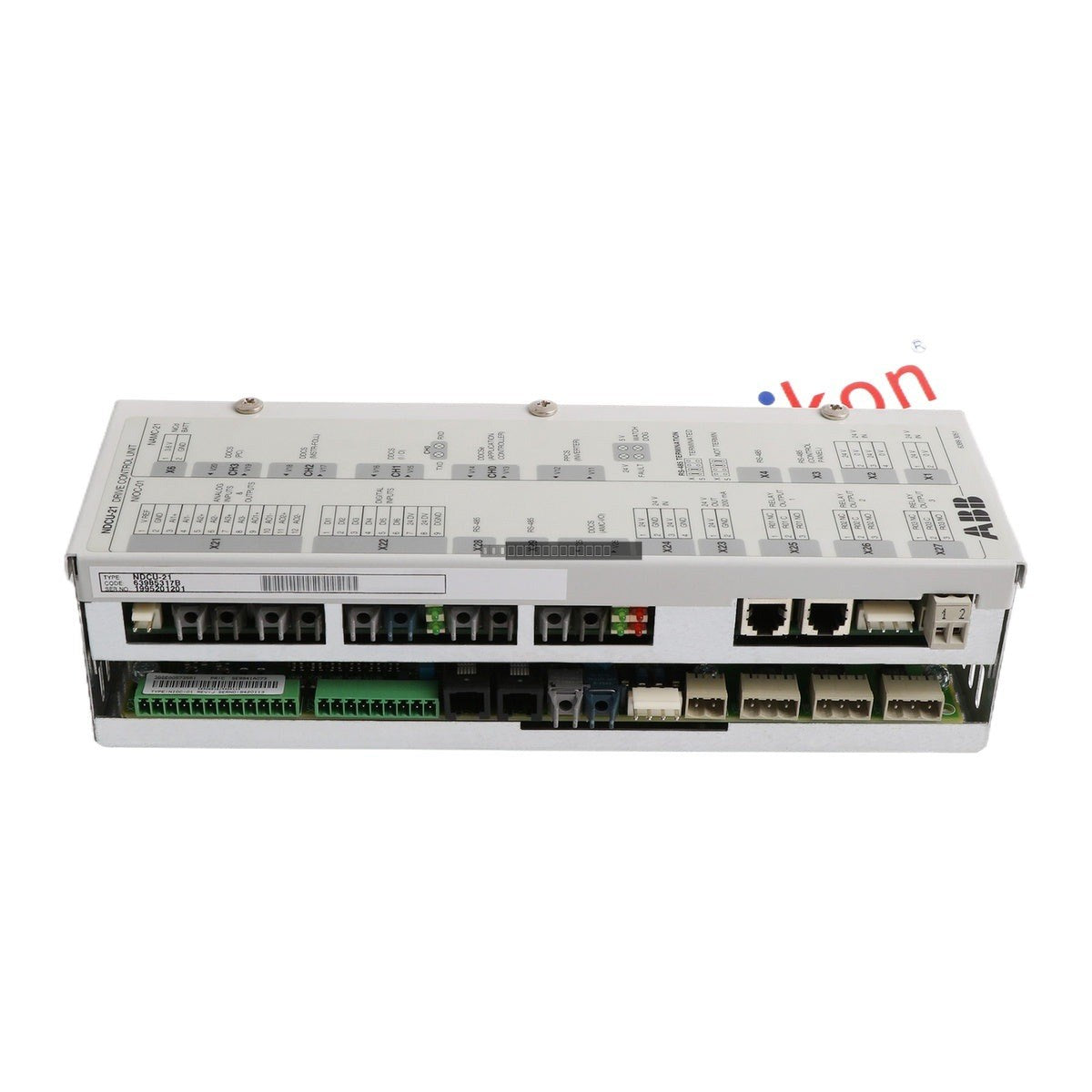

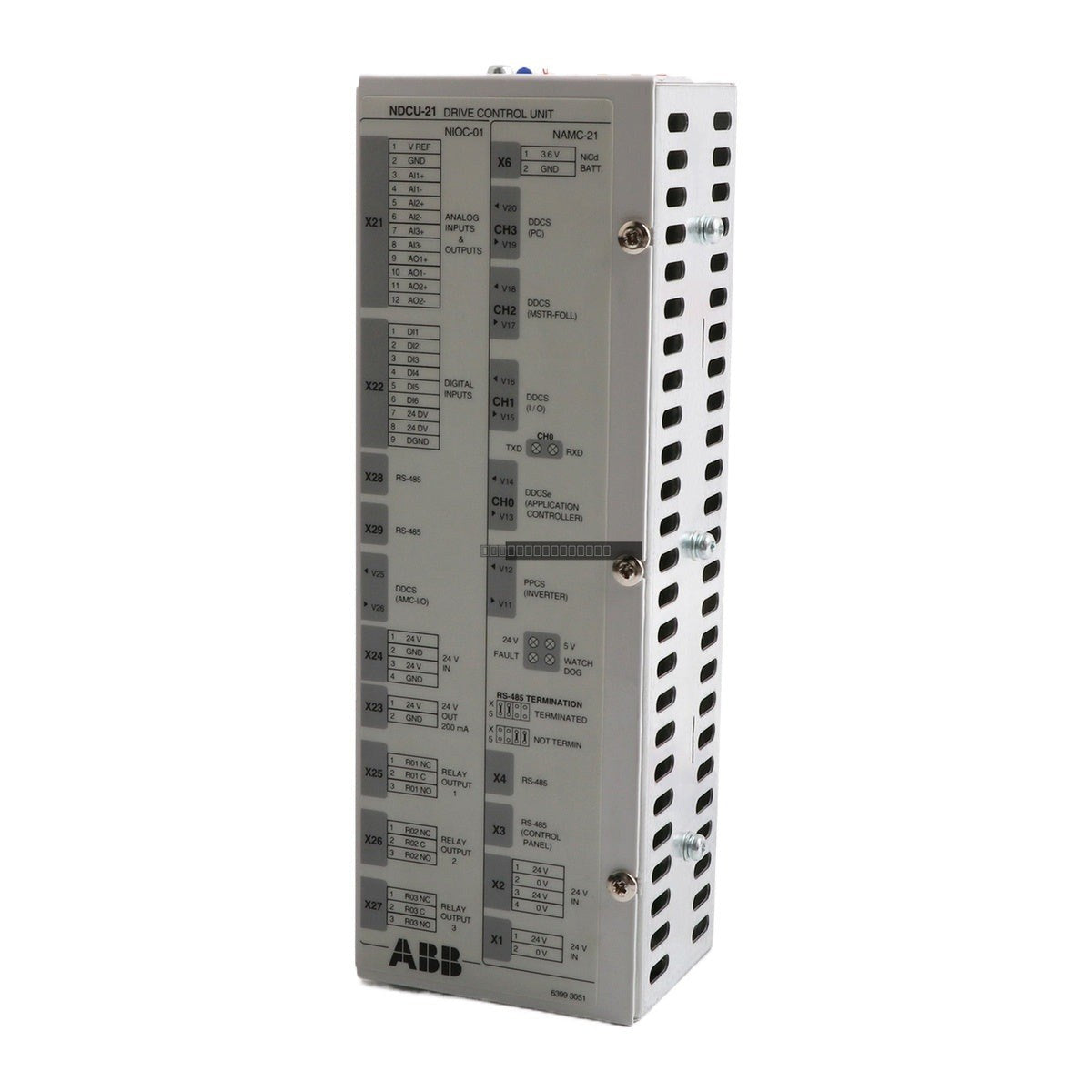

The ABB NDCU-21 (63985317B) is a dedicated Drive Control Unit designed for integration within ABB inverter drive systems. This unit serves as the central processing and control interface for managing drive operations, monitoring system status, and executing control logic. Please note that this specific model has been discontinued by the manufacturer.
Features
Centralized control processing for ABB inverter drive applications
Integrated 32 MB SDRAM for operational memory
512 kB FRAM for reliable data backup
Equipped with 6 digital inputs rated for 24 V DC operation
Designed for robust performance in industrial drive environments
Technical Specifications
Product Model
NDCU-21 63985317B
Manufacturer
ABB
Control Supply Voltage
24 V DC
Current Draw
0.7 A (typical)
Digital Inputs
6 x 24 V DC
Memory (RAM)
32 MB SDRAM
Memory (Backup)
512 kB FRAM
Isolation Rating
500 V DC
Operating Temperature
-10 degC to +55 degC
Storage Temperature
-40 degC to +85 degC
Installation Guidelines
Ensure the drive system is fully powered down and locked out before installing or removing the NDCU-21 unit.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
Verify that the 24 V DC control supply voltage is stable and within the specified operating range before energizing.
Ensure proper seating of the unit within the drive rack to maintain reliable electrical connections.
Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure signal integrity.
Maintain adequate ventilation around the drive enclosure to ensure the ambient temperature remains within the specified -10 degC to +55 degC range.
FAQ
Is the NDCU-21 still in production?
No, the ABB NDCU-21 63985317B has been discontinued by the manufacturer. It is typically sourced as a spare part for legacy drive systems.
What is the primary function of this unit?
The NDCU-21 acts as the control brain for the inverter drive, handling digital I/O processing and executing the control algorithms required for motor and drive management.
