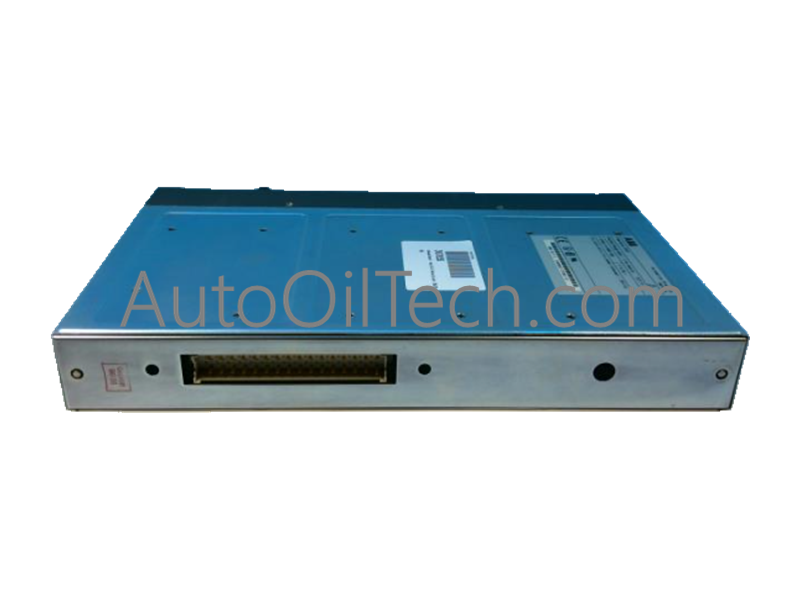

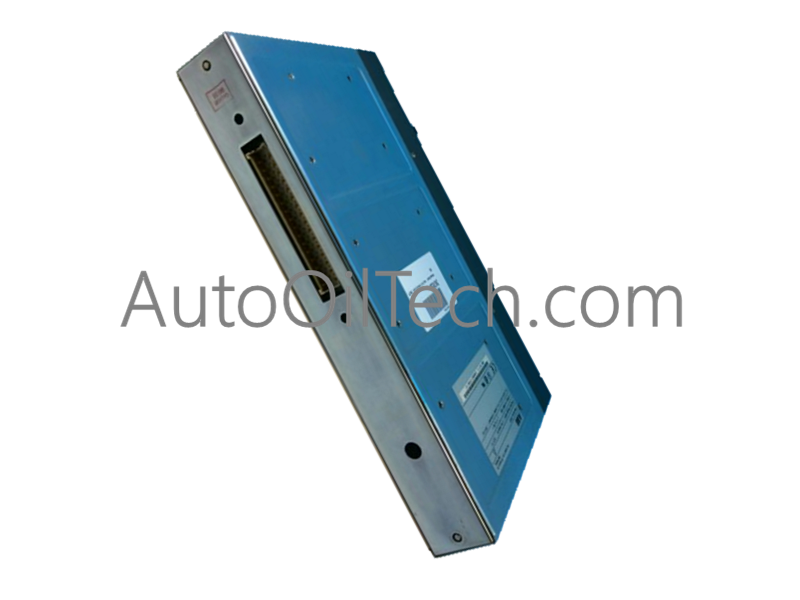

TheDLM01 (P37421-4-0369652)is a specialized, low-profile Link Module engineered by ABB for dedicated communication routing within legacyFreelance 2000Distributed Control System (DCS) platforms.
Technical Specifications
Manufacturer: ABB
System Series Family: Freelance 2000 Automation Architecture
Model Designation:DLM01(Also referenced asDLM 01)
Alternate Engineering Part Number:P37421-4-0369652
Device Classification: Network Link Interface Module / Bus Bridge
Nominal Rated Input Voltage: 24VDC
Maximum Power Consumption: 1 W ultra-low thermal draw
Device Category Mapping: PLCs / Machine Control Hardware
Product Net Weight: 3.44 lbs (Approx. 1.56 kg package weight / 1.3 kg net card weight)
Physical Boundary Footprint (W x H x D): Approx. 2.0 in x 13.0 in x 9.0 in
Country of Origin: Sweden
Industrial Application Scenarios
TheDLM01link interface module is typically deployed within the primary processor subracks of legacy chemical batch plants, automated assembly lines, water treatment facilities, and pharmaceutical mixing skids running on older ABB Freelance topologies. Within these frameworks, isolated process nodes must pool their sensory inputs and actuator statuses to ensure systemic interlocks remain coordinated. TheDLM01acts as the dedicated network link that spans these internal bus boundaries, ensuring that critical safety overrides and closed-loop speed parameters propagate down the backplane lines instantly without creating protocol communication traffic jams.
