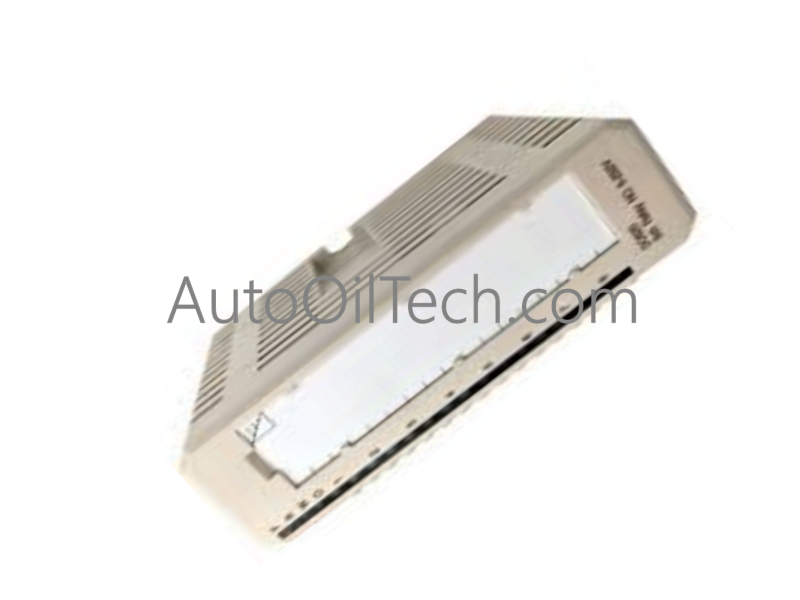

ABB DI810 Sinking Digital Input Card

Product Description

The ABB DI810 (Part Number: 3BSE008508R1) is a high-density 16-channel binary input card designed for the standard S800 I/O architecture. Utilizing a current sinking configuration, the module divides its input paths into two separate isolated groups of eight channels to prevent electrical fault cross-contamination across critical plant machinery links.

Technical Specifications

• Manufacturer: ABB

• Model Designation: DI810

• Article Reference: 3BSE008508R1

• I/O Subsystem: S800 Modular System Mechanics

• Channel Volume: 16 tracking channels divided into 2 isolated blocks of 8

• Input Signaling Type: Current sinking electronic circuit design

• Rated Operating Voltage: 24 V d.c. nominal loop energy

• Logic State Zero: Negative 30 V to positive 5 V terminal potential

• Logic State One: 15 V to 30 V terminal potential

• Internal Circuit Impedance: 3.5 kOhm input loop resistance

• Group Electrical Isolation: Groupwise isolation separating the 2 internal channel blocks from ground

• Programmable Digital Filters: 2 ms, 4 ms, 8 ms, or 16 ms selectable hardware configurations

• Loop Overcurrent Defense: Sensor supply routing current limited via structural matching MTU

• Maximum Field Cable: 600 meters (656 yards) maximum allowable line distance

• Insulation Voltage Rating: 50 V structural isolation threshold

• Dielectric Testing Proof: 500 V a.c. protective test validation

• Module Power Dissipation: Typical 1.8 W clean running heat output

• Modulebus Backplane Draw: 50 mA maximum draw from the 5 V rail

• Physical Module Dimensions: 45 mm width x 119 mm height x 111 mm depth

• Net Hardware Mass: 0.15 kg (0.33 lbs) base board weight

Industrial Application Scenarios

• Dual Segment Pump Control: Monitors run status and auxiliary fault contacts on separate redundant processing pumps without electrical noise bleeding between the lines.

• Valve Open Close Detection: Integrates physical micro-switch open and closed indicators directly from industrial rotary actuators to track fluid pathway status.

• Safety Gate Status Aggregation: Tracks multiple industrial enclosure safety switches and perimeter light curtains across high-speed packaging lines.

• Remote Breaker Monitoring: Routes binary auxiliary position telemetry from medium-voltage distribution panels directly into automated network loops.
