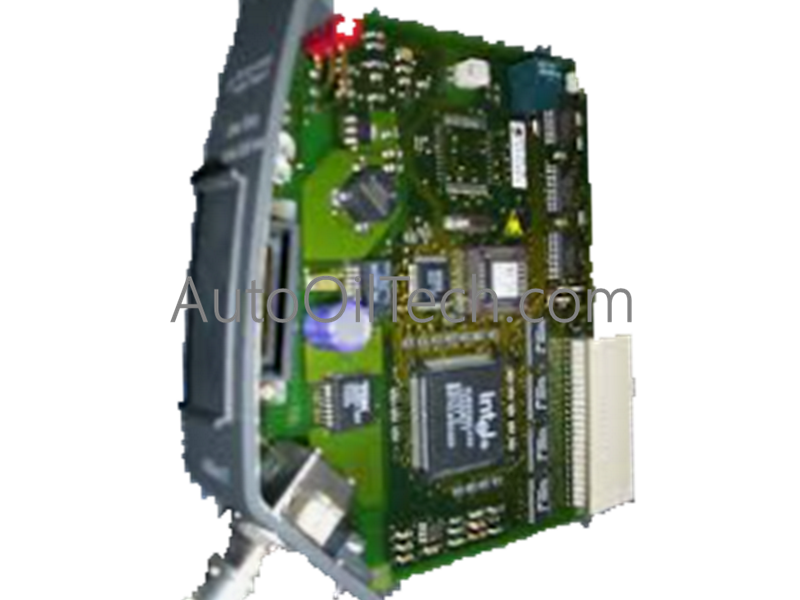

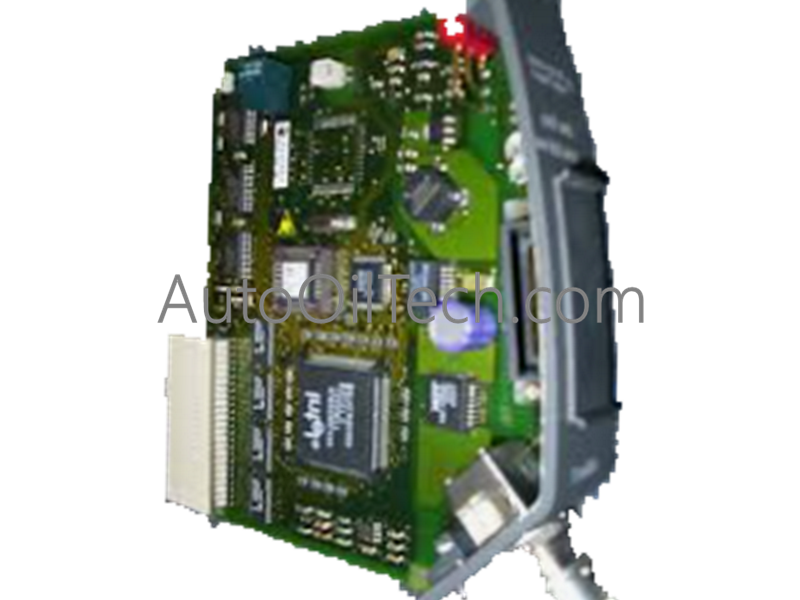

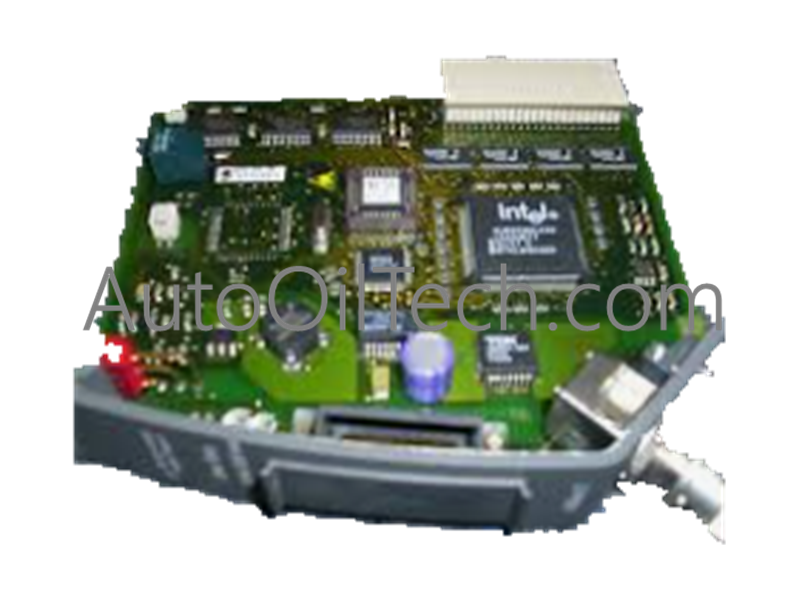

ABB DFE 02 Industrial Communication Module

Product Overview

The ABB DFE 02 is a dual-interface communication module engineered to bridge high-level automation networks with field-level drive systems. Supporting both Ethernet and PROFIBUS connectivity, this module enables seamless bidirectional data exchange within the ABB Freelance 2000 DCS and other Symphony-family architectures.

Technical Specifications

• Manufacturer: ABB

• Model Designation: DFE 02

• Module Type: Multi-Protocol Industrial Communication Module

• Network Interfaces: Dual-port Ethernet (RJ45) and PROFIBUS Fieldbus (Standard DB9)

• System Compatibility: Optimized for ABB Freelance 2000 DCS and ABB Industrial Drives

• Control Features: Integrated algorithms for dynamic speed and torque regulation

• Housing: Ruggedized industrial enclosure for high-vibration environments

• Power Requirements: Bus-powered via host drive or controller backplane

• Performance: Real-time data processing for high-speed motion and process control

• Mounting: Standard expansion slot or DIN-rail configuration (system dependent)

Key Advantages and Network Versatility

The DFE 02 stands out due to its hybrid connectivity, allowing a single module to interface with modern Ethernet/IP infrastructures and legacy PROFIBUS segments simultaneously. This flexibility is vital for facilities transitioning to "Smart Factory" standards without replacing established fieldbus hardware. The module’s internal processing power alleviates the load on the main controller by managing local drive control algorithms independently. Its industrial-grade construction is specifically rated for the thermal stress and electromagnetic interference (EMI) typical of motor control centers and heavy manufacturing floors.

ns

• Model: REM620E_1G (Relion® 620 Series).

• Motor Support: Asynchronous and Synchronous types.

• Protection Functions: Start-up monitoring, thermal overload, and fault clearance.

• Supervision: RTD (Temperature) and mA (Process) inputs.

• Communication: Native IEC 61850 (Editions 1 & 2).

• Redundancy: Supports HSR (High-availability Seamless Redundancy) and PRP (Parallel Redundancy Protocol).

• Digital Integration: GOOSE messaging and IEC 61850-9-2 LE (Sampled Values).

• Display: Large graphical HMI with customizable SLD.

• Interface: Local HMI and web-browser-based access.

Key Features and Engineering Advantages

• Advanced Digital Communication: Native support for GOOSE messaging allows for high-speed peer-to-peer communication between relays, reducing hardwired logic.

• Network Redundancy: Equipped with HSR and PRP protocols. This ensures zero-packet-loss communication even if a network path fails.

• Reduced Wiring Costs: Support for IEC 61850-9-2 LE allows the relay to receive digitized sensor values from merging units, significantly decreasing copper wiring requirements.

• Cyber-Secure Access: The web-browser-based HMI provides secure, remote access for diagnostics and event log analysis without specialized software.

• Withdrawable Design: The "plug-in" architecture permits the internal relay components to be removed for maintenance while the outer case stays wired in the panel.
