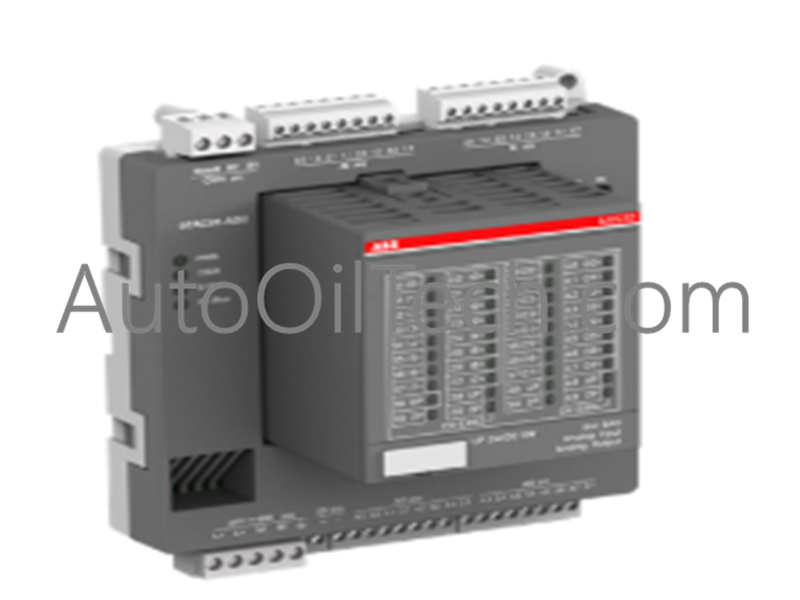

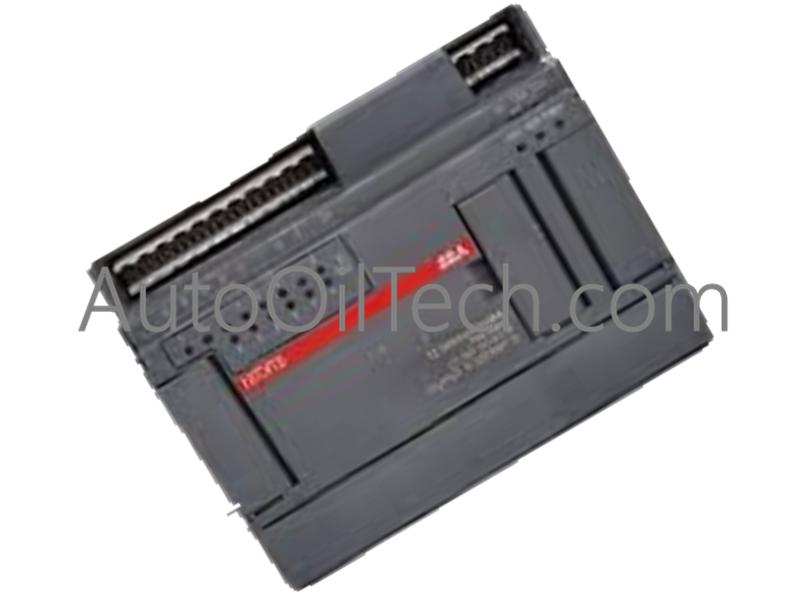

ABB DA501 Distributed Automation I/O Module

Product Overview

The ABB DA501 is a highly versatile digital and analog mixed I/O module designed for the AC500 and AC500-eCo PLC families. This "Distributed Automation I/O" component serves as a multi-functional interface, consolidating 16 digital inputs, 4 analog inputs, 2 analog outputs, and 8 configurable digital I/O points into a single compact footprint.

Technical Specifications

• Manufacturer: ABB

• Model Number: DA501

• Product ID: 1SAP250700R0001

• Digital Inputs: 16 Channels (24VDC, 5mA nominal)

• Configurable I/O: 8 Channels (Software configurable as DI or DO, 24VDC, 0.5A)

• Analog Inputs: 4 Channels (Voltage, Current, or RTD temperature sensors)

• Analog Outputs: 2 Channels (Voltage or Current)

• Signal Resolution: 13-bit (for both Analog Inputs and Outputs)

• Supply Voltage: 24VDC (Range: 20.4V to 28.8V DC)

• Output Type: Transistor (0.5A per channel)

• Delay Time: 0.1ms to 32ms (Configurable)

• Protection Rating: IP20 Housing

• Operating Temperature: 0°C to +60°C

• Storage Temperature: -40°C to +70°C

System Integration and Versatility

The DA501 (1SAP250700R0001) stands out in the AC500 range due to its "universal" analog inputs. Each of the 4 analog channels can be independently configured to handle standard voltage/current signals or direct RTD (Resistance Temperature Detector) inputs, eliminating the need for external signal conditioners. The 8 configurable digital points provide exceptional flexibility, allowing the module to adapt to changing field requirements without hardware swaps. Encased in an IP20-rated housing, the module is optimized for DIN rail mounting inside control cabinets, supporting distributed automation topologies via the FBP (FieldBus Plug) or local expansion bus.
