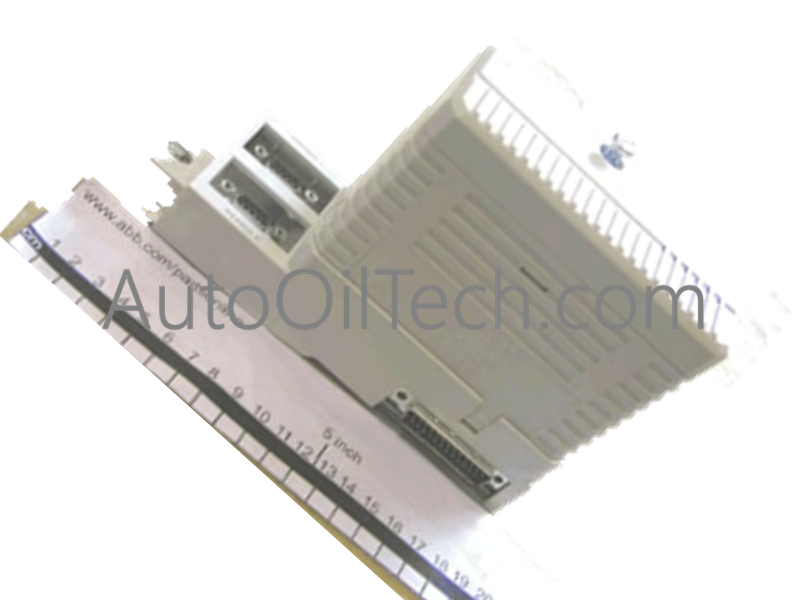

ABB CI867K01 3BSE043660R1 TCP Communication Kit

Technical Overview

The CI867K01 (Part Number: 3BSE043660R1) is a high-performance Modbus TCP/IP interface kit for AC 800M controllers. It includes the CI867 module and TP867 baseplate, providing seamless Ethernet-based connectivity with third-party equipment. The module supports both Master and Slave roles and features hot-swap capability for uninterrupted system maintenance.

Comprehensive Technical Specifications

• Manufacturer: ABB

• Model Designation: CI867K01

• Article Number: 3BSE043660R1

• Kit Components: CI867 Interface + TP867 Baseplate

• Protocol Support: Modbus TCP/IP

• Role Support: Master and Slave functionality

• Hot Swap Capability: Yes

• Redundancy Support: Yes

• Dimensions: 59 mm x 186 mm x 127.5 mm (W x H x D)

• Net Weight: 0.7 kg (Shipping Weight: approx. 1.18 kg)

• Mounting: DIN-rail via TP867

• Origin: USA

• Condition: Brand New / In Stock

• Warranty: 12 Months

• Logistics Hub: Dispatched from Xiamen or Shanghai

Typical Applications

• Third-Party Integration: Connecting AC 800M controllers to PLCs, frequency converters, and power meters via Ethernet.

• DCS Expansion: Enabling high-speed data exchange between ABB Ability™ System 800xA and external automation hardware.

• Redundant Networking: Implementing dual CI867 modules for critical communication paths where uptime is vital.

• Energy Management: Interfacing with smart meters and electrical protection relays using standard Modbus TCP protocols.
