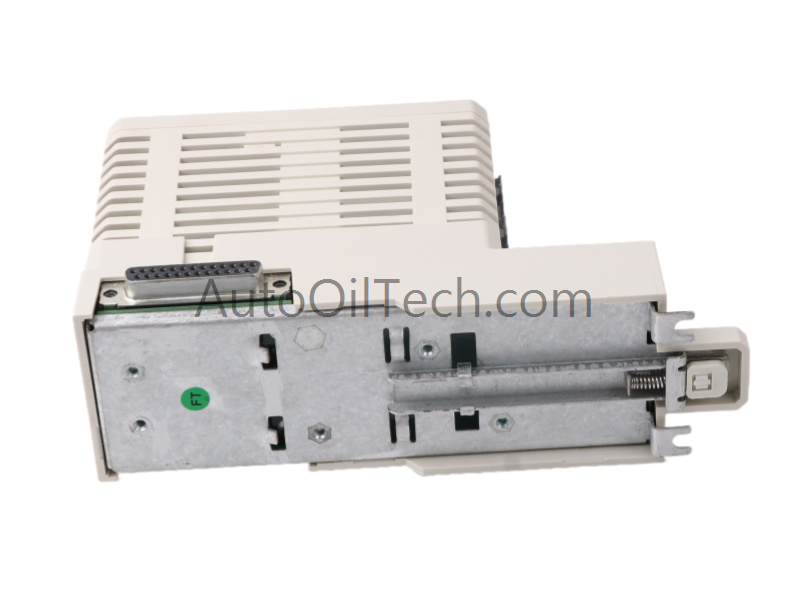

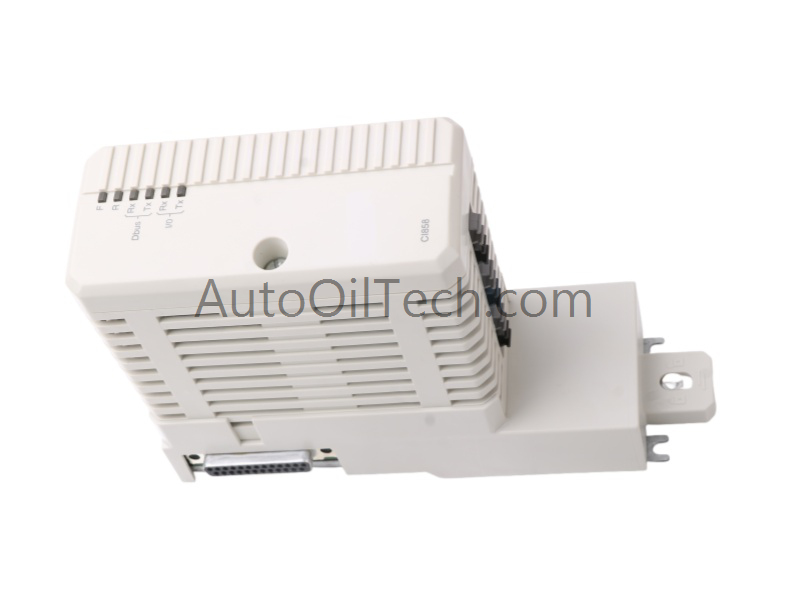

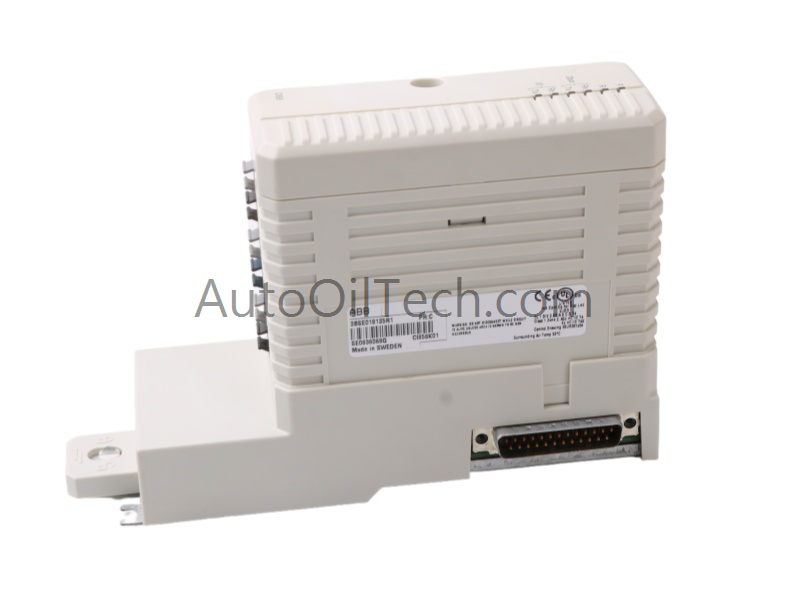

The ABB CI858K01 3BSE018135R1 DriveBus Interface Module is engineered for integration with the AC 800M controller family. It enables high-speed communication between ABB controllers and drives using the proprietary DriveBus protocol, supporting up to 24 drives from a single module.
Technical Specifications
Parameter
Value
Model Number
CI858K01 3BSE018135R1
Module Type
DriveBus Interface Module
Manufacturer
ABB
Condition
Brand New
Range of Product
ABB
Weight
0.7 kg
Dimensions
18.5 × 8.5 × 30.5 cm
HS Code
8537101190
Minimum Order Quantity
1
Product Origin
Sweden
System Compatibility
DCS, AC 800M
Communication Service
Ethernet router
Transmission Speed
8 Mbit/s
Drive Support
Up to 24 drives per module
Power Supply
Via CEX-Bus (no external supply needed)
Hot-Swap Capability
Supported
Package Includes
CI858 module + TP858 baseplate
Lifecycle Status
Active
Functional Description
The ABB CI858K01 3BSE018135R1 module provides a dedicated communication gateway for ABB drives. With 8 Mbit/s transmission speed, it ensures rapid and reliable data exchange for real-time control. Hot-swap functionality allows replacement or addition without shutting down the controller rack, maximizing uptime.
Key Benefits
Supports up to 24 drives from a single module
High-speed 8 Mbit/s communication ensures real-time control
Hot-swap functionality reduces downtime and improves maintainability
Compact design simplifies installation in control racks
