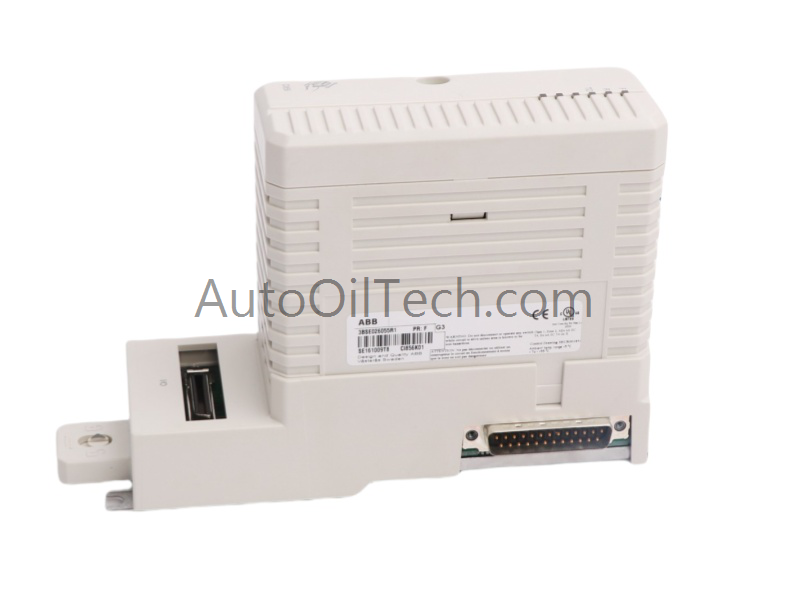

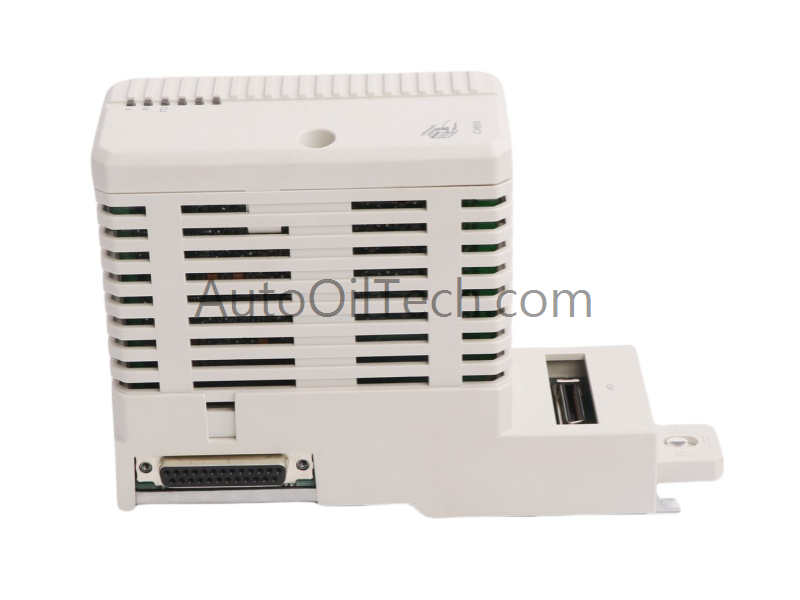

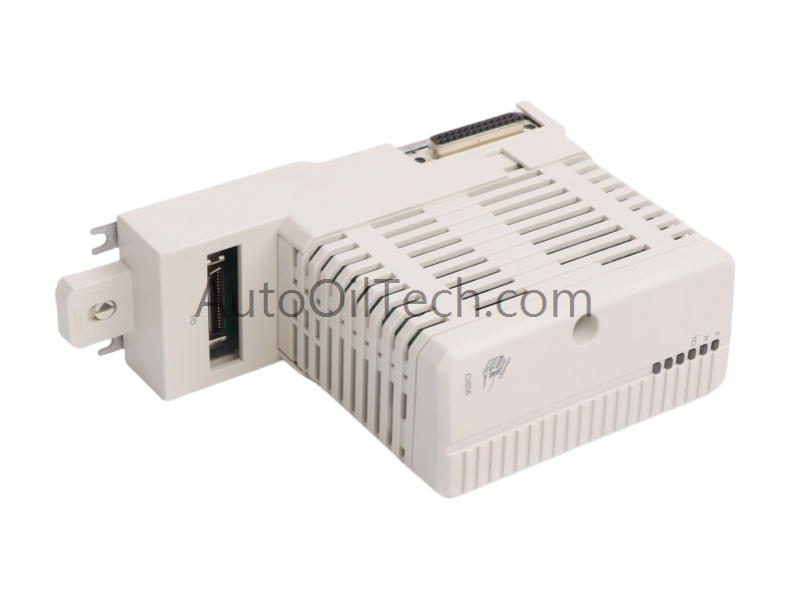

The ABB CI856K01 3BSE026055R1 S100 I/O Interface Kit is a robust communication module designed to bridge the AC800M controller with the S100 I/O system. It ensures seamless data exchange, high reliability, and efficient performance in complex industrial automation environments.
Technical Specifications
Parameter
Value
Model Number
CI856K01 3BSE026055R1
Module Type
S100 I/O Interface Kit
Manufacturer
ABB
Condition
Brand New
Range of Product
Advant OCSx800A
Weight
2.36 kg
Dimensions
14.5 × 18 × 15 cm
HS Code
8537101190
Minimum Order Quantity
1
Product Origin
Sweden
System Compatibility
DCS, AC800M, S100 I/O
Communication Service
Ethernet router
Connector Type
36-pin Miniribbon
Power Consumption
120 mA at 24 V
Supported Units
Up to 12 on CEX bus
Operating Temperature
Up to 55 °C
Protection Class
IP20
Compliance
EN60529, IEC 529
Lifecycle Status
Active
Functional Description
The ABB CI856K01 3BSE026055R1 module provides a complete integration solution, including the CI856 communication interface and TP856 baseplate. It supports up to 12 units on the CEX bus, making it suitable for medium to large-scale automation projects. Its compact design, low power consumption, and IP20 protection ensure reliable operation in harsh industrial environments.
Key Benefits
Seamless integration between AC800M controllers and S100 I/O systems
Supports up to 12 units on the CEX bus for scalability
Compact and sturdy design simplifies installation and maintenance
Low power consumption improves energy efficiency
IP20 protection ensures durability in industrial environments
