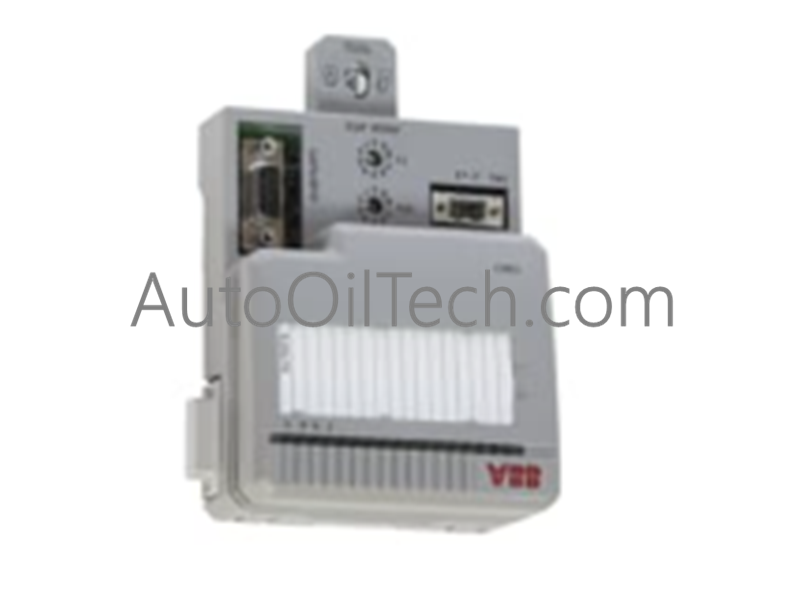

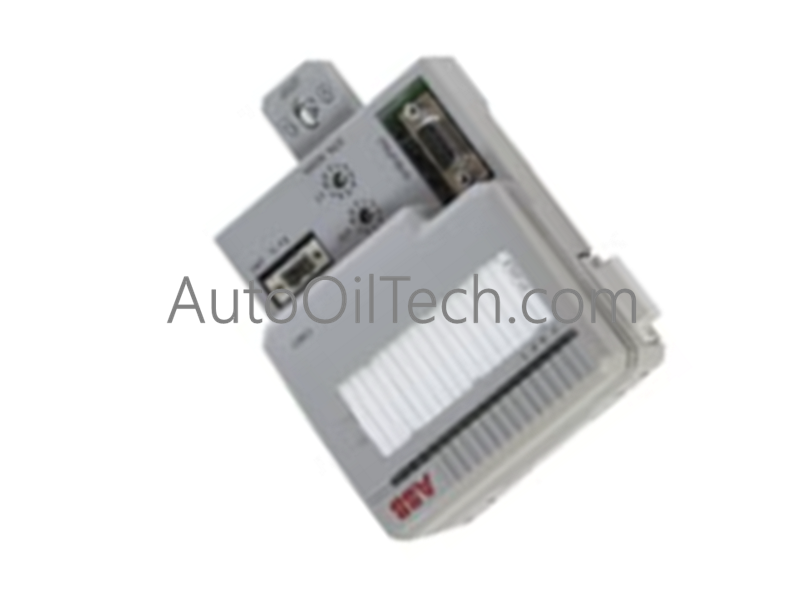

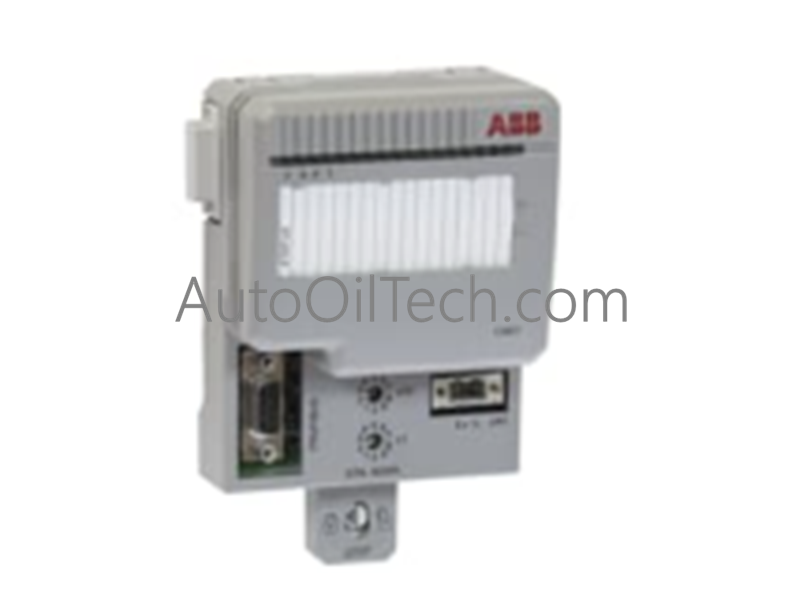

TheCI801-eA(Part Number:3BSE022366R2) is a high-performance PROFIBUS DP-V1 Field Communications Interface (FCI) for the S800 I/O system. It acts as a specialized communication head, allowing S800 I/O modules to connect seamlessly to PROFIBUS DP masters. This interface manages the I/O data exchange, configuration, and diagnostics for an entire cluster of I/O modules, providing a robust and scalable solution for distributed automation within the ABB Ability™ System 800xA and other control environments.
Technical Specifications
Manufacturer: ABB
Type Designation:CI801-eA
Product ID:3BSE022366R2
Product Type: Communication Module (FCI)
Protocol: PROFIBUS DP-V1
Included Accessories: 1 pc Power Supply Connector, 1 pc TB807 Modulebus Terminator
Input Voltage: 24 VDC (19.2 – 30 VDC)
Max I/O Modules: Up to 12 modules per cluster (using Optical ModuleBus)
Data Rate: Up to 12 Mbit/s
Dimensions: Compact DIN-rail mount design
Net Weight: 0.32 kg
Condition: New with Original Package
Warranty: 12 Months
Shipping Port: Shanghai, Xiamen
Typical Applications
Distributed I/O Systems: Serving as the communication gateway for S800 I/O clusters on a PROFIBUS network.
Process Automation: Integrating remote instrumentation and field signals into AC 800M or third-party PROFIBUS masters.
Redundant Configurations: Supporting high-availability I/O setups in critical infrastructure like power plants and chemical processing.
Factory Modernization: Efficiently bridging field-level S800 I/O data to supervisory control layers via Industrial Ethernet or Fieldbus.
