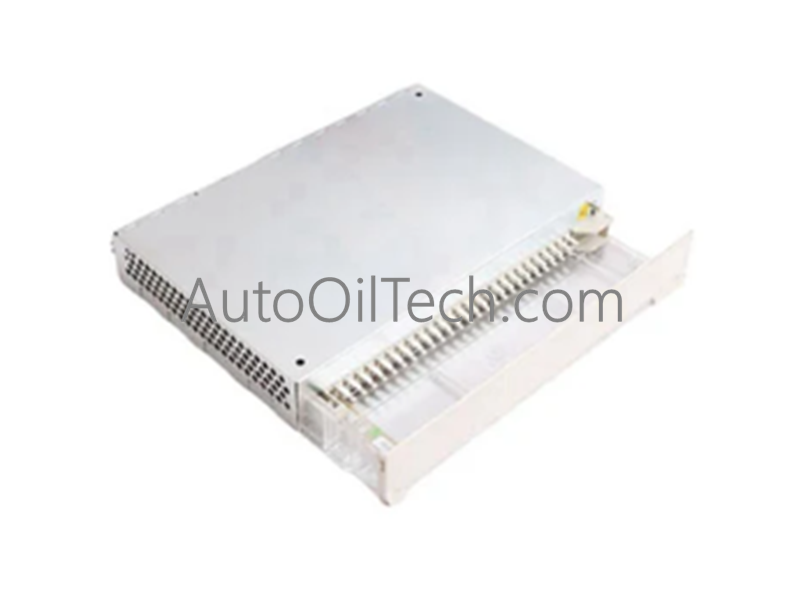

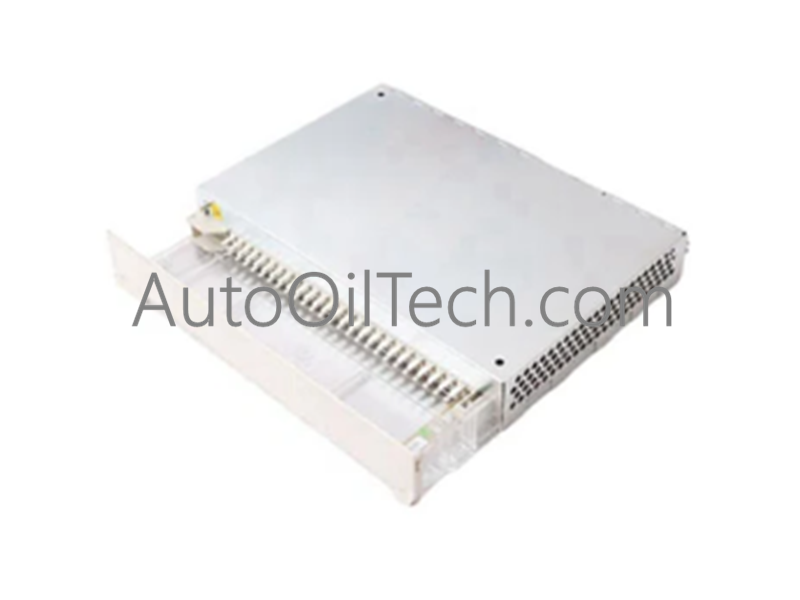

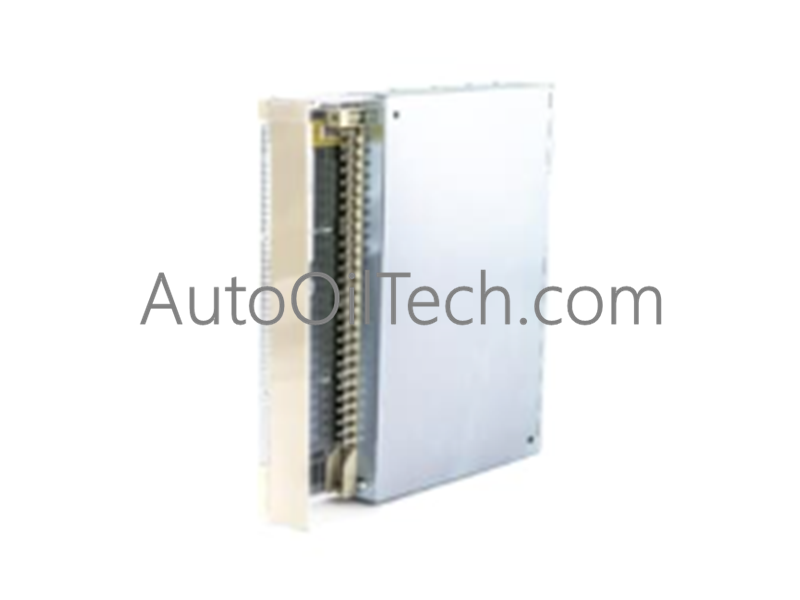

The ABB CI615, also cataloged as the CI615 IOB_A Bus Coupler, serves as the primary CI615 Bus Coupler utilized to execute deterministic I/O extension routing across ABB Advant Master Process Control System platforms.
Hardware Specifications
Parameter
Specification
Model
CI615
Brand
ABB
Origin
Sweden
Weight
1.2 kg
Dimensions
40 mm x 273 mm x 252 mm (W x H x D)
Operating Temp
0 to +55 deg C (Standard industrial baseline)
Power Consumption
Subrack backplane-dependent
Product Type
Communication Module (IOB_A Bus Coupler)
Product ID
3BHT300024R1
Battery Requirement
0 batteries
Environmental Compliance
RoHS Exempted (Article 2(4)), WEEE Category 5
Backplane Bus Communication Velocity and Network Determinism
The CI615 IOB_A Bus Coupler interfaces directly with the master system chassis to extend local communication lines to external I/O units. The hardware processes bus traffic over localized deterministic loops, mitigating propagation delays between processing modules and extended I/O termination racks. Direct backplane communication velocity matches the target system bus requirements, and the module features firmware flash compatibility with existing ABB Advant Master networks to prevent channel-to-channel communication collisions.
