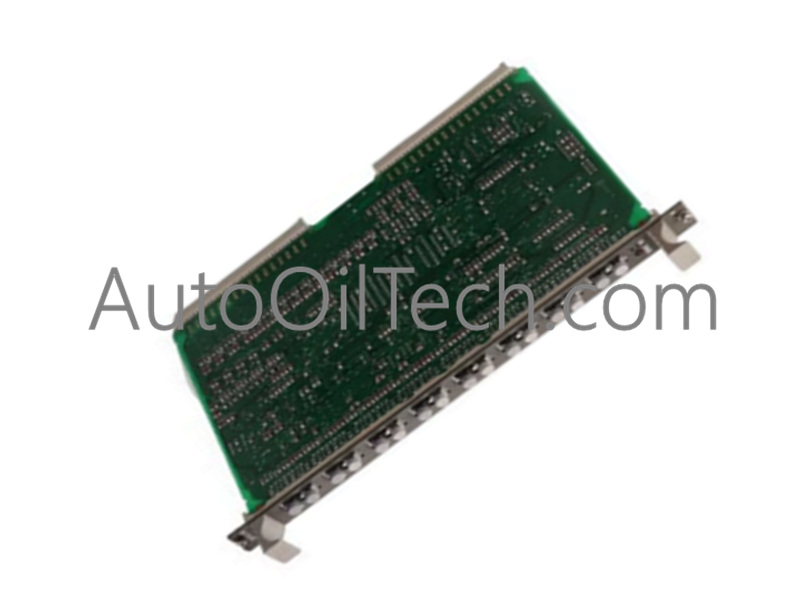

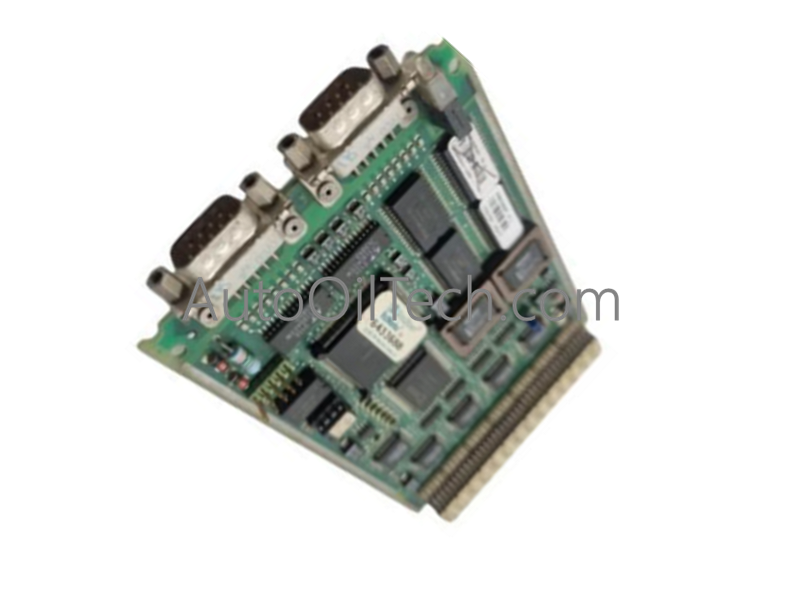

ABB CI522A Advant Fieldbus Interface Module

Product Description

The ABB CI522A (Part Number: 3BSE018283R1) is a high-speed communication interface module designed for the S800 I/O subsystem. It establishes an active bridge between an Advant Fieldbus 100 (AF100) network and remote I/O modules, managing real-time data deterministic traffic and station address routing across complex process control systems.

Technical Specifications

• Manufacturer: ABB

• Model Designation: CI522A

• Product Number: 3BSE018283R1

• Hardware Classification: Communication Interface Module

• Network Protocol Link: Advant Fieldbus 100 (AF100) high-speed industrial protocol

• Subsystem Architecture Compatibility: S800 I/O distributed modular expansion racks

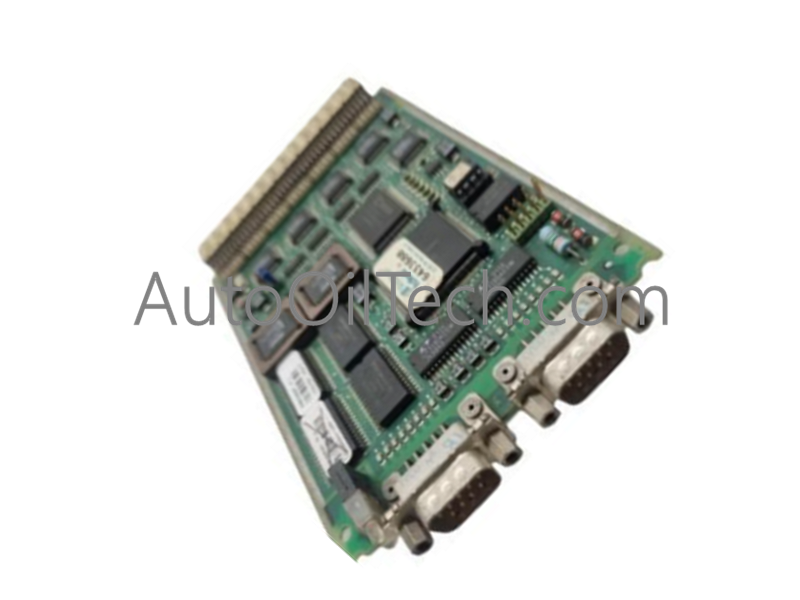

• Interface Port Configuration: Dual integrated sub-D communication connection terminals

• Data Transmission Integrity: Real-time deterministic cyclic traffic management loops

• Physical Module Width: 2.7 cm narrow form factor frame

• Physical Module Length: 26.5 cm deep chassis integration depth

• Physical Module Height: 12.0 cm board profile height

• Net Hardware Weight: 0.2 kg (0.44 lbs) base unit mass

• Gross Shipping Footprint: 1.5 kg (3.31 lbs) protected heavy-duty export package

Industrial Application Scenarios

• Distributed Plant Telemetry: Links remote S800 I/O instrumentation nests back to central Advant Controller station processors over long-distance AF100 coaxial or twisted-pair buses.

• Redundant Control Interfacing: Serves as the primary communication node inside decentralized power generation control cabinets to route real-time diagnostic parameters.

• Process Line Synchronization: Connects distributed automated valve clusters in chemical facilities, ensuring synchronous transmission of process variable inputs and control outputs.

• Subrack Communication Expansion: Integrates into existing field enclosures where localized automation growth requires immediate connectivity to a master distributed control system.
