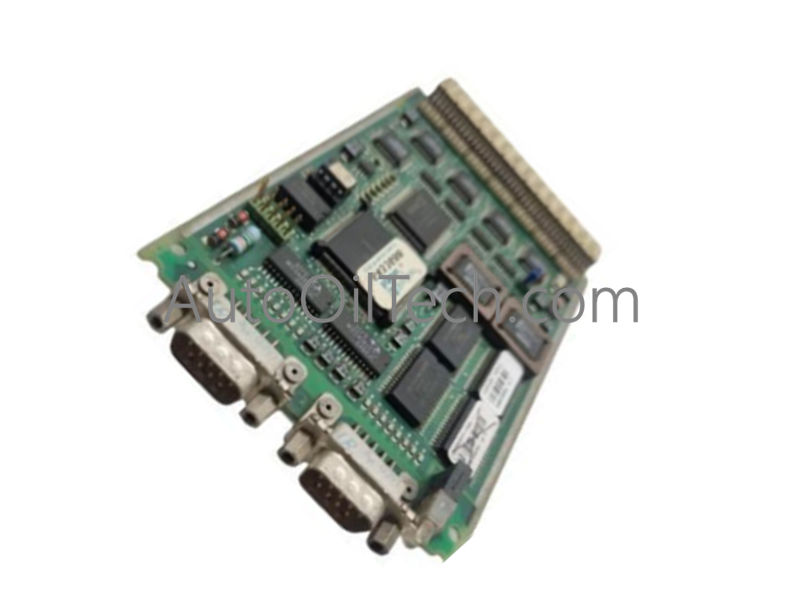

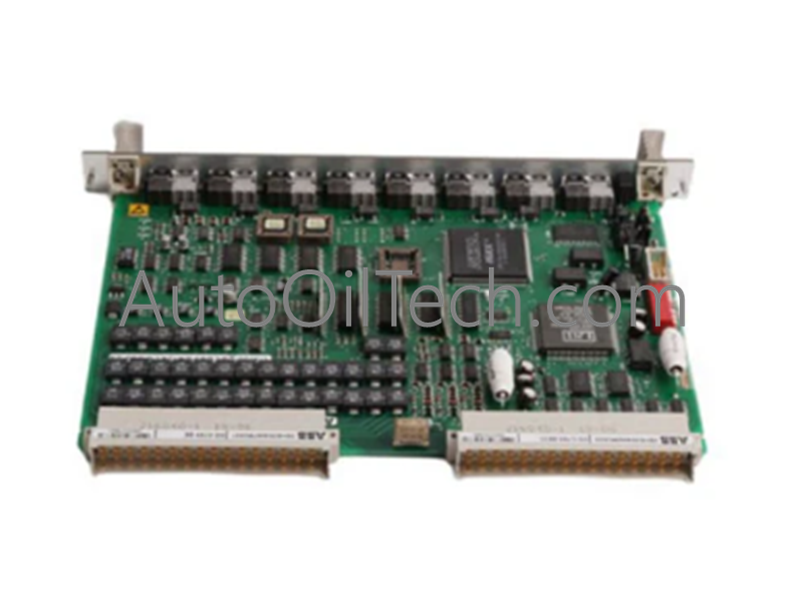

TheABB CI513is a high-performance communication module designed for theAdvant OCSandS800 I/Osystems. Its primary function is to serve as an interface within anIEEE 802.3 LANenvironment, facilitating robust data exchange between controllers and distributed I/O stations.
Wide Temperature Resilience:One of the most significant engineering features of theCI513is its exceptional operating temperature range from-40 to +85 degrees Celsius. This makes it an ideal choice for extreme industrial environments, such as outdoor power distribution cabinets, offshore platforms, or unconditioned utility rooms where standard commercial electronics would fail.
IEEE 802.3 Standard Compliance:By adhering to the IEEE 802.3 standard, the module provides a reliable physical and data link layer for LAN communications. This ensures seamless integration with modern industrial Ethernet infrastructures while maintaining the high reliability required for Advant OCS operations.
High-Density Form Factor:With a thickness of only 18 mm and weighing just 0.2 kg, the CI513 allows for maximum port density within a control cabinet. This is particularly beneficial for system retrofits where cabinet space is at a premium but increased communication capacity is required.
