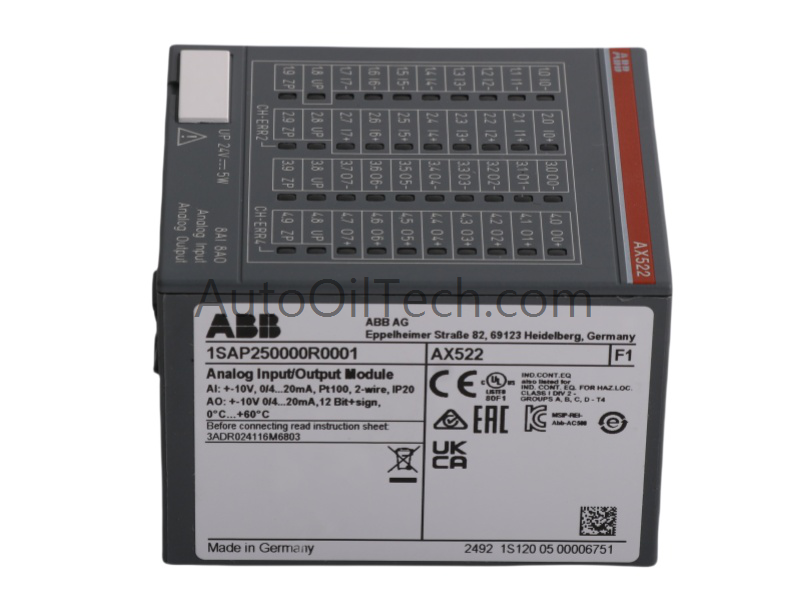

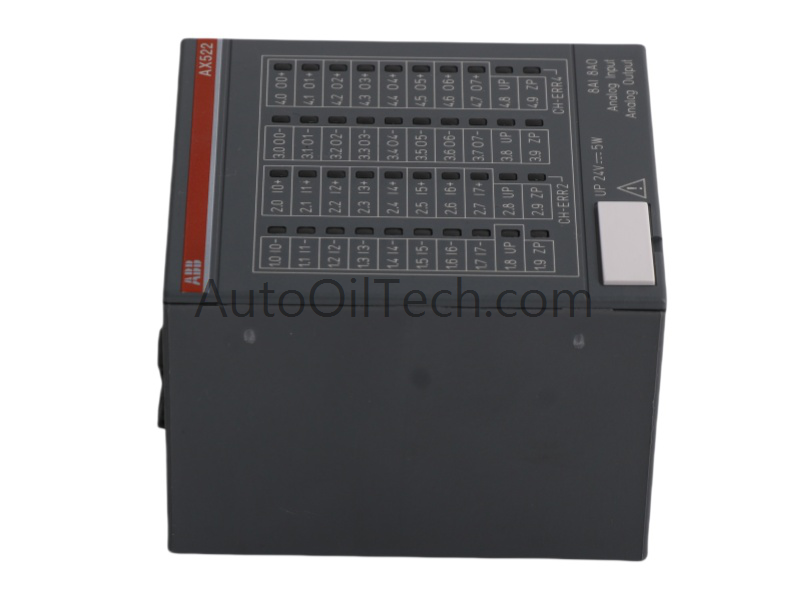

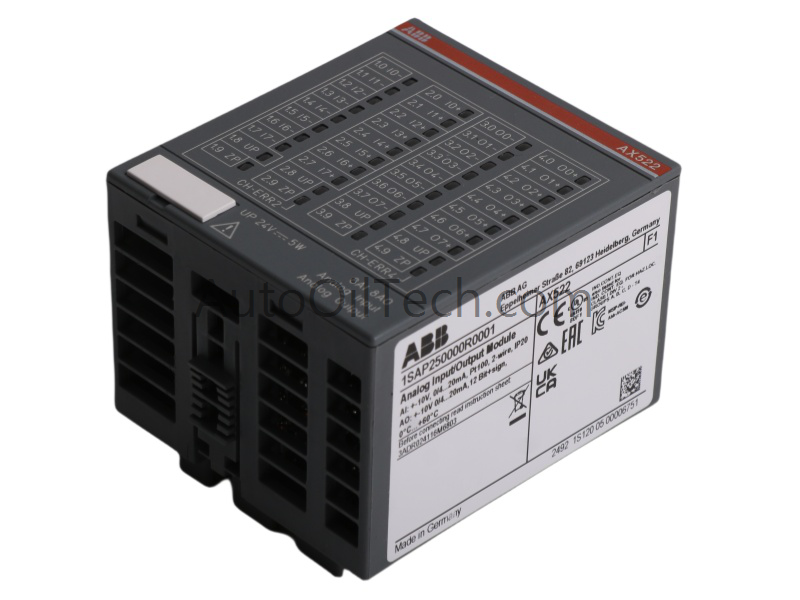

The ABB AX522 1SAP250000R0001 Analog I/O Module expands the flexibility of the AC500 automation platform. With 8 analog inputs and 8 analog outputs, it supports multiple signal types including voltage, current, and RTD sensors, ensuring precise measurement and control for complex industrial applications.
Technical Specifications
Parameter
Value
Model Number
AX522 1SAP250000R0001
Manufacturer
ABB
Module Type
Analog Input/Output Module
System Compatibility
DCS / AC500 PLC series
Analog Inputs
8 (voltage, current, RTD: PT100, PT1000, NI1000)
Analog Outputs
8 (4 current, 4 voltage)
Current Output Ranges
0–20 mA / 4–20 mA
Voltage Output Ranges
±10 V
Input Voltage Ranges
-10 to +10 V, 0 to +10 V
Resolution
12-bit plus sign
Power Supply
24 V DC
Protection
IP20
Installation
DIN rail, horizontal/vertical (derating in vertical)
Dimensions
8.5 × 7 × 7 cm (approx. 54 × 76 × 68 mm)
Weight
0.14 kg
HS Code
8537101190
Product Origin
Sweden
Condition
Brand New
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active
Communication Service
Ethernet router
Functional Description
The ABB AX522 1SAP250000R0001 provides precise 12‑bit resolution for analog signals, ensuring accurate monitoring and control. With flexible input/output ranges and support for RTD sensors, it is suitable for process automation, building systems, and manufacturing environments. Compact and lightweight, it installs easily on DIN rails with IP20 protection.
Applications and Compatibility
The ABB AX522 1SAP250000R0001 Analog I/O Module is widely used in scalable automation systems. Engineers rely on its flexible I/O capacity, compact design, and seamless integration with ABB’s Control Builder PS501‑PROG software to implement reliable Industry 4.0 solutions.
