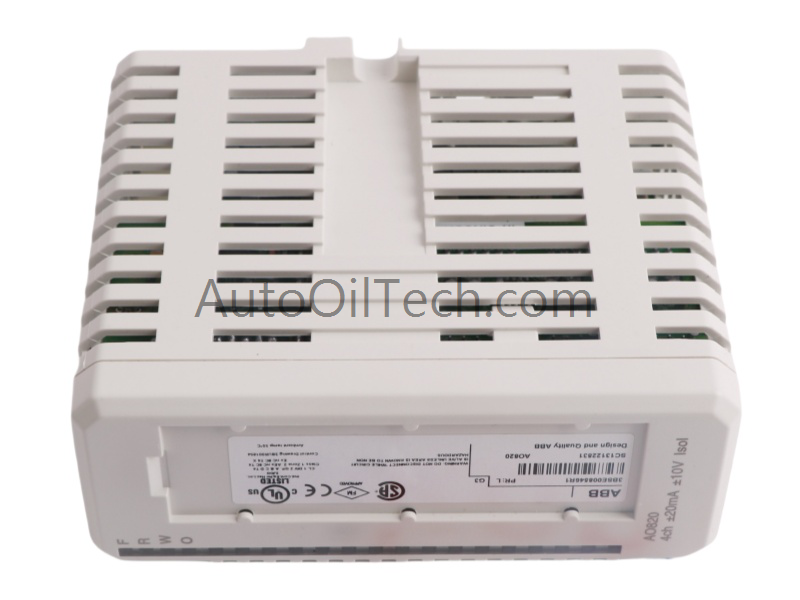

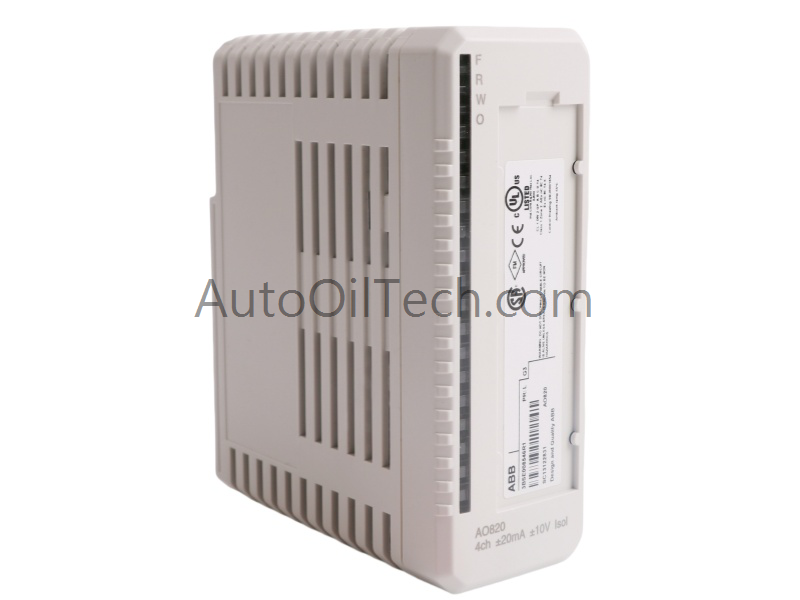

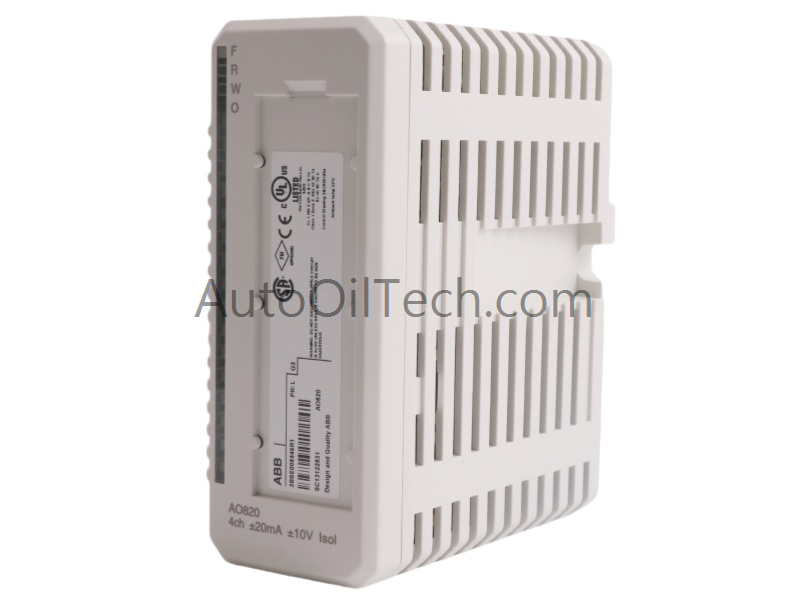

The ABB AO820 3BSE008546R1 Analog Output Module delivers precise process control with four configurable bipolar channels. Each channel can be set for current or voltage output, ensuring flexibility in demanding automation environments.
Technical Specifications
Parameter
Value
Model Number
AO820 3BSE008546R1
Manufacturer
ABB
Module Type
Analog Output
System Compatibility
DCS / S800 I/O
Channels
4 bipolar analog outputs
Current Ranges
-20 to +20 mA, 0–20 mA, 4–20 mA
Voltage Ranges
-10 to +10 V, 0–10 V, 2–10 V
Resolution
12-bit (including sign)
Rise Time
Diagnostics
Open-circuit check, voltage supervision
Output Load (Current)
≤550 Ω
Output Load (Voltage)
≥5 kΩ
Temperature Drift
≤90 ppm/°C
Insulation Voltage
50 V
Power Dissipation
6 W
Dimensions
4.5 × 11 × 12 cm
Weight
0.16 kg
HS Code
8537101190
Product Origin
Sweden
Condition
Brand New
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active
Communication Service
Ethernet router
Functional Description
The ABB AO820 3BSE008546R1 provides galvanically isolated outputs with robust diagnostics for reliable operation. Its fast rise time and ±15% under/over range capability ensure accurate control. Separate terminals for current and voltage outputs simplify safe wiring and configuration.
Applications and Compatibility
The ABB AO820 3BSE008546R1 Analog Output Module is widely used in process automation, energy management, and manufacturing systems. Engineers rely on its precision, speed, and diagnostic features to maintain stable and efficient control in ABB S800 I/O architectures.
