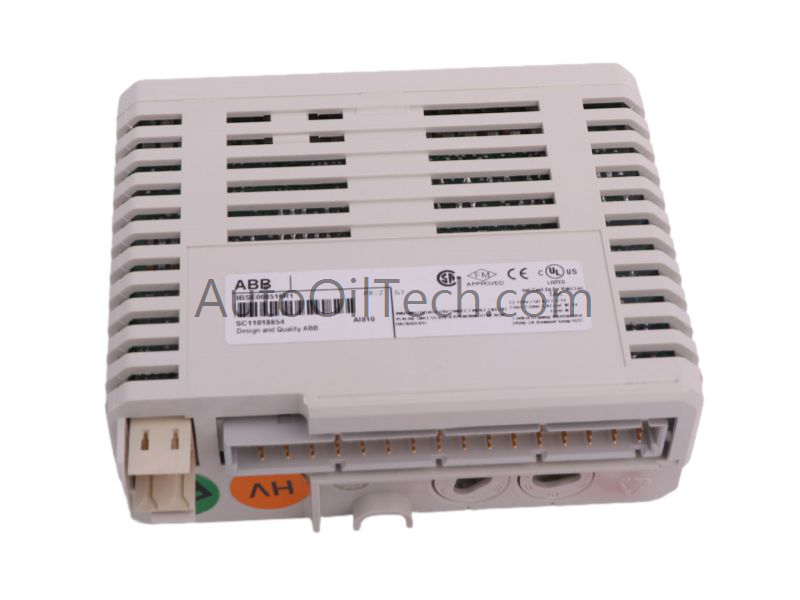

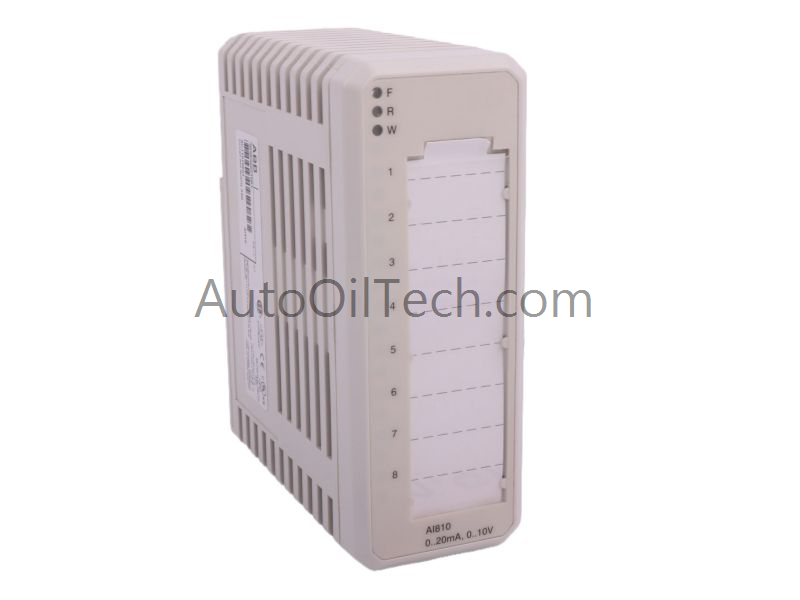

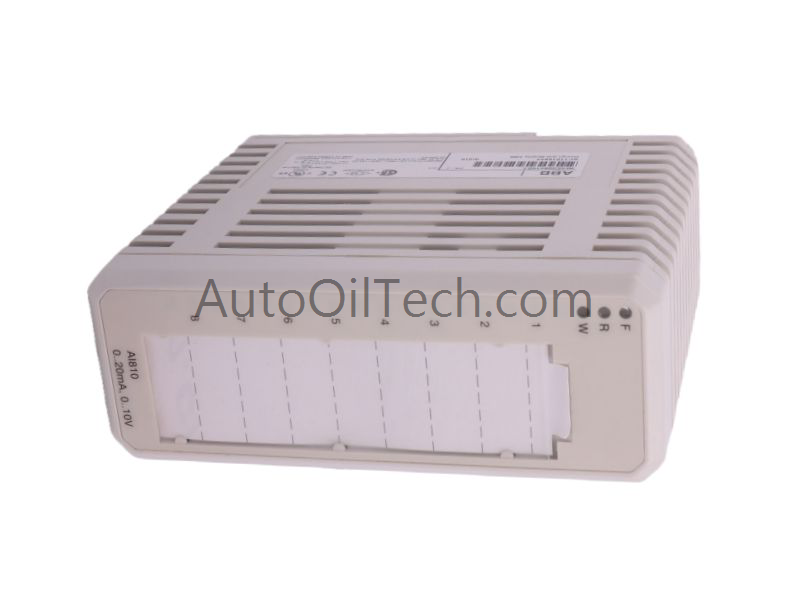

The ABB AI810 3BSE008516R1 Analog Input Module belongs to the S800 I/O series and is engineered for precise signal acquisition in industrial automation. With flexible voltage and current input configurations, robust isolation, and HART protocol support, it ensures accurate and reliable analog data processing.
Technical Specifications
Parameter
Value
Model Number
AI810 3BSE008516R1
Module Type
Analog Input Module
Manufacturer
ABB
Condition
Brand New
Range of Product
Advant-800xA
Weight
1.08 kg
Dimensions
18.5 × 8.5 × 30.5 cm
HS Code
8537101190
Minimum Order Quantity
1
Product Origin
Sweden
System Compatibility
DCS
Communication Service
Ethernet router
Inputs
8 channels, voltage (0–10V, 2–10V), current (0–20mA, 4–20mA)
Resolution
12-bit
Accuracy
±0.1% of full scale
Isolation
2500V channel-to-channel
Protection
Short-circuit, input shunt up to 30V
Protocol Support
HART
Operating Temperature
-20°C to +60°C
Protection Class
IP20
Lifecycle Status
Active
Functional Description
The ABB AI810 3BSE008516R1 module provides high-precision analog input acquisition with configurable channels for voltage and current signals. Its 12-bit resolution and ±0.1% accuracy ensure dependable measurement quality. Channel-to-channel isolation rated at 2500V prevents interference, while built-in protections safeguard against short circuits and overvoltage conditions.
Key Benefits
Flexible input configuration for voltage and current signals
High accuracy with 12-bit resolution and ±0.1% error margin
Robust isolation ensures reliable operation in noisy environments
Built-in protections enhance durability and system safety
HART protocol support enables advanced diagnostics and smart integration
