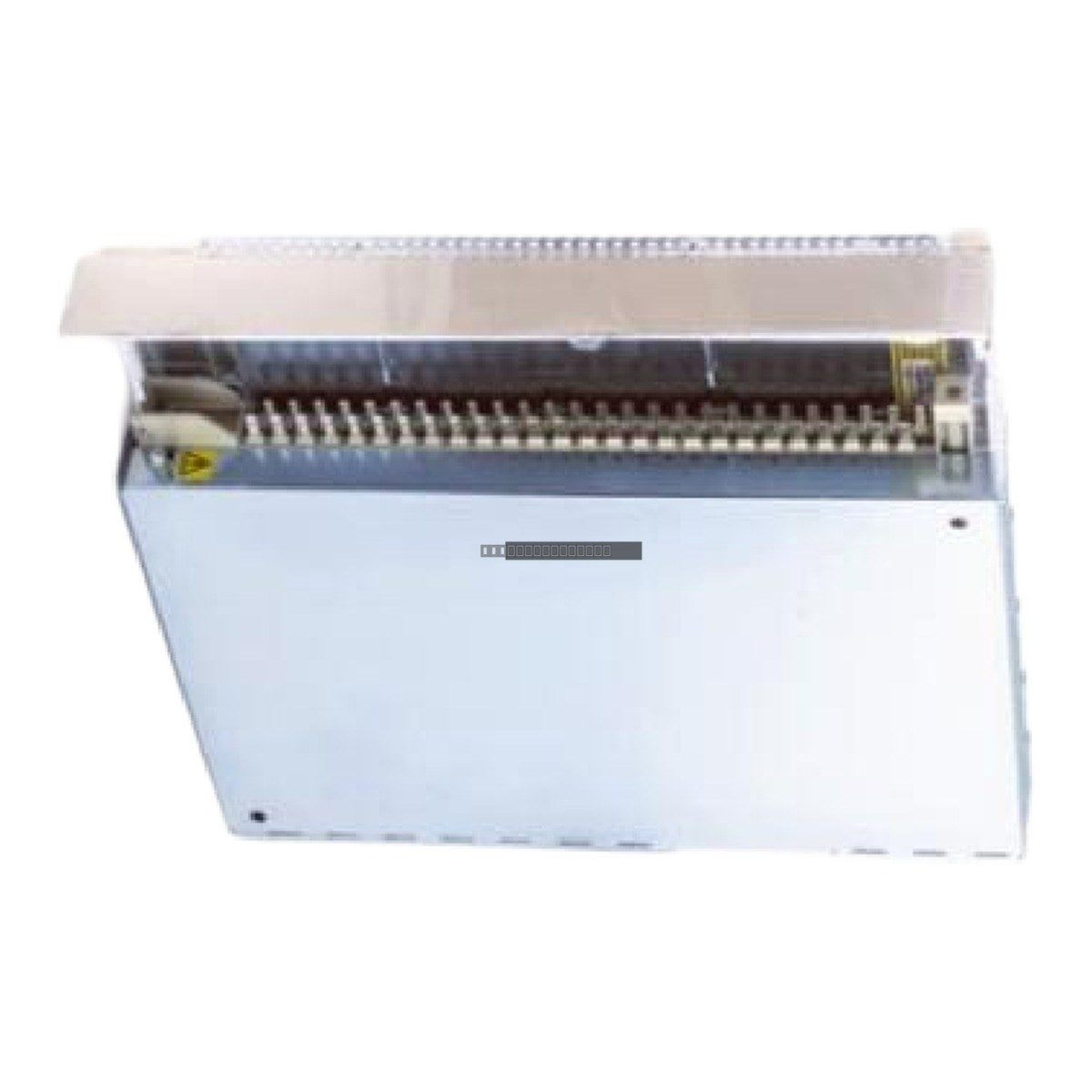

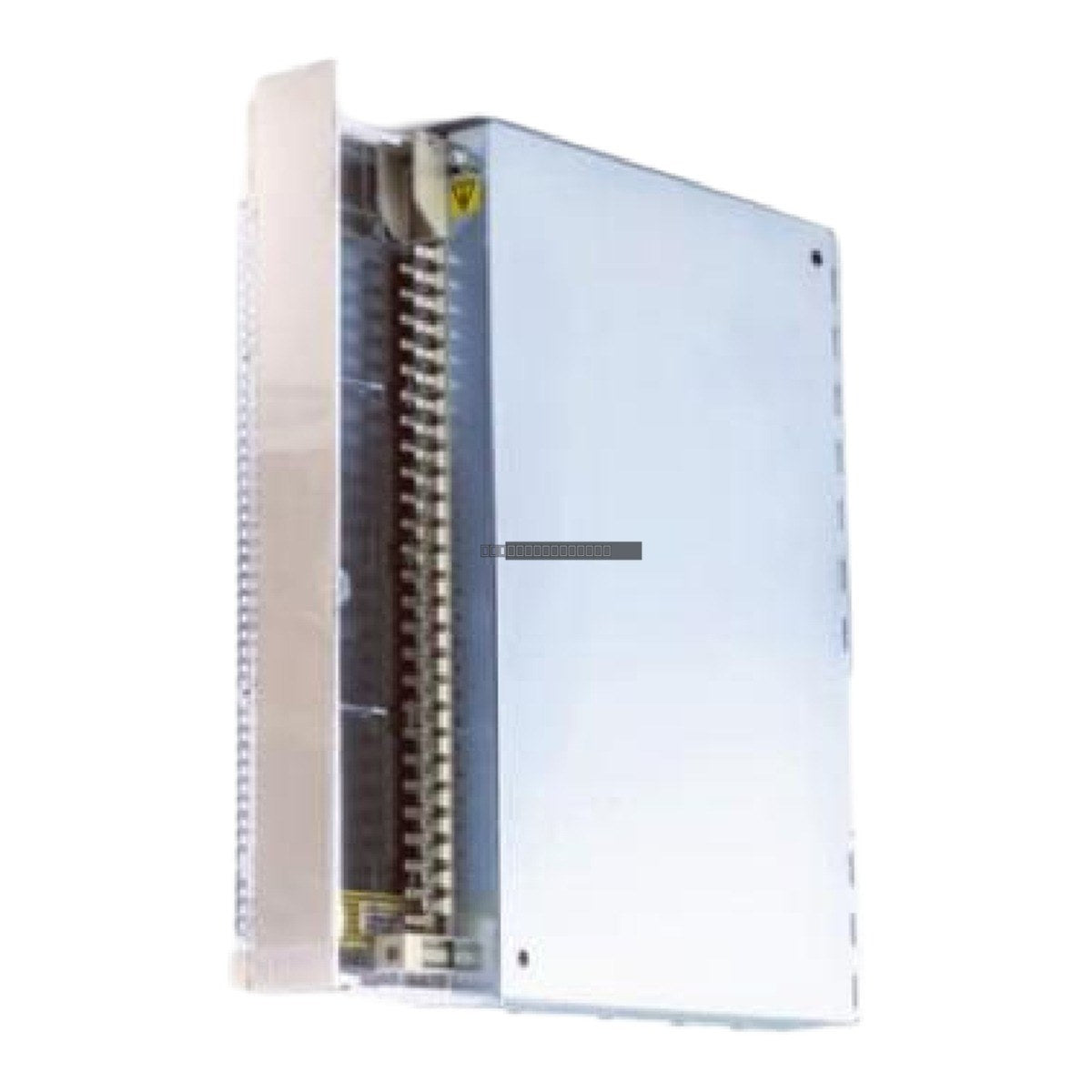

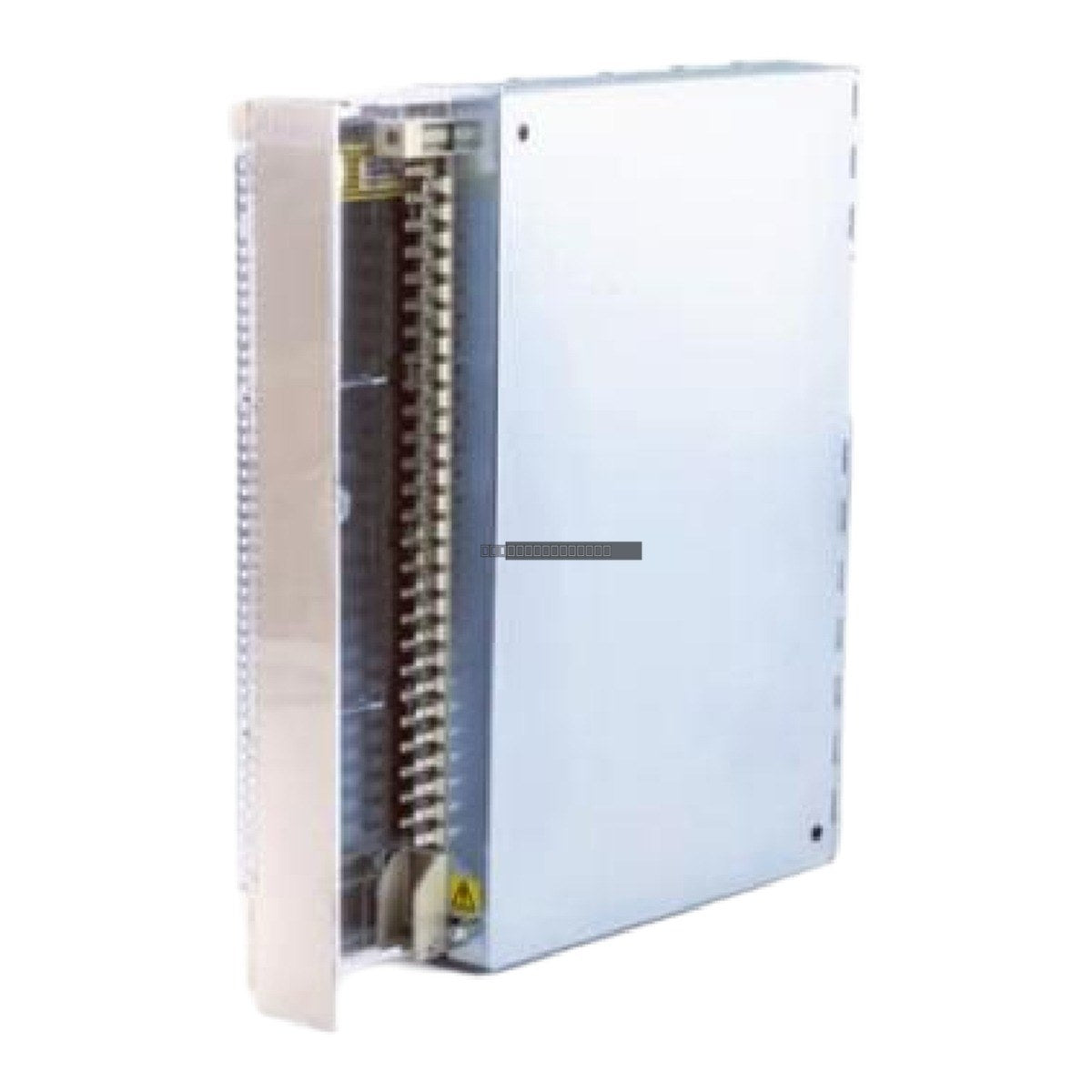

The ABB AI610 (3BHT300000R1) is a high-density analog input module designed for industrial control systems. This module provides 32 channels of analog input with 12-bit resolution, enabling precise monitoring and data acquisition for complex process automation applications. It is engineered for integration within ABB control environments, ensuring reliable signal processing and system compatibility.
Features
32 analog input channels for high-density signal monitoring.
12-bit resolution for accurate analog-to-digital conversion.
Designed for robust performance in industrial process control environments.
Compact modular design suitable for standard rack or cabinet mounting.
Applications
The AI610 module is typically utilized in distributed control systems (DCS) and PLC-based industrial automation architectures. It is suitable for monitoring various process variables, including pressure, temperature, flow, and level sensors that provide analog current or voltage signals.
Technical Specifications
Product ID
3BHT300000R1
Module Type
Analog Input Module
Channel Count
32 Channels
Resolution
12 Bit
Customs Tariff Number
85389091
WEEE Category
Small Equipment
Net Weight
1.21 kg
Installation Guidelines
Ensure the control system is powered down before inserting or removing the module from the rack.
Verify that the module is securely seated in the designated slot to ensure proper backplane communication.
Use shielded cabling for all analog input signals to minimize electromagnetic interference (EMI) and noise pickup.
Maintain proper grounding practices for signal cables to prevent ground loops and signal degradation.
Ensure adequate ventilation within the cabinet to maintain operating temperatures within specified limits.
Handle with care using ESD-safe procedures to prevent damage to sensitive electronic components.
FAQ
What is the primary function of the ABB AI610 module?
The AI610 is an analog input module that converts 32 analog signals into digital data for processing by the control system.
What is the resolution of the AI610 analog inputs?
The module features 12-bit resolution, providing sufficient precision for standard industrial process monitoring tasks.
