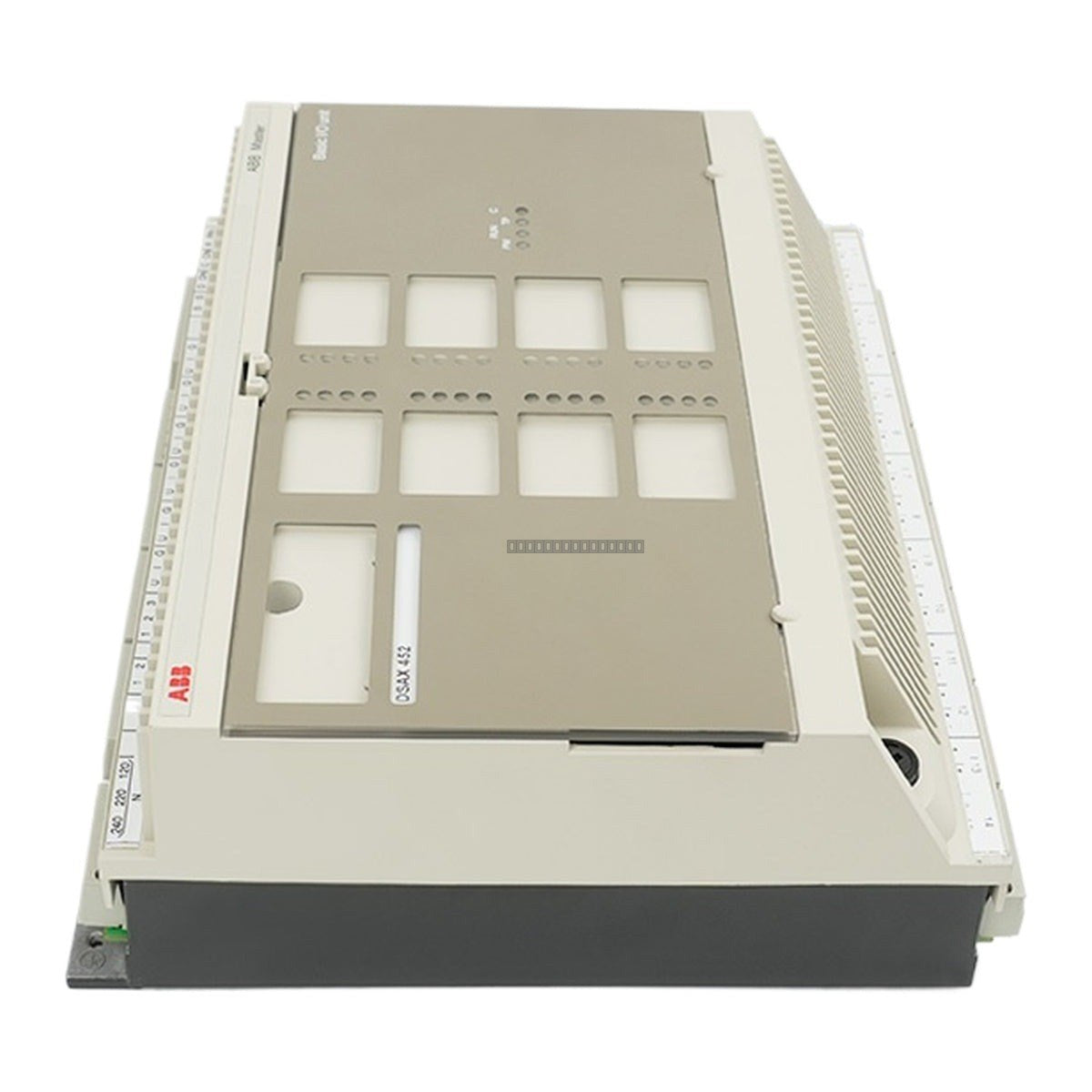

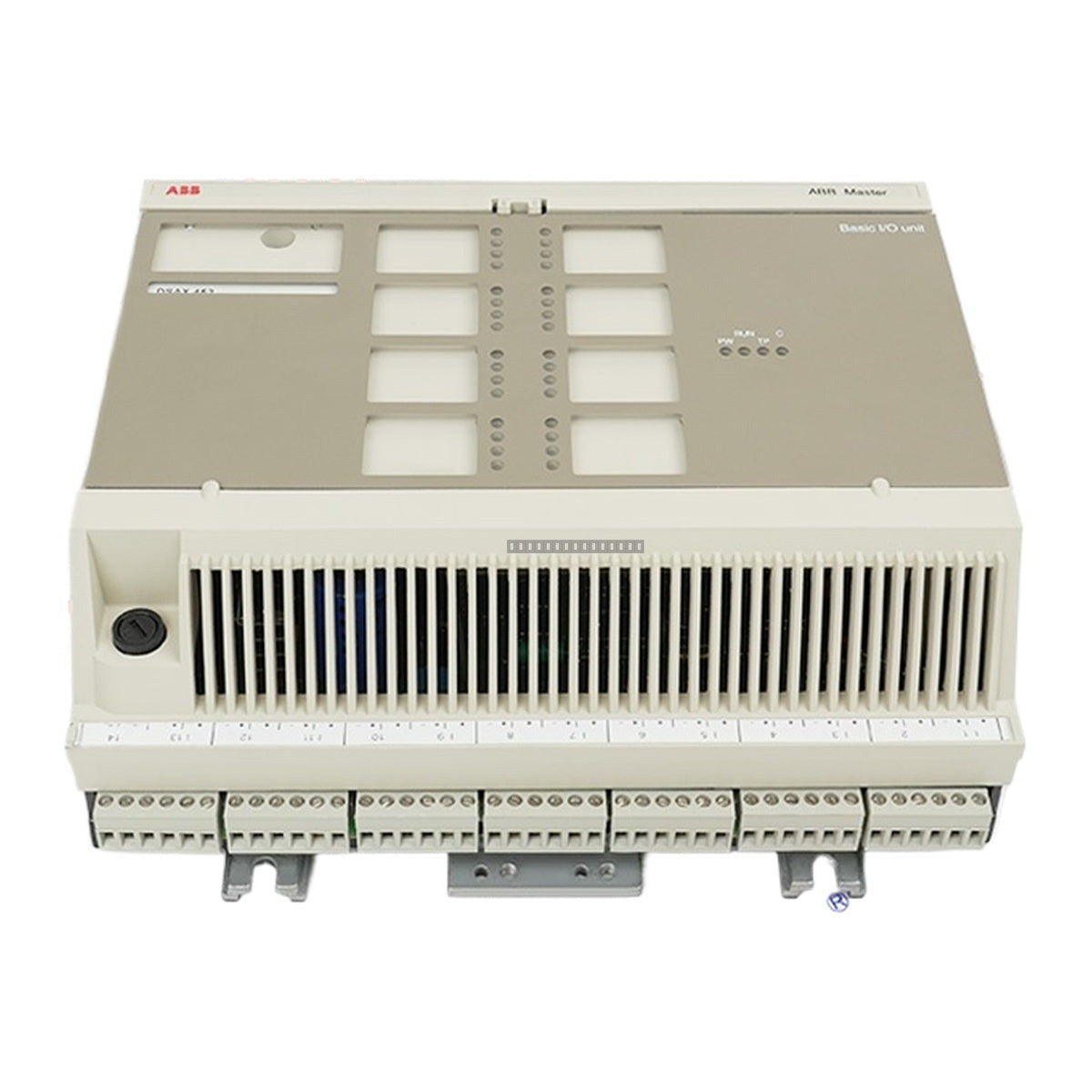

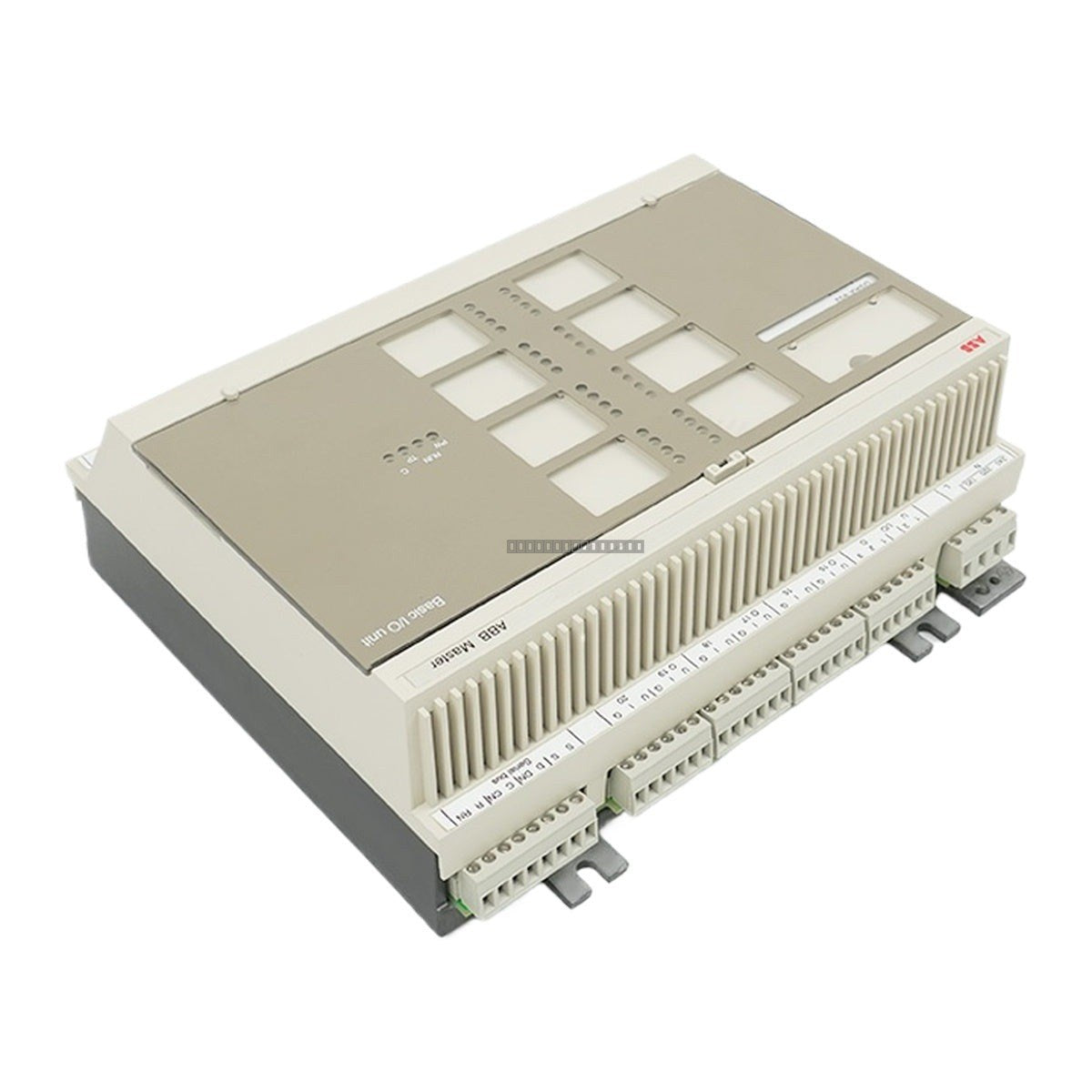

The ABB DSAX 452 (Order Code: 5712289-A) is a Remote I/O Basic Unit designed for the Advant S400 series industrial control systems. This module serves as a critical interface for distributed I/O, facilitating reliable signal processing and communication between field devices and the main controller. It is engineered for robust performance in demanding industrial environments, providing high-precision analog signal handling.
Features
Integrated Remote I/O functionality for Advant S400 systems.
High-resolution 16-bit analog signal processing.
Supports a wide range of operating temperatures from 0 degC to +60 degC.
Designed for high-density I/O configurations in distributed control architectures.
Robust construction suitable for industrial cabinet mounting.
Technical Specifications
Product Model
DSAX 452 5712289-A
Supply Voltage
24V DC
Power Consumption
8-15W
Analog Inputs
8 Channels
Resolution
16-bit
Accuracy
+/- 0.1% of span
Operating Temperature
0 degC to +60 degC
Storage Temperature
-40 degC to +70 degC
Humidity
5-95% RH non-condensing
Installation Guidelines
Ensure the control cabinet is properly grounded to prevent EMI interference.
Install the module in a clean, dry environment with adequate ventilation to maintain operating temperatures within the specified range.
Always power down the system before inserting or removing the module from the rack to prevent electrical damage.
Use shielded cables for analog signal connections to minimize noise and signal degradation.
Verify that the 24V DC power supply is stable and within the rated requirements before commissioning.
FAQ
What is the primary function of the DSAX 452?
The DSAX 452 acts as a remote I/O basic unit within the ABB Advant S400 system, responsible for collecting and processing analog signals from field instrumentation and transmitting them to the central controller.
Is this module compatible with other Advant series?
This module is specifically designed for the S400 I/O system. Please verify your system's hardware compatibility list or consult the original system documentation before installation.
