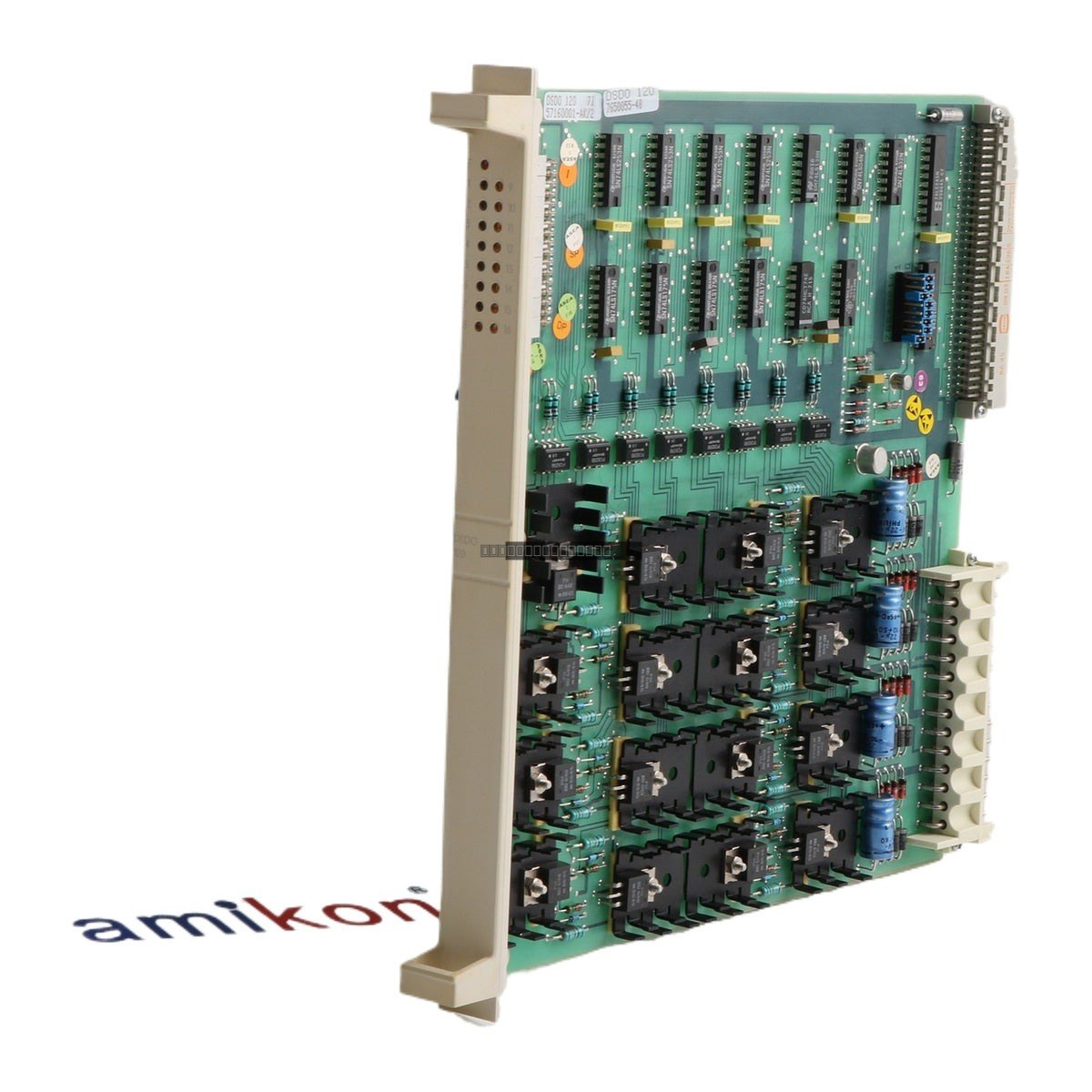

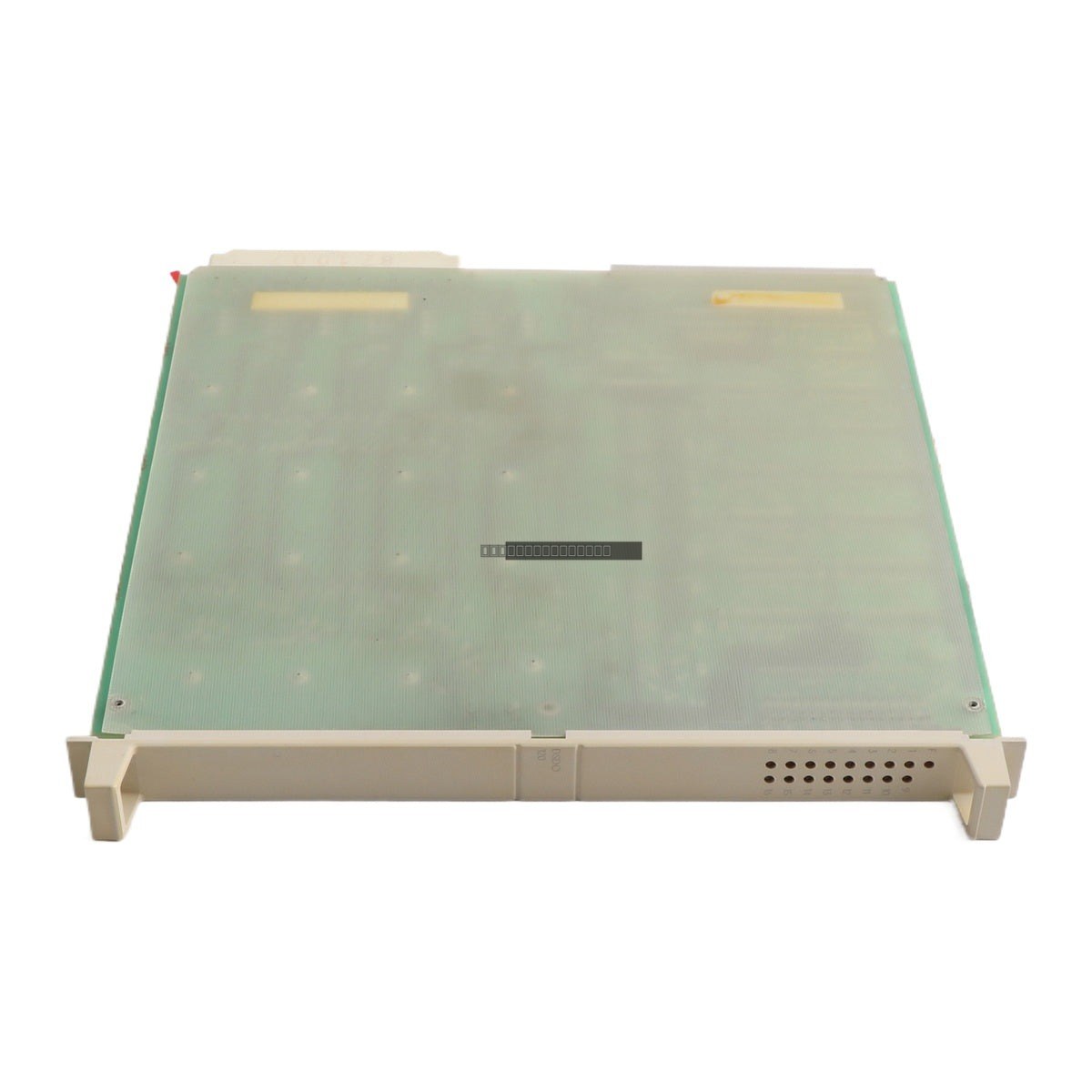

The ABB DSDO120 is a digital output module designed for the Advant S100 I/O system. This unit provides reliable switching capabilities for industrial control applications, supporting a voltage range of 24-48VDC with a current rating of 1A per channel. It is engineered to integrate seamlessly into existing Advant OCS or S100 I/O configurations, ensuring consistent performance in demanding automation environments.
Features
Designed for Advant S100 I/O system compatibility.
Supports 24-48VDC digital output switching.
Rated for 1A output current per channel.
Robust construction suitable for industrial control cabinets.
Direct replacement or spare for part number 57160001-AK.
Technical Specifications
Model
DSDO120
Spare Part Number
57160001-AK
Manufacturer
ABB
Output Voltage
24-48VDC
Output Current
1A
System Compatibility
Advant S100 I/O
Weight
0.44 kg
Installation Guidelines
Ensure the control system power is disconnected before installing or removing the module to prevent electrical damage.
Verify that the module is correctly seated in the S100 I/O rack backplane to ensure proper signal and power connectivity.
Use appropriate ESD protection when handling the module to prevent damage to internal electronic components.
Route signal wiring away from high-voltage cables and sources of electromagnetic interference (EMI) to maintain signal integrity.
Ensure adequate ventilation in the cabinet to maintain operating temperatures within the manufacturer's specified limits.
FAQ
What is the primary function of the DSDO120? The DSDO120 is a digital output module used to interface the Advant S100 I/O system with field devices, allowing the controller to switch 24-48VDC loads.
Is this module compatible with other I/O systems? The DSDO120 is specifically designed for the ABB Advant S100 I/O architecture. It is not intended for use in non-compatible PLC or DCS platforms.
What does the spare part number 57160001-AK indicate? This is an alternative identification code associated with the DSDO120 module, often used for inventory tracking and cross-referencing within ABB documentation.
