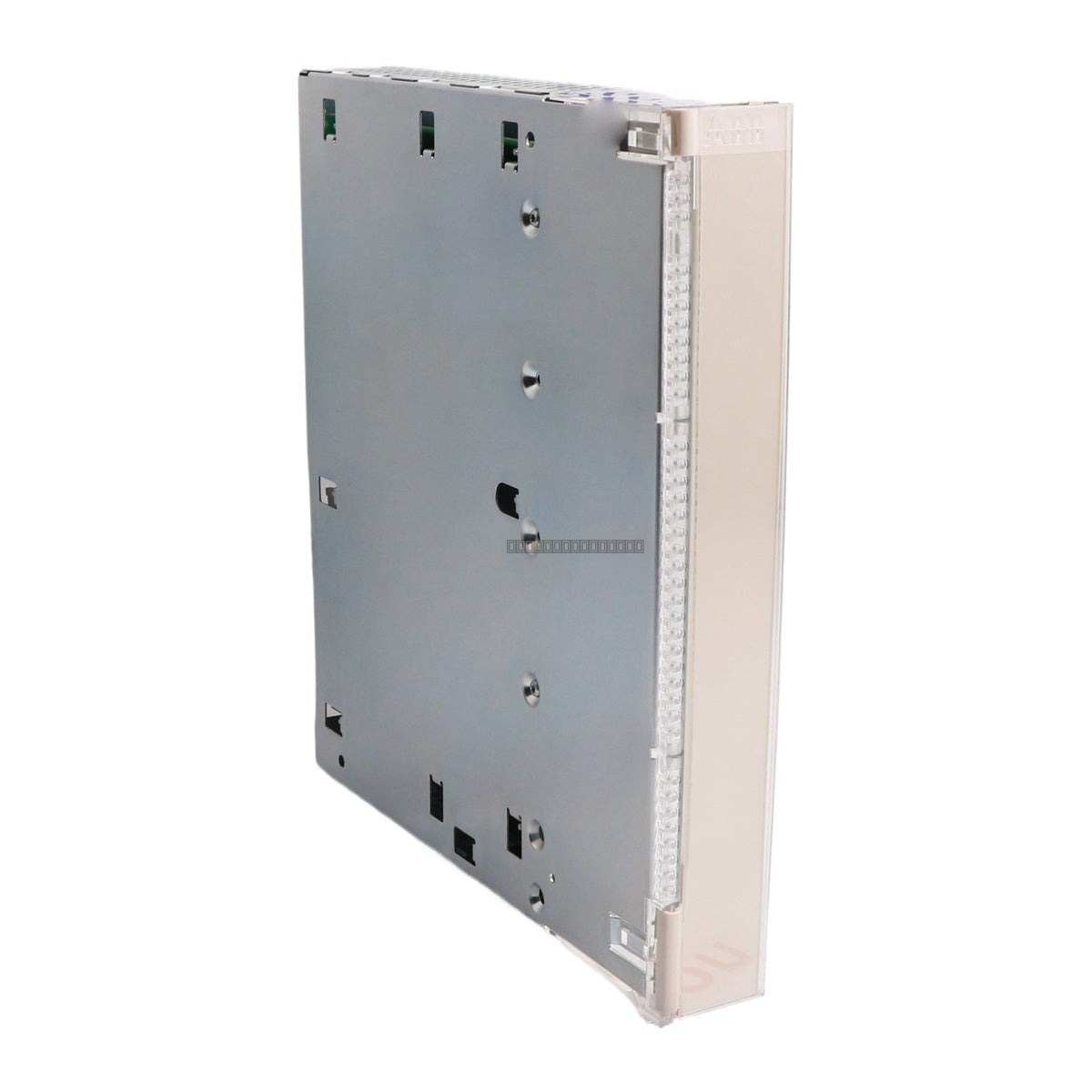

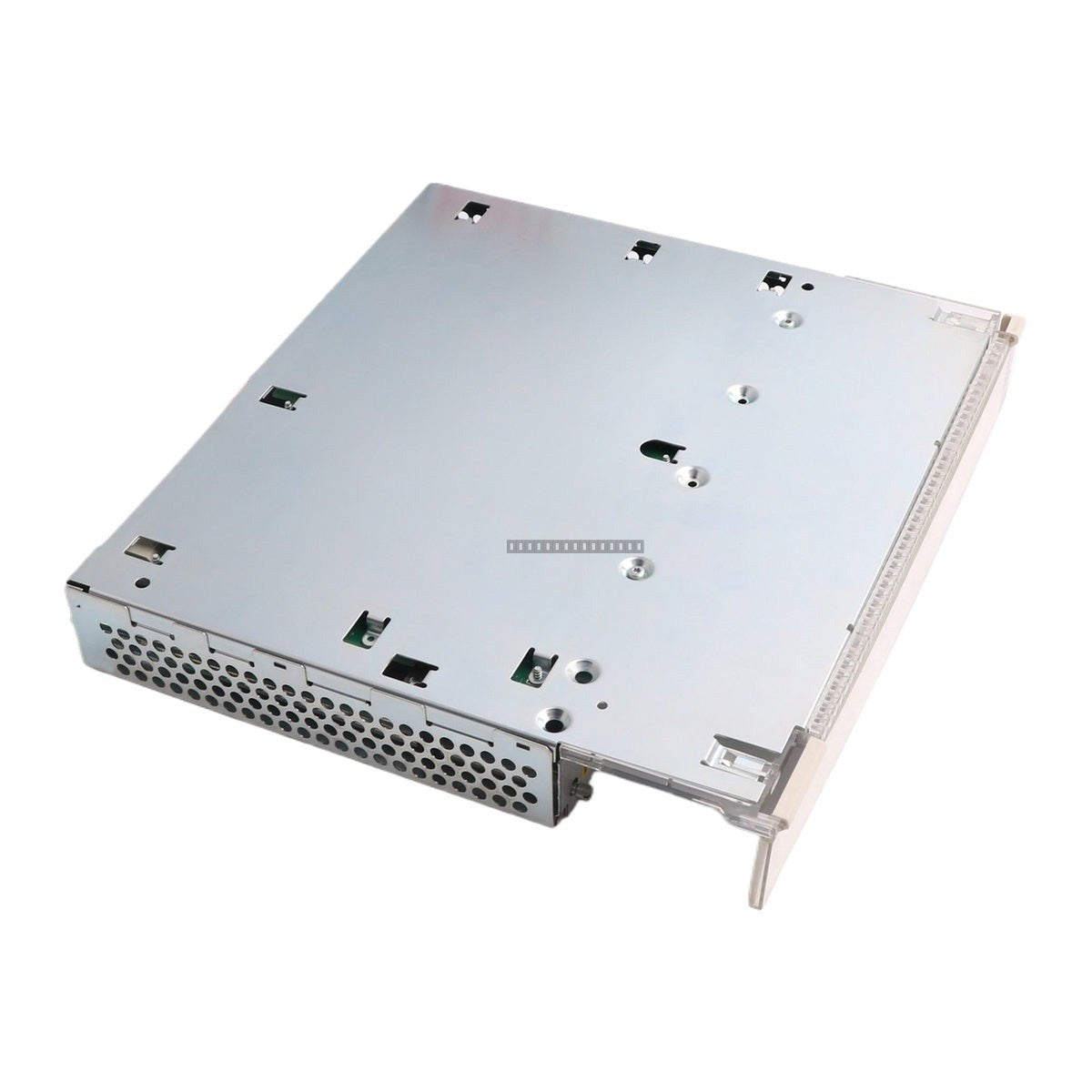

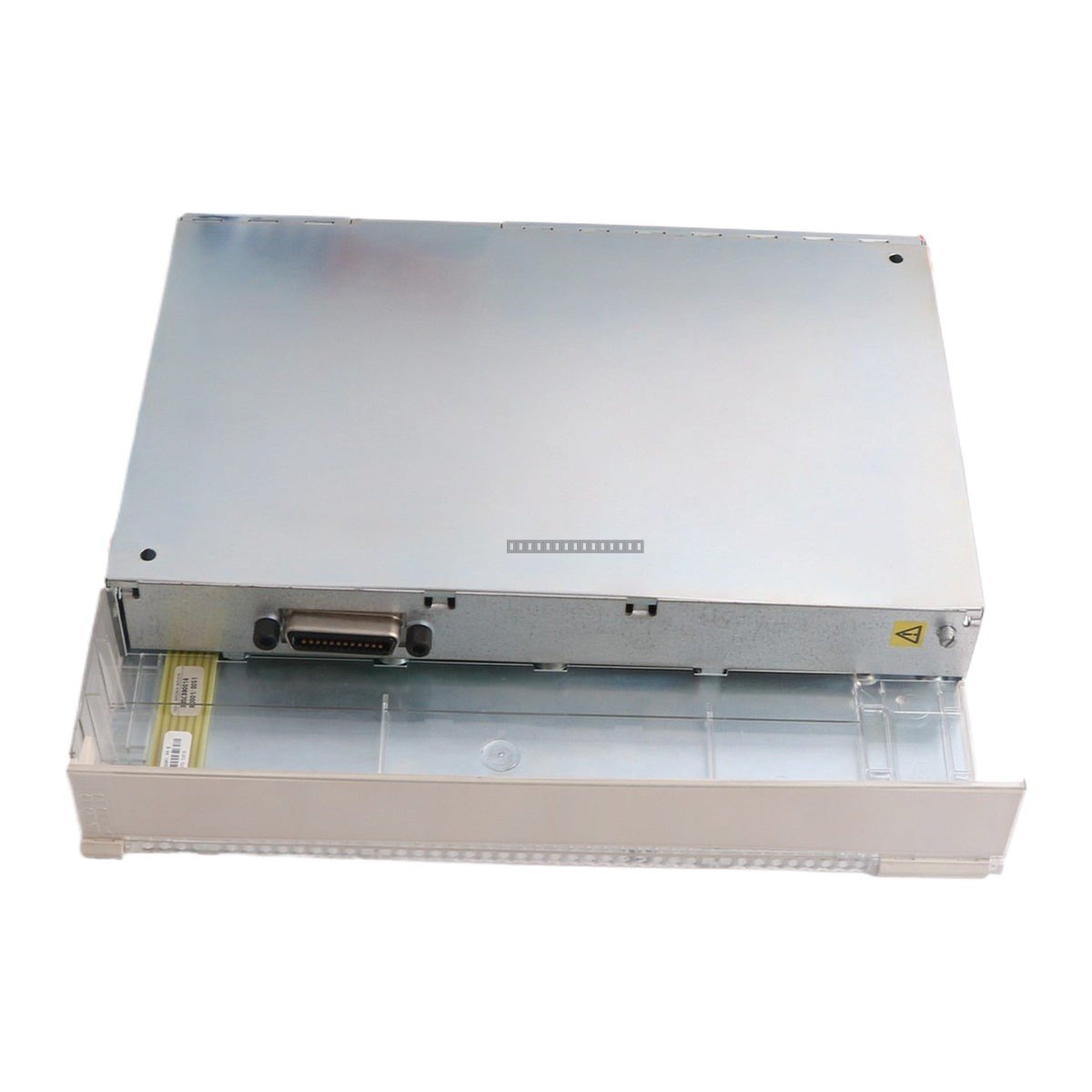

The ABB CI610 is an I/O Bus Extender module designed for use within the Advant OCS and Advant 800xA control system environments. This module facilitates the extension of the I/O bus, allowing for flexible configuration and expanded connectivity in distributed control architectures.
Features
Designed for Advant OCS and Advant 800xA system integration.
Provides reliable I/O bus extension capabilities.
Robust industrial construction for demanding control room environments.
Original ABB spare part, identified by order code 3BHT300003R1.
Applications
The CI610 is primarily utilized in industrial automation systems where physical distance between the controller and I/O racks requires bus extension. It is commonly found in power generation, chemical processing, and large-scale manufacturing control systems utilizing the Advant platform.
Technical Specifications
Manufacturer
ABB
Model
CI610
Part Number
3BHT300003R1
Product Type
I/O Bus Extender
Weight
1.16 kg
Tariff Code
8517620050
Installation Guidelines
Ensure the control system is powered down before installing or removing the CI610 module to prevent electrical damage.
Verify that the module is properly seated in the designated rack slot to ensure reliable backplane communication.
Maintain proper grounding practices for the rack and cabinet to minimize electromagnetic interference (EMI).
Ensure adequate ventilation around the module to prevent overheating during continuous operation.
Handle with care to avoid electrostatic discharge (ESD) damage to the internal circuitry.
FAQ
Is the ABB CI610 still in production?
No, the CI610 has been discontinued by the manufacturer. We provide this unit as a spare part for legacy system maintenance and support.
What systems is the CI610 compatible with?
The CI610 is specifically designed for integration with ABB Advant OCS and Advant 800xA control systems.
