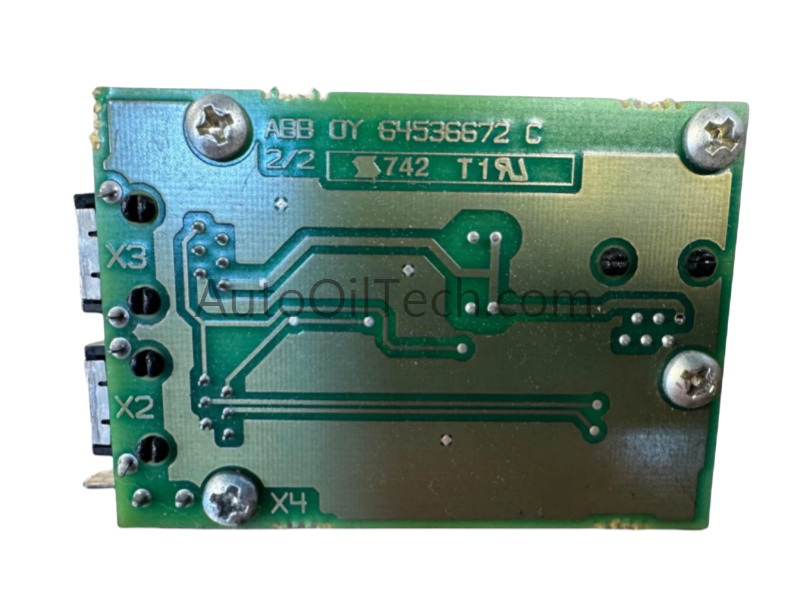

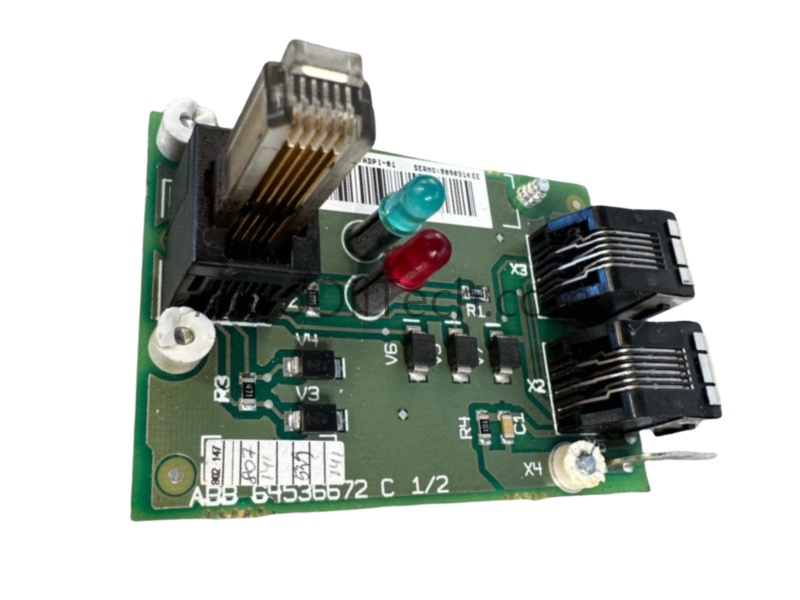

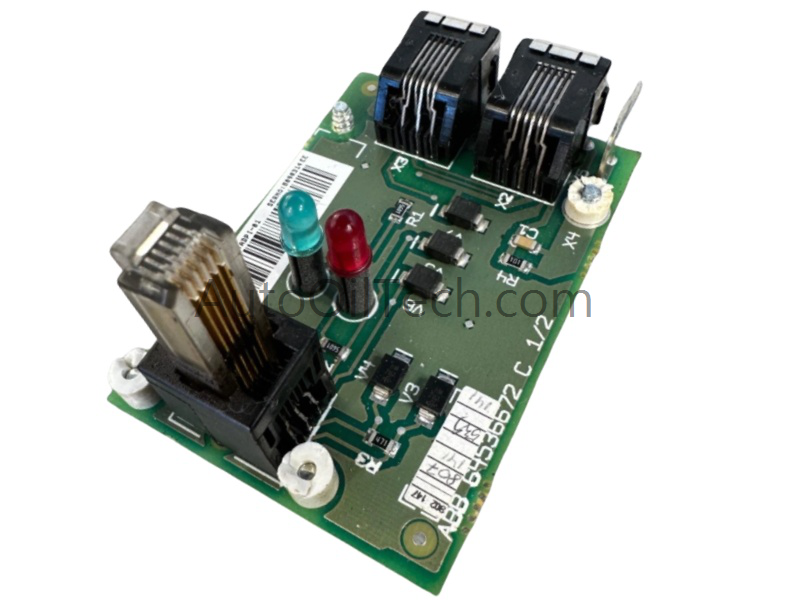

The ABB ADPI-01 Panel Interface is a robust interface board designed for seamless integration into ACS800 drive systems and distributed control system (DCS) environments. Built in Sweden, this module ensures reliable communication and signal handling across demanding industrial applications such as power generation, oil & gas, chemical processing, and advanced manufacturing.
Key Technical Specifications
Model / Part Number:ADPI-01
Manufacturer: ABB
Product Type: Panel Interface Module
Product Family: ACS800 / ABB DCS systems
System Compatibility: Distributed Control Systems (DCS)
Power Supply: 24V DC (18–30V DC ±10%)
Power Consumption: 15W typical
Isolation: 500V AC between ports and power
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Humidity Range: 5–95% RH, non‑condensing
Dimensions: 2 × 25 × 24.5 cm
Weight: 0.34 kg
Country of Origin: Sweden
HS Code: 8537101190
Minimum Order Quantity: 1 unit
Condition: Brand New
Availability: In stock
Lifecycle Status: Active
Communication: Ethernet diagnostics/configuration (not a router)
Functional Highlights
Provides stable communication and signal handling for ACS800 systems.
Compact design for easy installation in tight control cabinets.
Energy‑efficient operation with low power consumption.
Rugged construction ensures reliability in harsh industrial environments.
Compatible with ABB DCS and third‑party systems like DeltaV™.
Applications
Power generation and energy management systems.
Oil & gas and chemical processing plants.
Advanced manufacturing and automation systems.
Retrofit and expansion of ABB ACS800 drive installations.
FAQ
Q: What power input does the ADPI‑01 support? A: 24V DC, with an input range of 18–30V DC (±10%).
Q: Is this product discontinued? A: No, it is active and available.
Q: Can the ADPI‑01 be used outside ABB systems? A: Yes, it can integrate with third‑party systems such as DeltaV™.
Q: What safety features are included? A: 500V AC isolation between ports and power for electrical protection.
