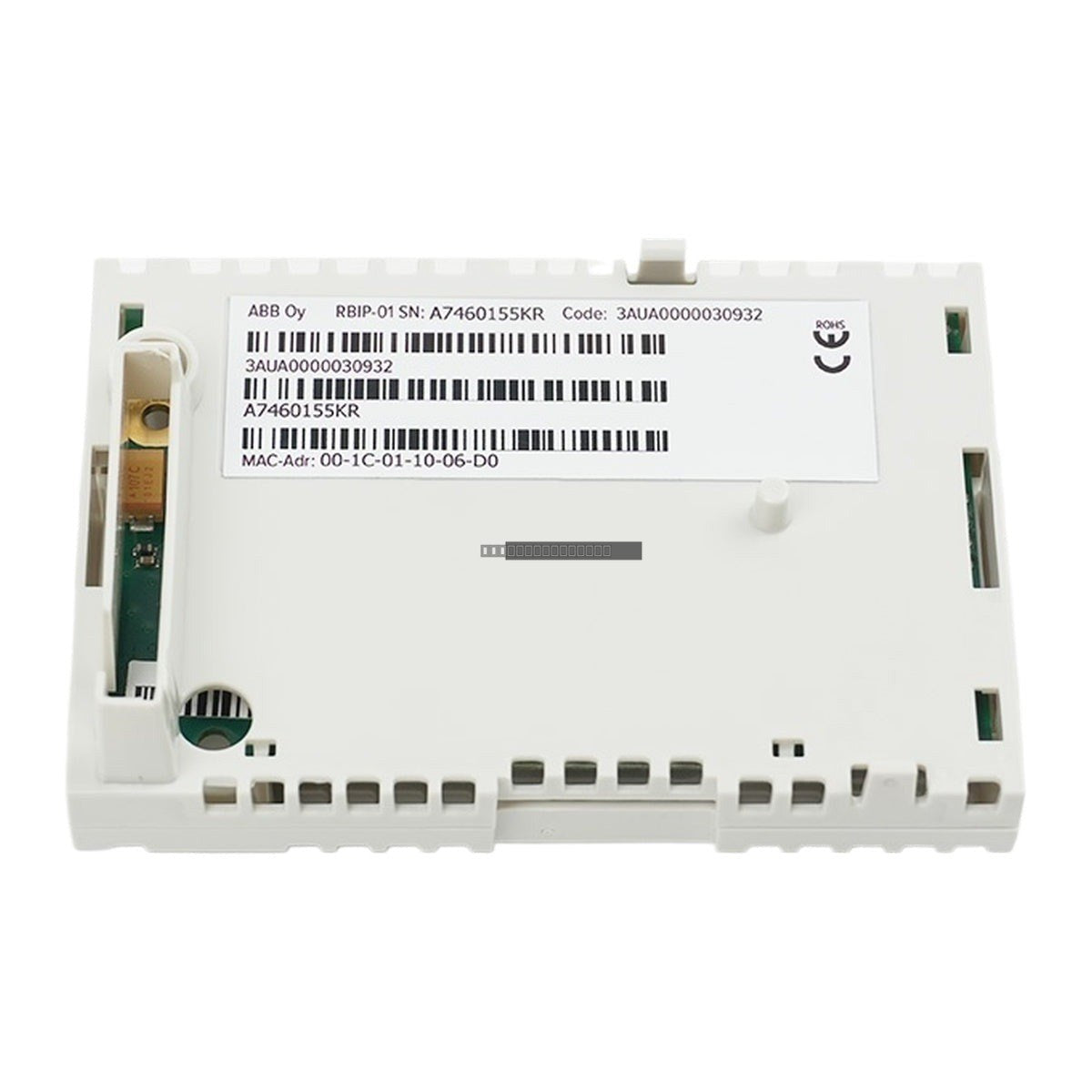

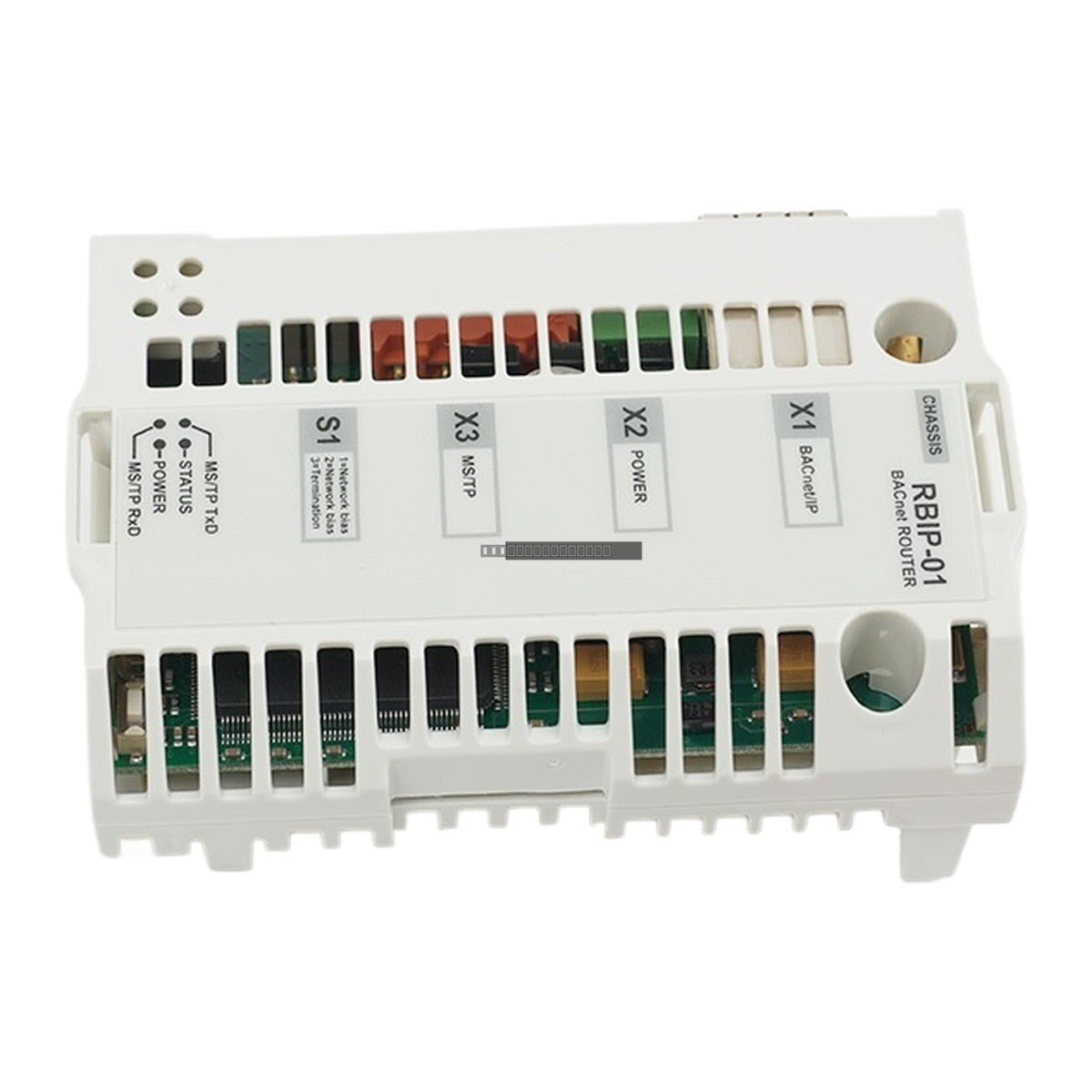

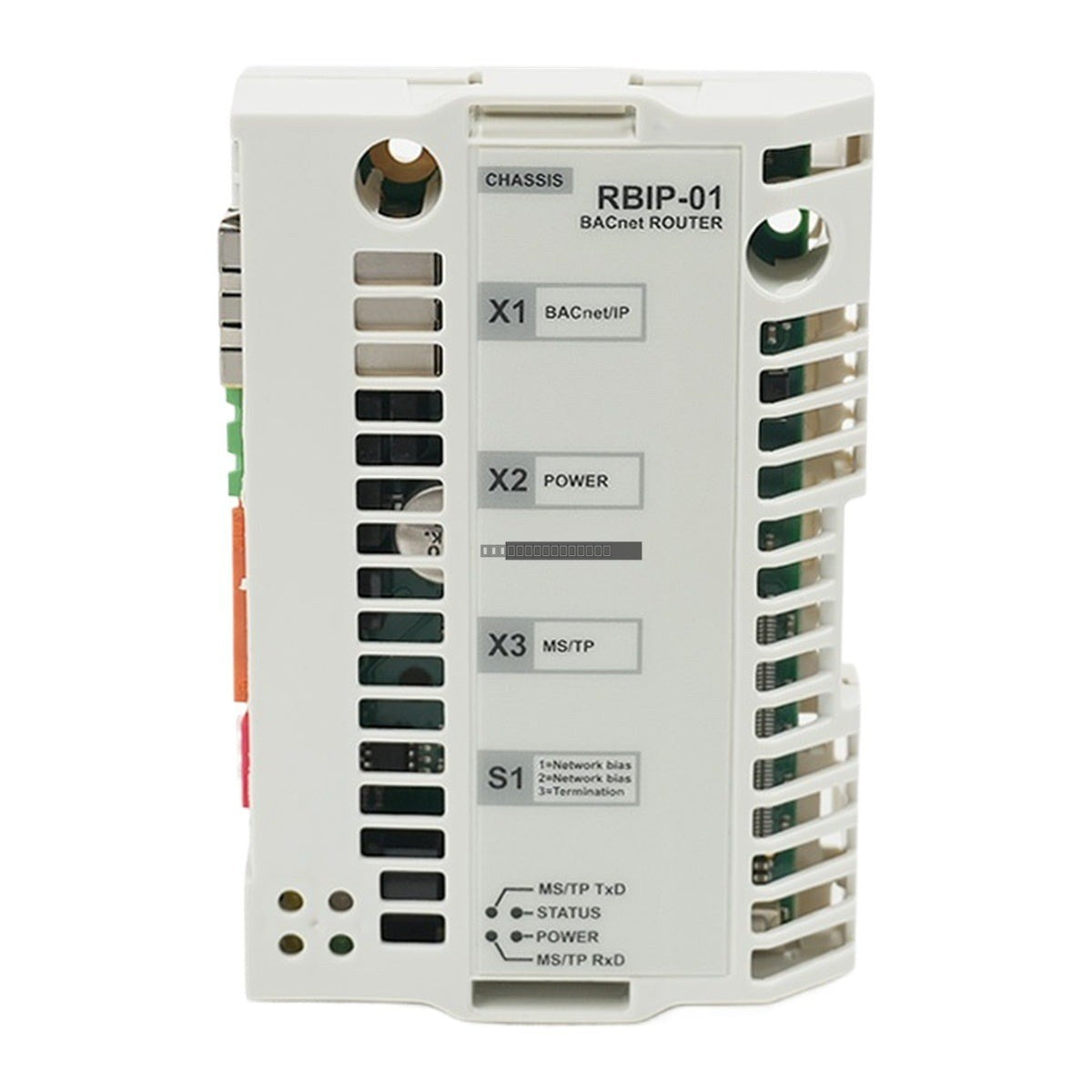

The ABB RBIP-01 (3AUA0000030932) is a high-performance BACnet/IP Router Module designed to provide seamless connectivity for ABB ACH550 HVAC drives. This module functions as a bridge between BACnet/IP (Ethernet) and BACnet MS/TP (RS-485) networks, allowing building management systems to monitor and control drive parameters without the need for external gateways. It is a snap-on module that installs directly into the drive housing, offering a compact and integrated communication solution.
Features
Designed for ABB ACH550 HVAC drive series
Supports BACnet/IP to BACnet MS/TP routing
Integrated web server for configuration and diagnostics
10/100 Mbps Ethernet transfer rate
EIA-485 serial port for MS/TP communication
Snap-on mounting for internal drive installation
Applications
Air Handling Units (AHUs): Fan speed control and ventilation management
Pumping Stations: Fluid movement control and energy monitoring
Compressors and Chillers: HVAC refrigeration cycle management
Industrial Automation: Integration of frequency converters into larger building management systems
Technical Specifications
Model
RBIP-01
Order Code
3AUA0000030932
Manufacturer
ABB
Power Supply
12...26 V DC / AC, 200 mA
Ethernet Speed
10/100 Mbps
Serial Port
1 x EIA-485 (BACnet MS/TP)
Operating Temperature
0 to 45 degC (32 to 113 degF)
Operating Humidity
20 to 80% relative humidity
Tariff Code
8537101190
Installation Guidelines
Safety Warning: Always switch off mains power and wait at least 5 minutes for the drive's intermediate circuit capacitors to discharge before installing or removing the module.
Mounting: The module is designed for snap-on installation inside the compatible ABB drive. Ensure the module is firmly seated in the designated slot.
Wiring: Use the provided 2-pin connector for power supply and the 4-pin connector for EIA-485 (B+, A-, AGND, Shield) connections.
Configuration: Use the internal web server via a standard web browser to configure IP addresses and routing parameters (BBMD or Foreign Device).
Status Indicators: Solid green indicates correct power; Ethernet link/activity is indicated by flashing or solid green on the RJ-45 port.
FAQs
What is the primary function of the RBIP-01?
The RBIP-01 acts as a BACnet router, enabling communication between Ethernet-based BACnet/IP networks and serial-based BACnet MS/TP networks for ABB ACH550 drives.
Is this module compatible with older ACH550 drives?
Yes, the RBIP-01 is compatible with all ABB ACH550 standard drives for HVAC, including older product generations.
How do I access the module settings?
The module features an internal web server that can be accessed via a standard web browser once connected to the Ethernet network to set IP addresses and view diagnostic logs.
